42089201TH Rev.4 100 /
Oki Data CONFIDENTIAL

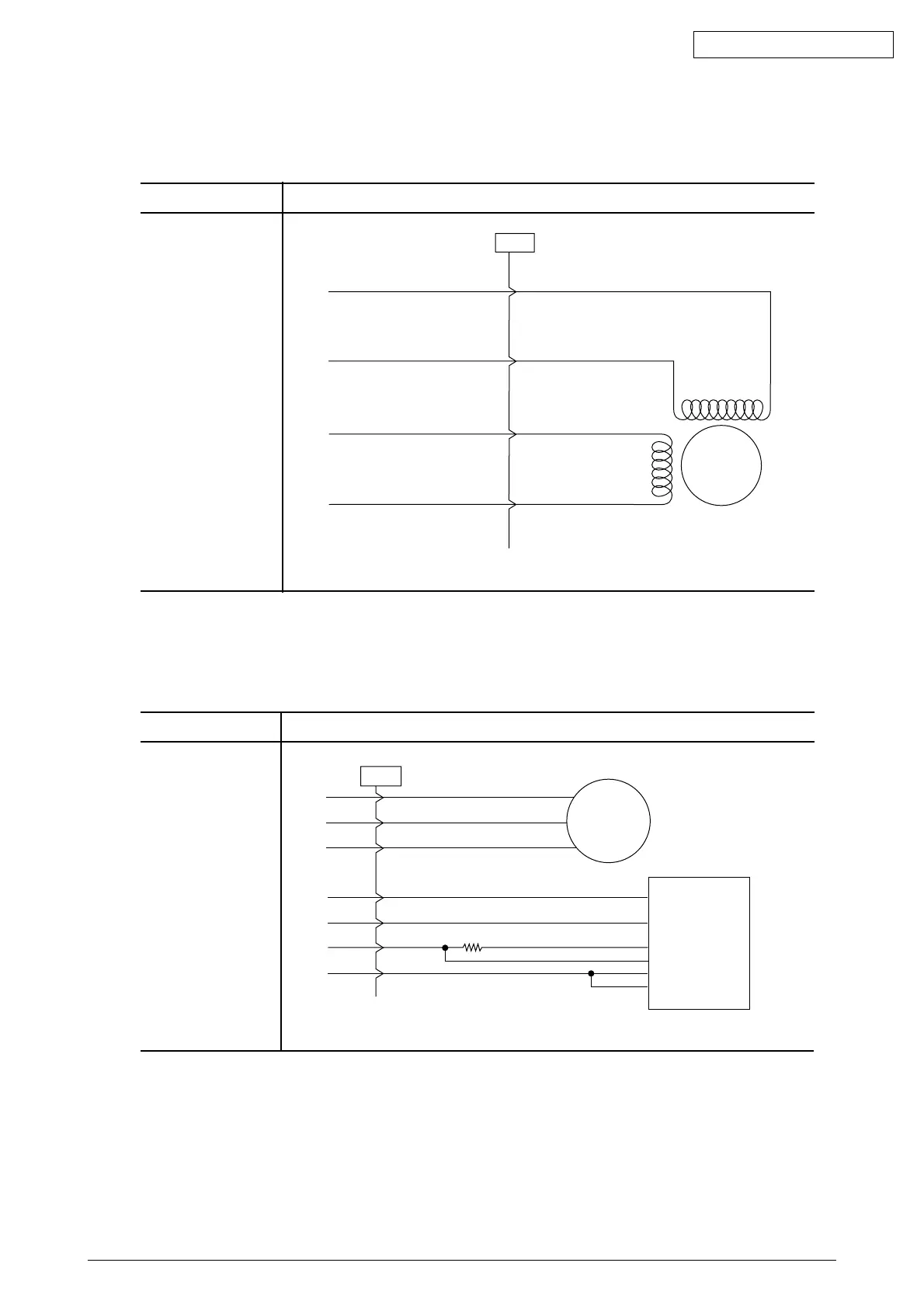

(2) Line Feed Motor
Resistance of each coil should be about 10.4Ω.
Signal Connector pin number
A1
A2
B1
B2
CN4
1
2
3
4
LF
motor
(3) Space Motor
Resistance of each coil should be about 18.4Ω.
Signal Connector pin number
SP-U
SP-V
SP-W
SPA
SPB
+5V
EL
CN2
SP
Motor
φA
φB
DA
Vcc
DK
G
200Ω
18
17
6
22
21
19
20
R1
