Oki Microline 3321 Maintenance Manual

42089201TH Rev.4 56 /
Oki Data CONFIDENTIAL

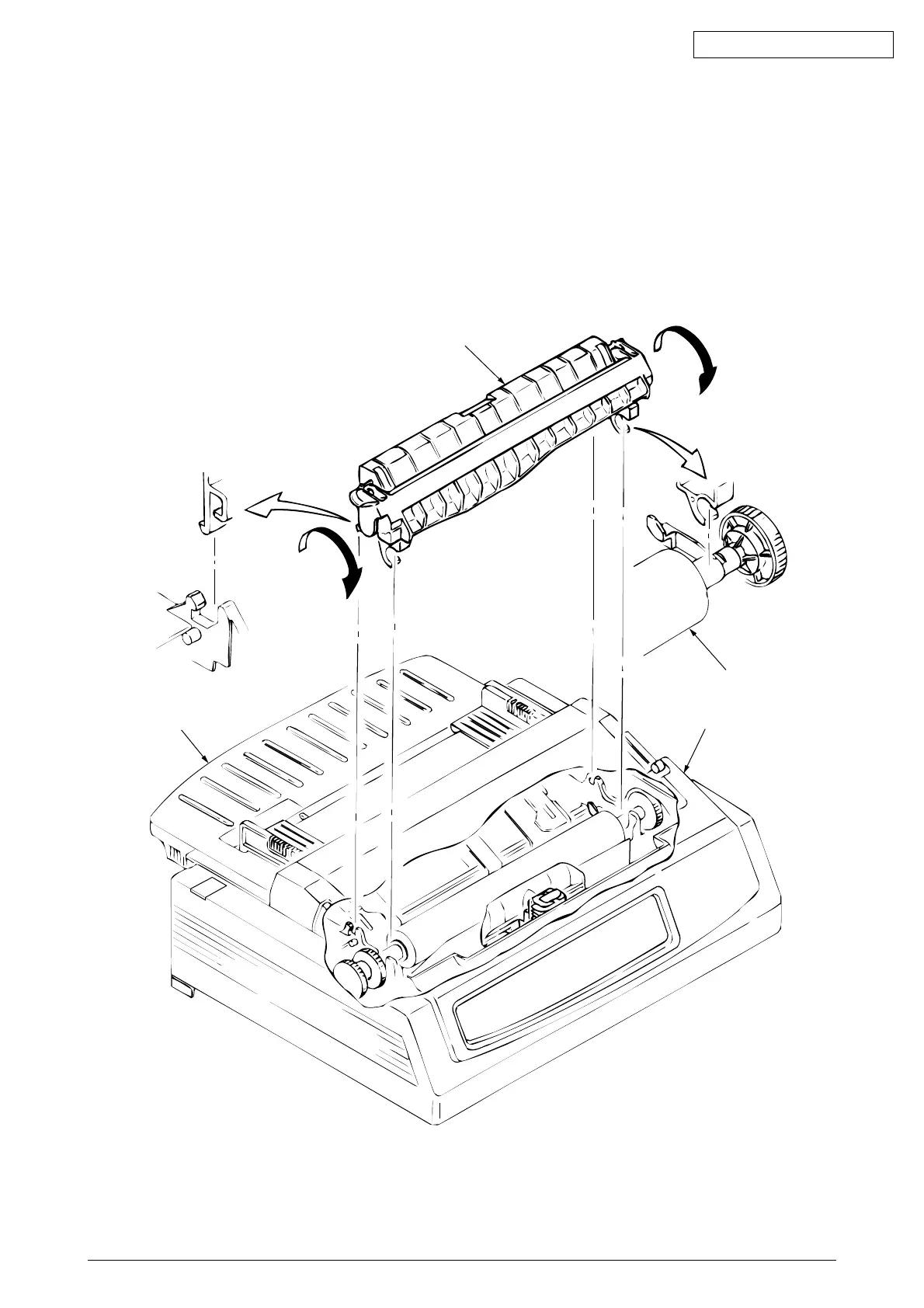

3.3.3 Pull-up Roller Assy
(1) Open the access cover 1.
(2) Lift up the sheet guide Assy 4 to remove.
(3) Tilting the pull-up roller Assy 2 toward the front, remove from the shaft of platen Assy
3.
(4) To install, follow the removal steps in the reverse order.
Note: Remove the sheet guide Assy 4 before installing or removing the pull-up roller Assy
2.
3
1
2
4
