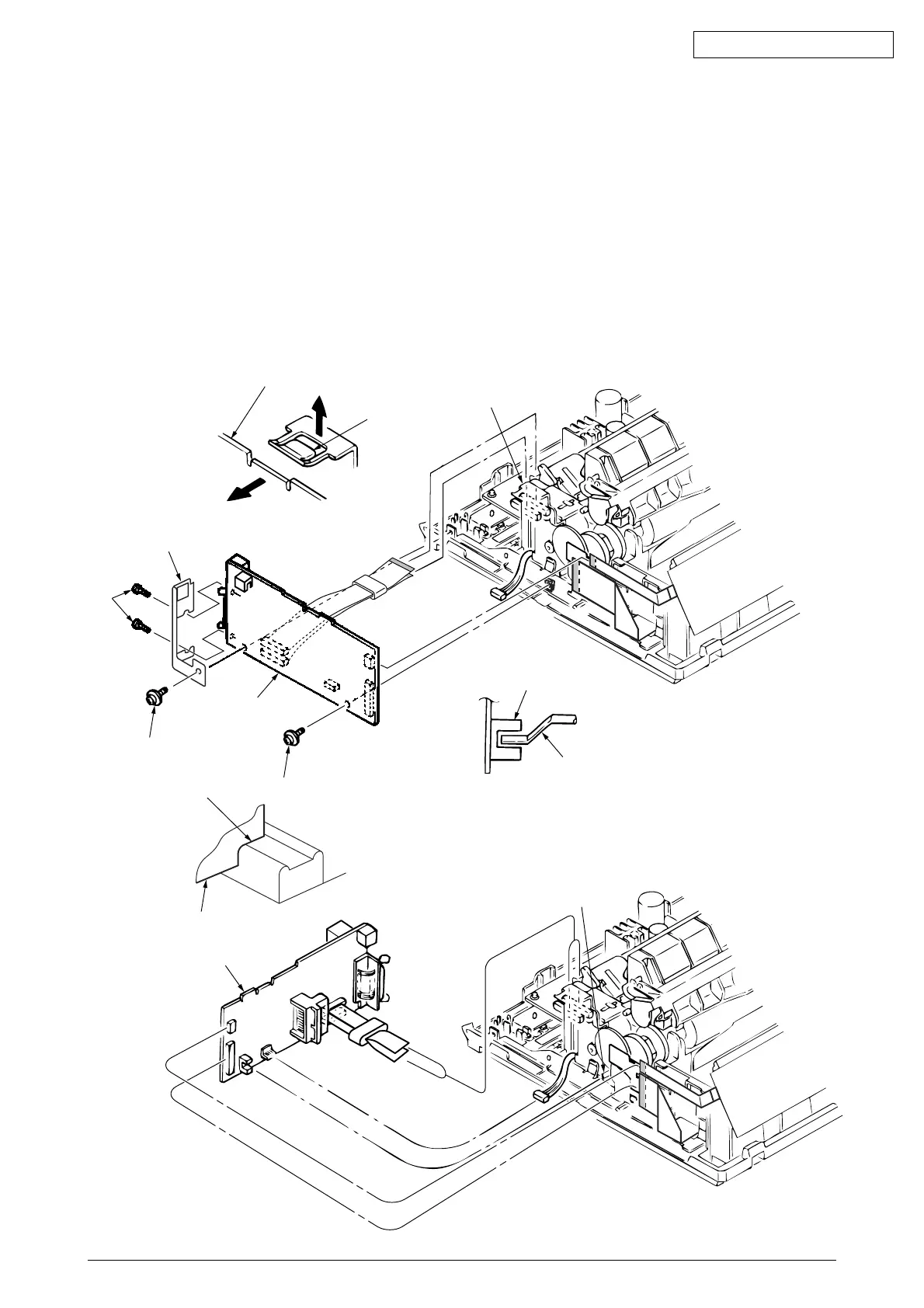

3.3.12.1 Driver Board (DVE/DVF) (at USB Ver.)
(1) Remove the upper cover (see 3.3.4 (1) – (5)).
(2) Remove two screws 1 and remove two screws 5, and release the driver board 2 and
Plate I/F 6 by lifting clamp 4.
(3) Disconnect all cables from driver board 2.
(4) To install, follow the removal steps in the reverse order.
Note on installation:
(1) Insert one sensor lever 3 between sensor when installing the driver board 2.
(2) Butt and attach the drive board 2 to the E sections (2 places) of the convex of the main
chassis.
2
4
4
2
2
6
1
1
3
3
Sensor
Butt to E sections
(2 places)
5
2
