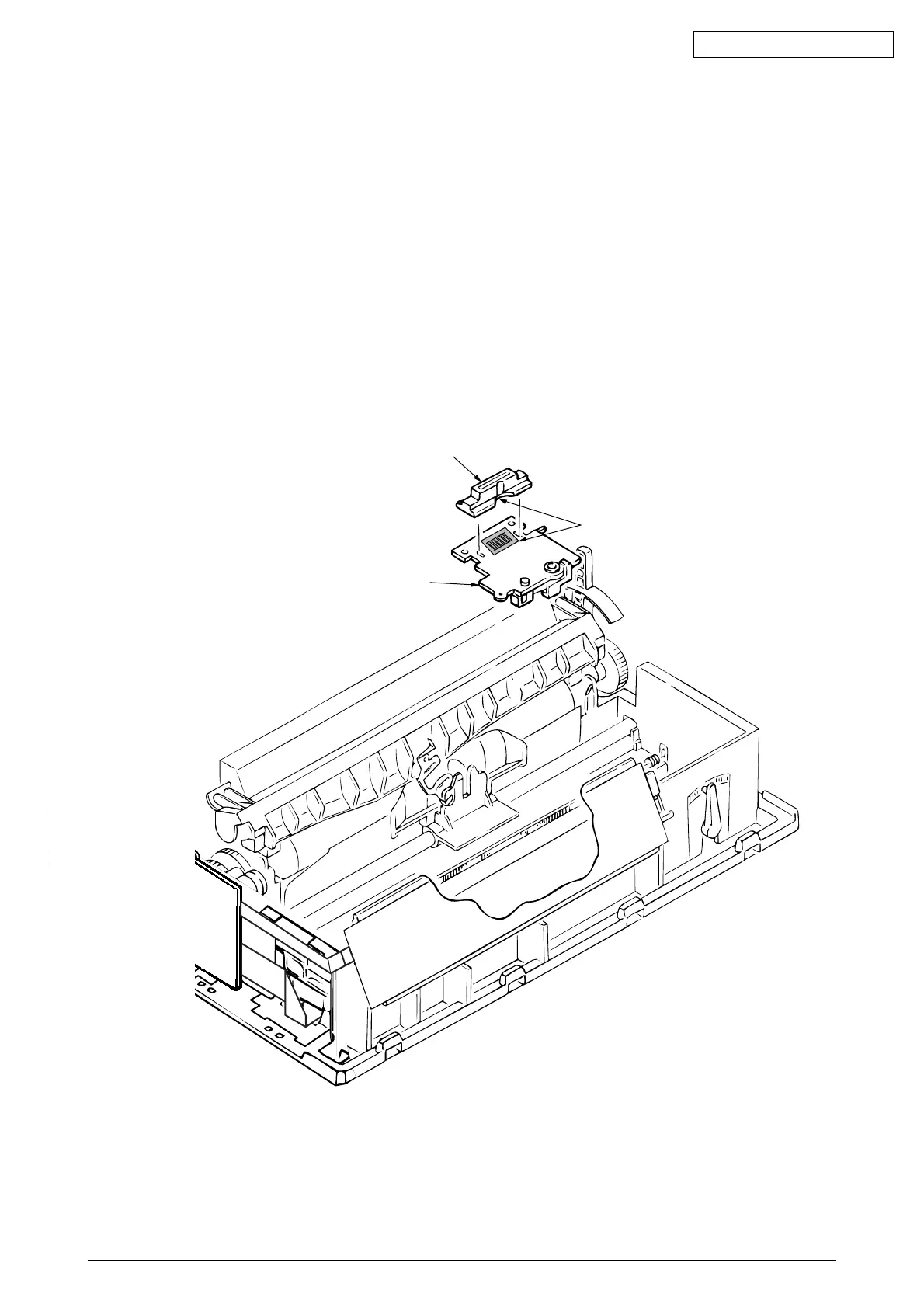

3.3.6 PC Connector
(1) Remove the printhead (see 3.3.1).
(2) Remove the upper cover (see 3.3.4 (1) – (5)).
(3) Remove the gear case Assy (see 3.3.5).
(4) Remove the PC connector 1 from the space motor Assy 2.
(5) To install, follow the removal steps in the reverse order.
Note on installation:
(1) Do not touch the space motor 2 or terminals of PC connector 1. Also, take care to avoid
dust or foreign matters.
(2) After installation, check and adjust the gap between platen and printhead (see 4-1).
(3) Make sure that there is not any dust or oil on the connector contact section A. If it is
found, wipe it off by alcohol.
A
(rear side)
1
2
