Oki Microline 3321 Maintenance Manual

42089201TH Rev.4 52 /
Oki Data CONFIDENTIAL
A
B
C
D
Control/Power
supply board
Upper cover assy
Transformer assy
Operation panel board
Printhead
Printer unit
Driver board
3.3 Disassembly/Reassembly Procedure
This section explains the assembly replacement procedures according to the following disas-
sembly system.
[Parts Layout]

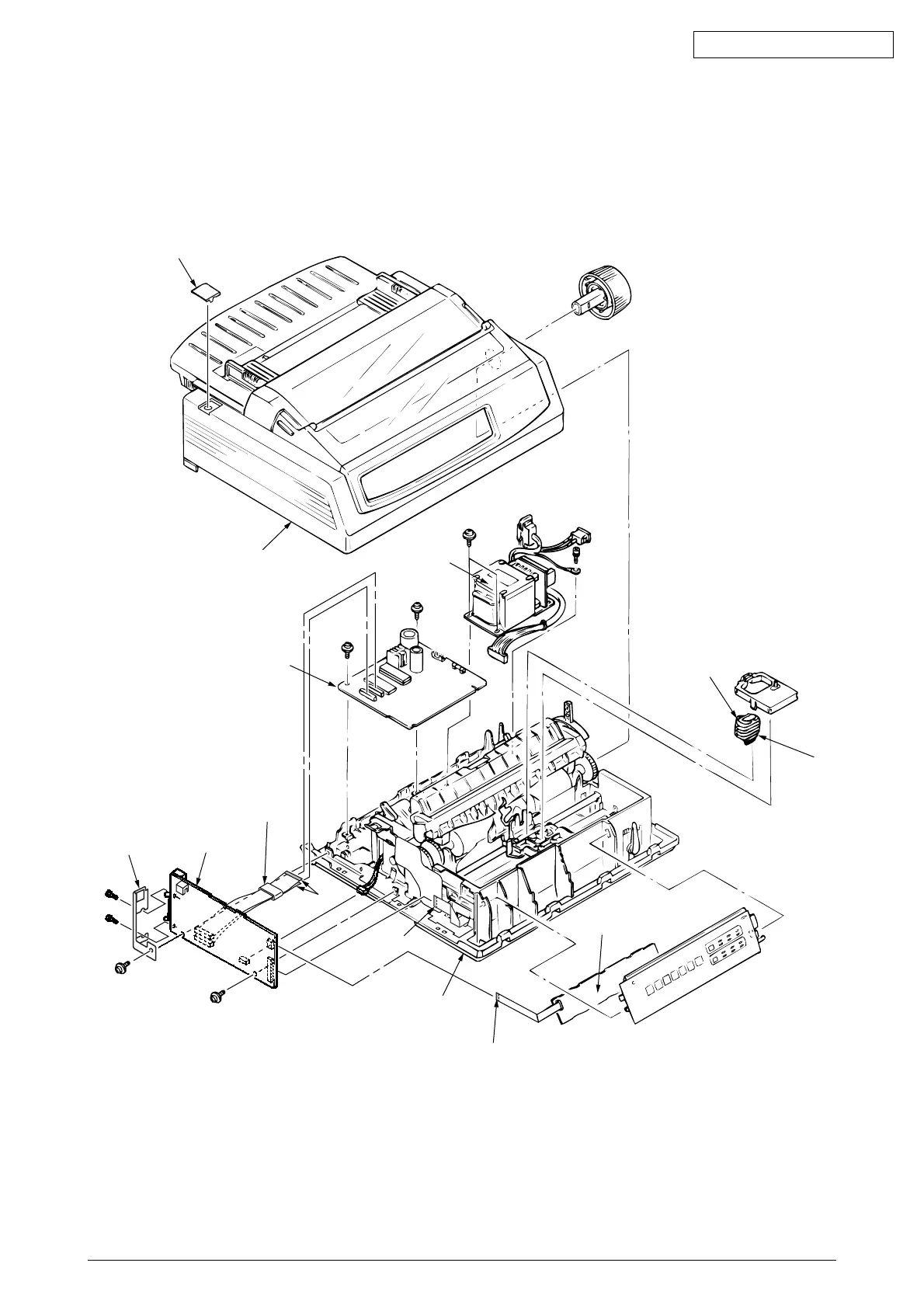

Figure 3-1 Printer unit
CSF connector cover(at USB Ver.)
(at USB Ver.)
(at USB Ver.)
