6.4 Connection Circuit Check for Printhead and SP/LF Motor

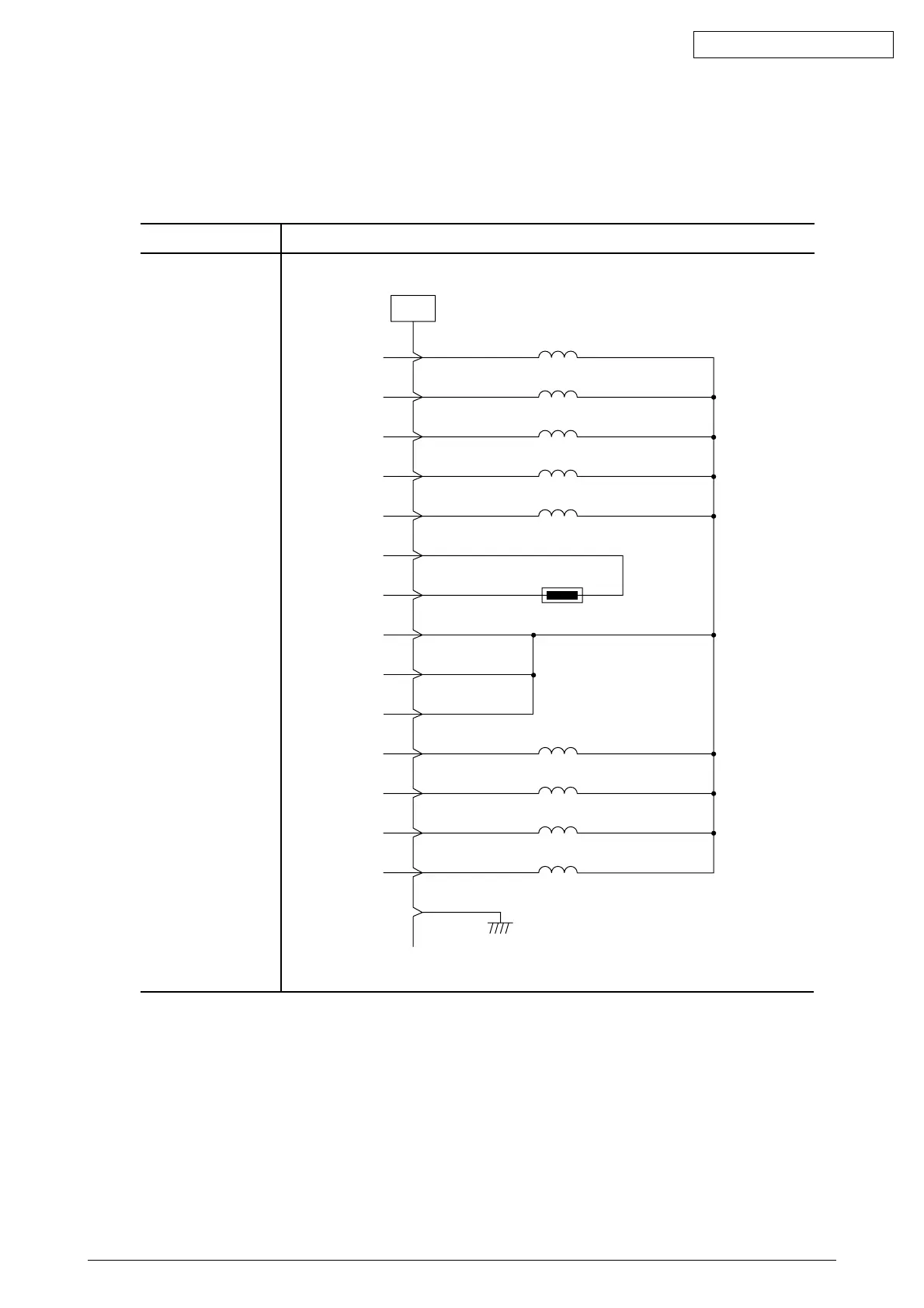

(1) Printhead
Signal Connector pin number
CN1
1#1
2#2
3#4
4#6
5#8
6
7
8
9
10
11 #9
12 #7
13 #5
14 #3
15
Thermistor
HEAD1
HEAD2
HEAD4
HEAD6
HEAD8
EL
HTEMP
+40V
+40V
+40V
HEAD9
HEAD7
HEAD5
HEAD3
