Oki Microline 3321

42089201TH Rev.4 37 /
Oki Data CONFIDENTIAL
Control Power
supply Assy
Release shaft
Change arm
Change lever
Change gear shaft

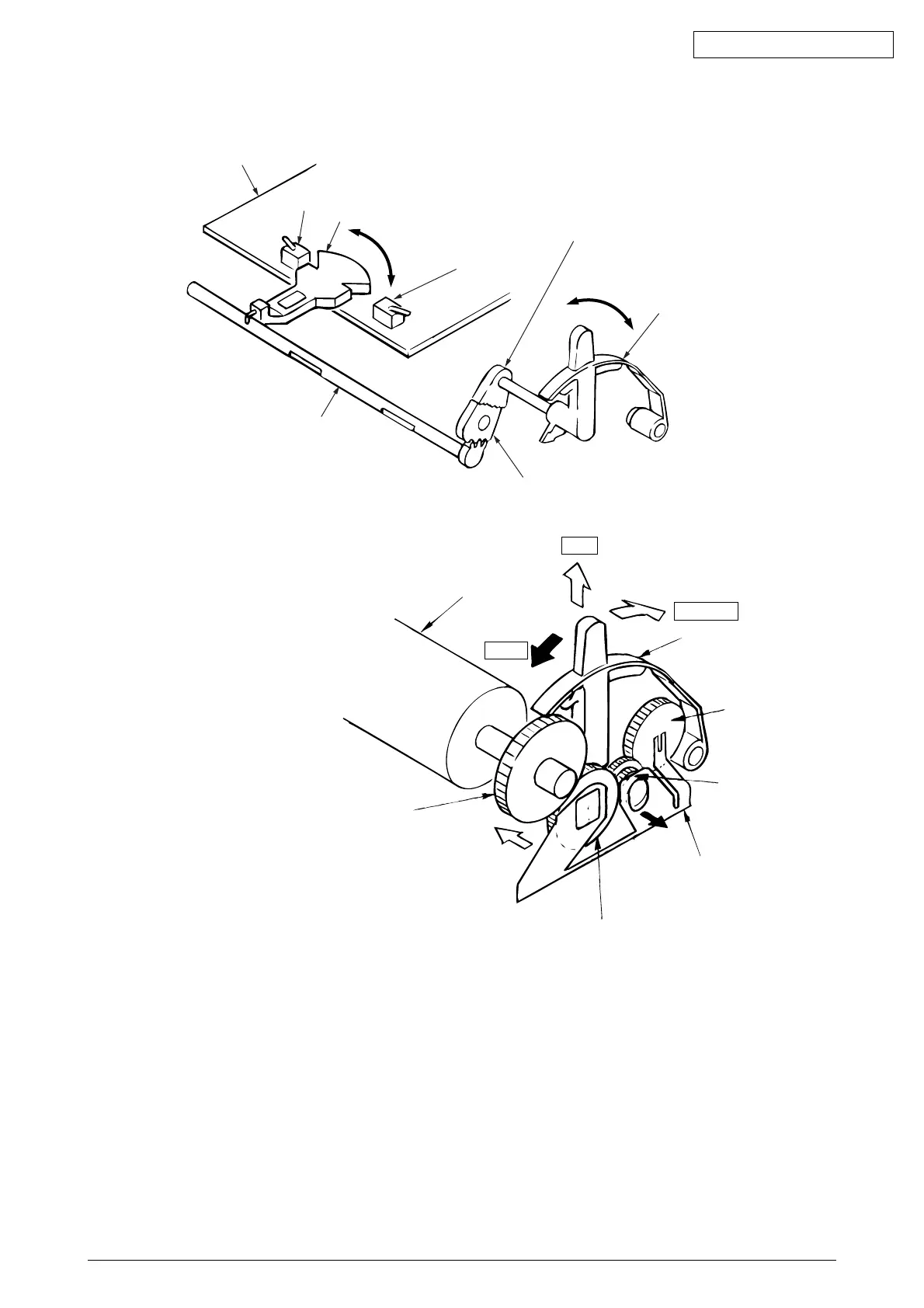

Figure 2-8
TOP
Platen
REAR
BOTTOM
Change lever
Tractor gear
Change gear
Reset spring
Platen gear (R)
Idle gear
(Bottom tractor unit)
Rear switch
Switch lever
Bottom switch
