Oki Microline 3321 Maintenance Manual

42089201TH Rev.4 84 /
Oki Data CONFIDENTIAL
ItemNo. Specification Drawing Adjustment method
4–6
To confirm:
The idle gear of the
LF motor and the
platen gear (L) and
the bias gear of the
platen shall be in
mesh in such way that
the platen gear (L)
and the bias gear
rotate against each
other to pinch the
teeth of idle gear.
The idle gear stays in
mesh with the platen
gear (L) and the bias
gear and not locked.
The bias gear and the
platen gear shall be
staggered by one
teeth as shown in the
drawing.

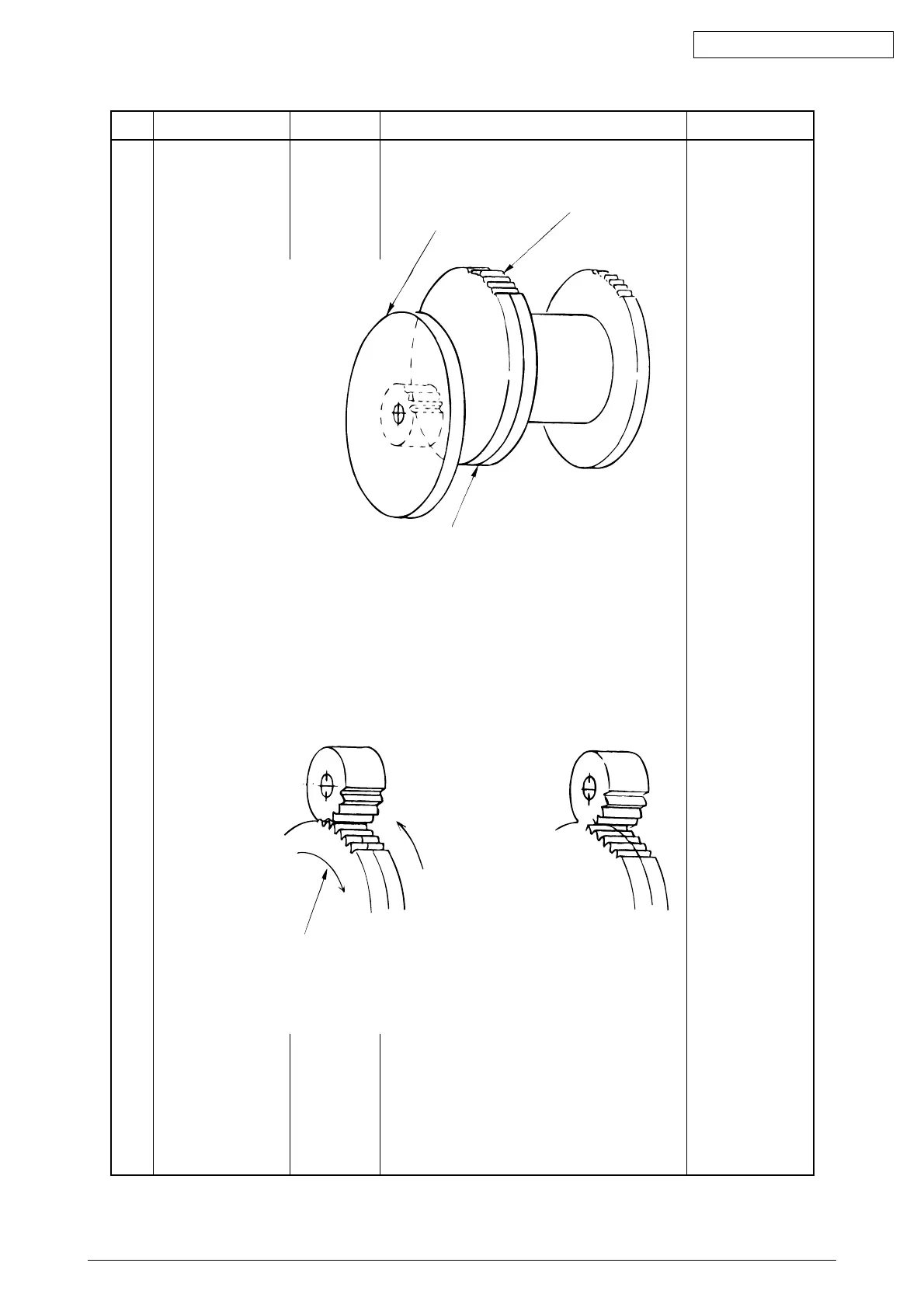

Engagement of the
double gear and the LF
motor idle gear of the
Platen Assy.
LF Motor
idle gear
Platen gear (L)
Bias gear
Tension
Not good
(Locked)
Good
