Load The Paper (Standard Configuration)

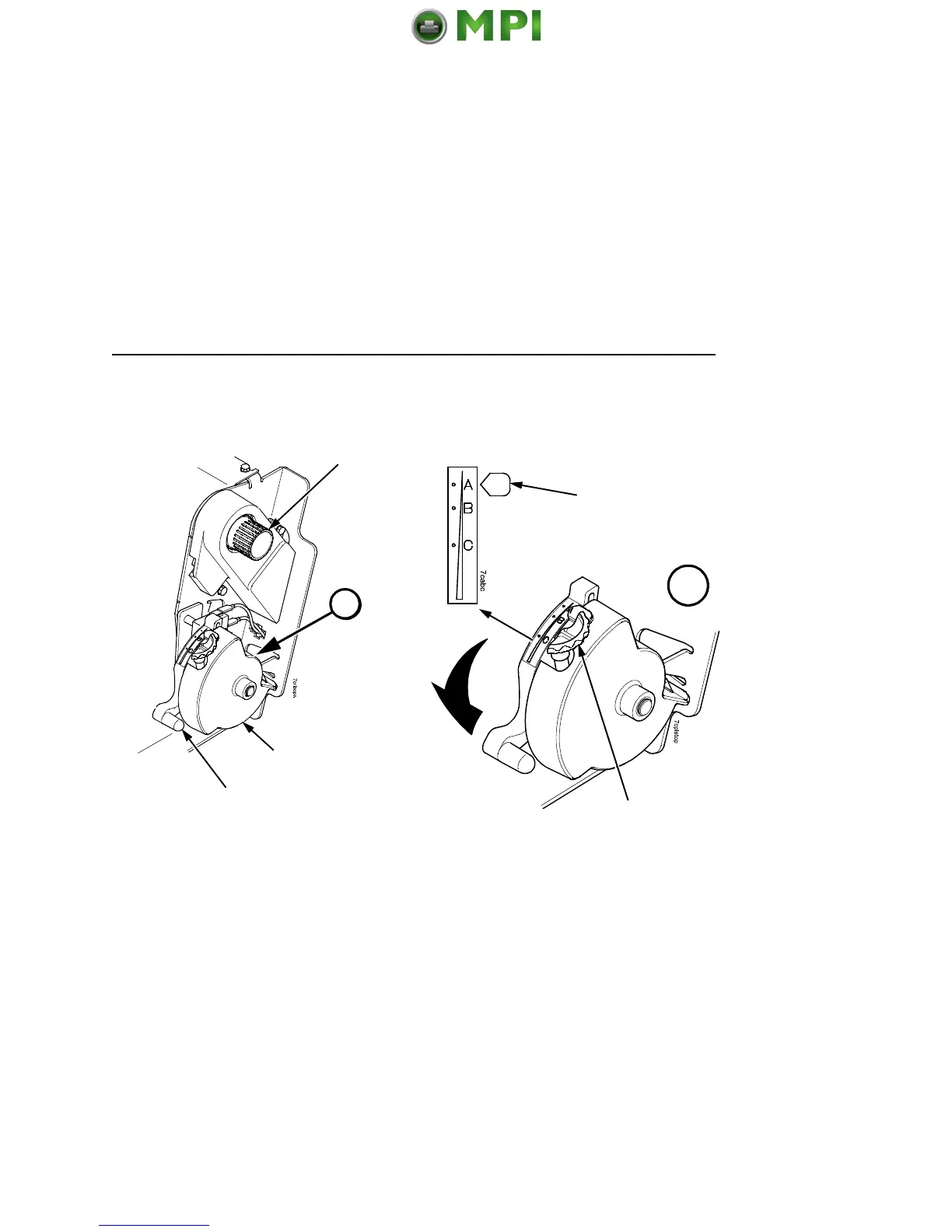

Figure 25. Set the Platen Lever based on the Paper Thickness
13. Raise the platen lever all the way.
14. Turn the vertical position knob to feed the paper up into the
paper guide assembly.
15. Turn the platen stop knob clockwise or counterclockwise to
match the paper thickness. (The A-B-C scale corresponds
approximately to 1-, 3-, and 6-part paper thickness).
NOTE: The platen stop allows you to set an optimum and
consistent thickness that is not affected when opening and
closing the platen lever.
16. Lower the platen lever until it stops.
17. If necessary, press ON LINE/CLEAR to remove the “LOAD
PAPER” fault message from the display.
Platen Lever
Vertical Position
Knob
Platen Stop
Knob
A
A
Platen Stop
Paper Thickness
Indicator
