Install The Ribbon And Paper
32

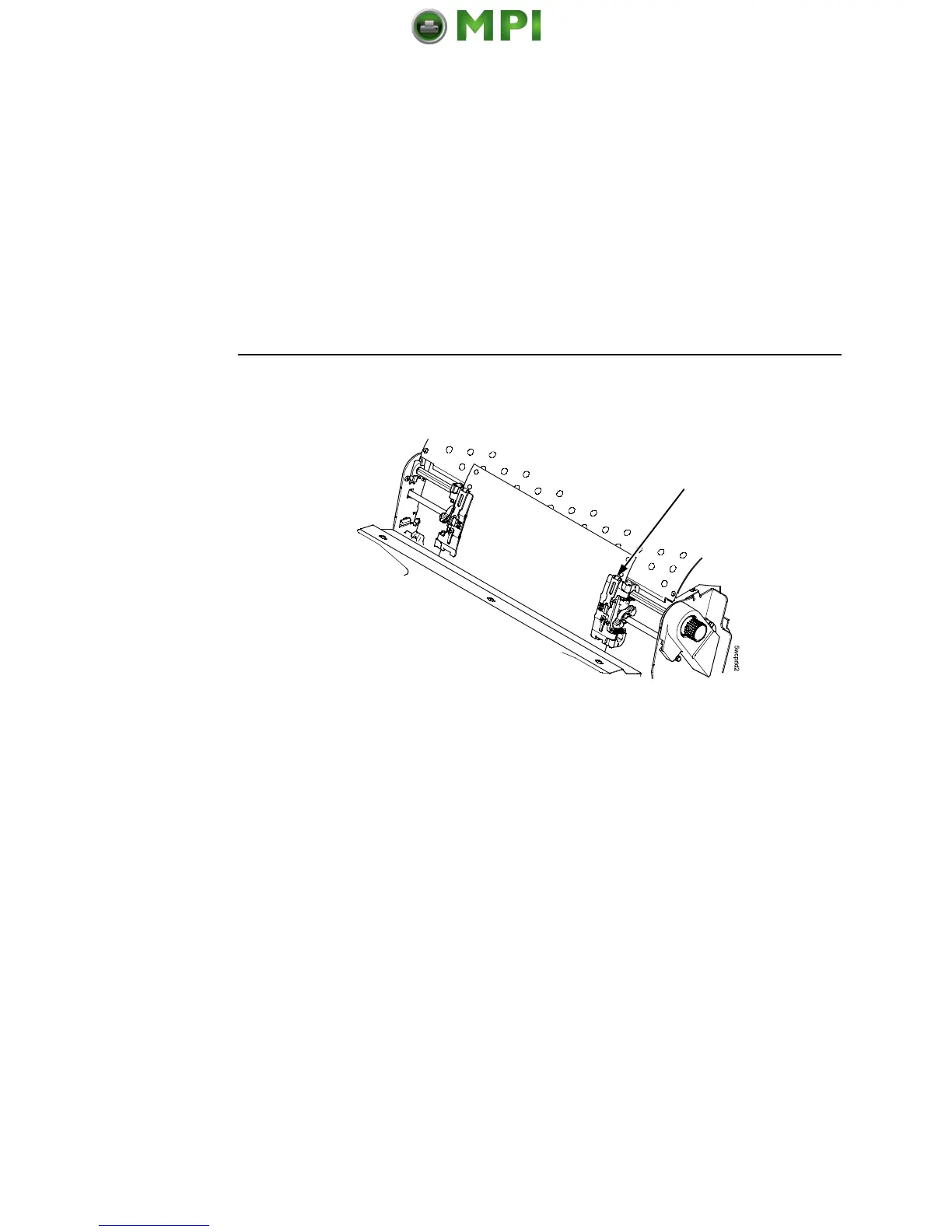

Figure 24. Loading the Paper onto the Right Tractor Sprockets
7. Unlock the right tractor.
8. Load the paper onto the right tractor sprockets.
9. Close the tractor door.
10. Make sure the leading edge of the first sheet of paper is parallel
to the top of the tractors. If the paper is misaligned, reload it
onto the tractor sprockets until its edge is parallel to the splined
shaft.
11. Slide the right tractor to remove paper slack or to adjust for
various paper widths.
12. Lock the right tractor.
Right Tractor Door
To Next Page
