pro920WT User’s Guide> 96

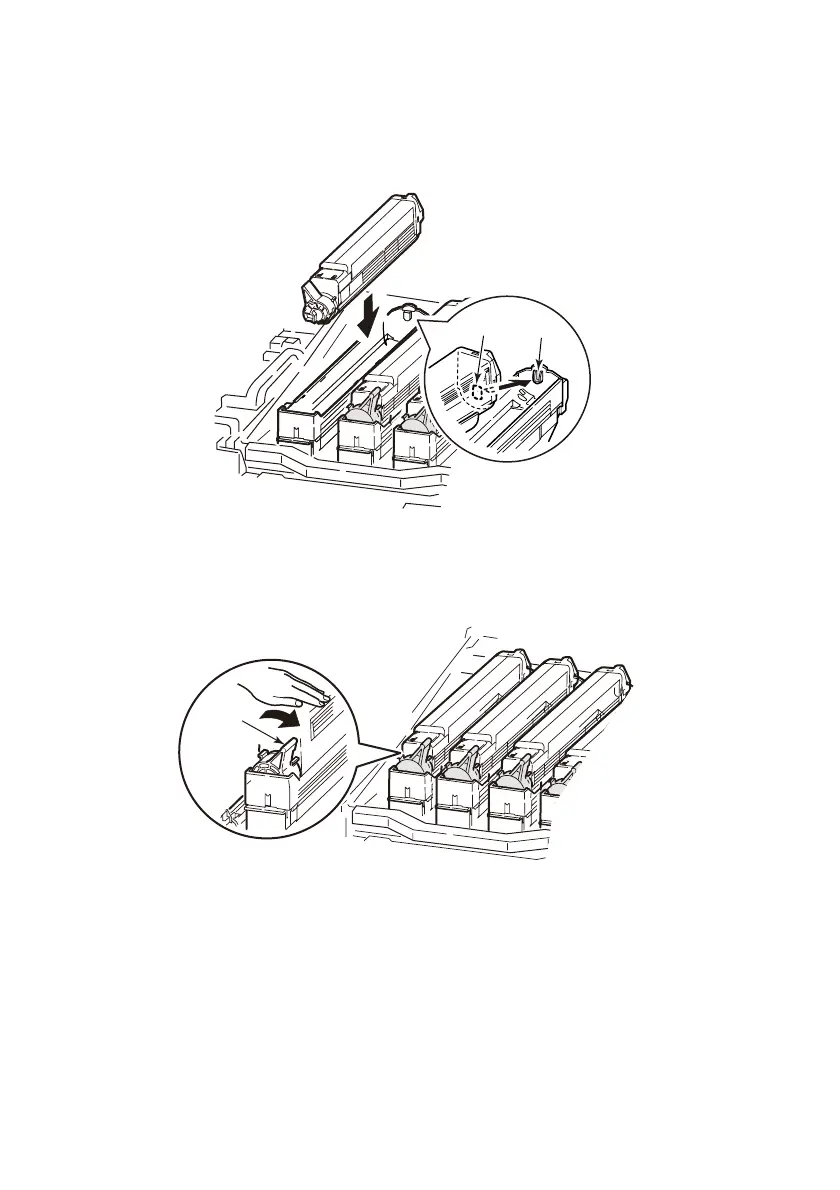

9. Match the hole (5) of the toner cartridge removed in step 4
on the protrusion (6) of the image drum and carefully lower it
on the image drum.
10. Pressing gently down the toner cartridge to ensure that it is
firmly seated, lock it by turning the blue lock lever (7) to the
direction of the arrow until it stops.
5
6
7
To Next Page
