Electronics Modules
The electronics module of the gas monitor contains connectors and
jumpers for wiring and configuring the device. The electronics module for a
main unit is shown in Figure 2-4. The electronics module for a
remote unit is shown in Figure 2-5. Wiring details are explained in Chapter 4
| System Wiring.

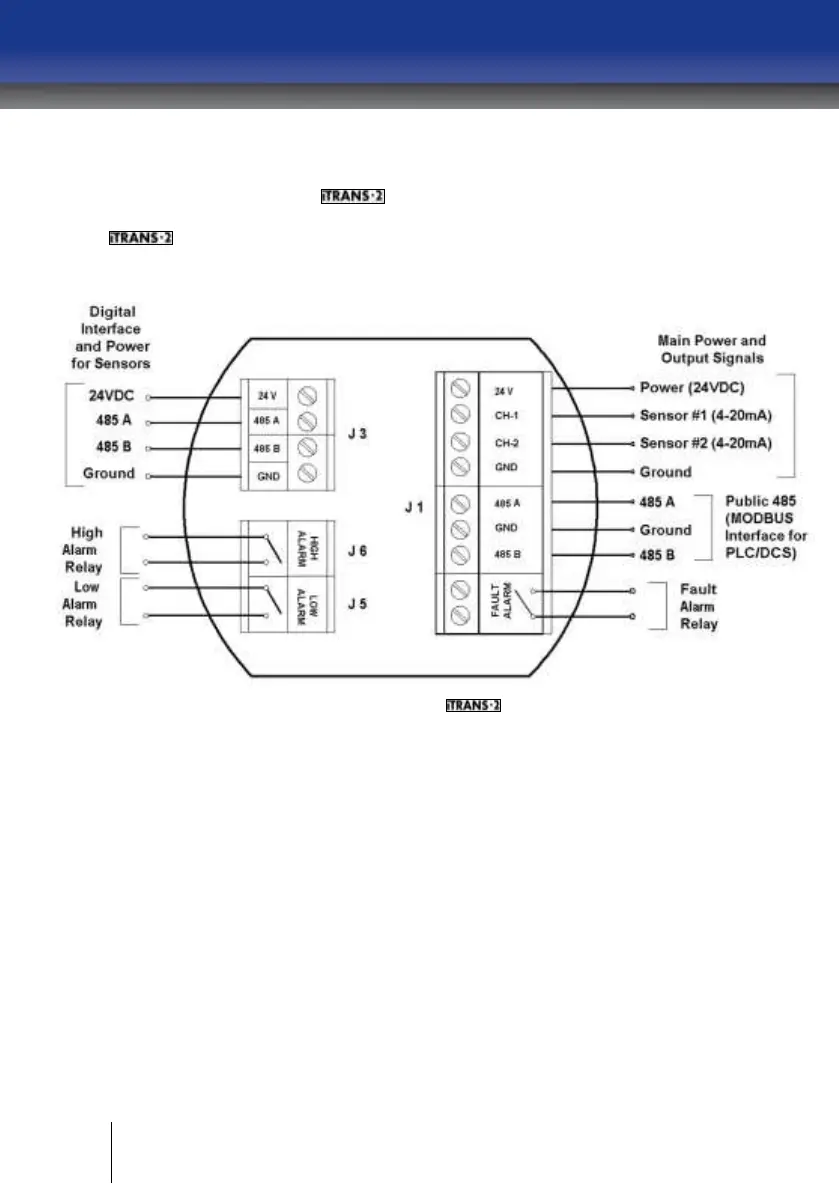

Figure 2-4 Electronics Module for (Main Unit)
