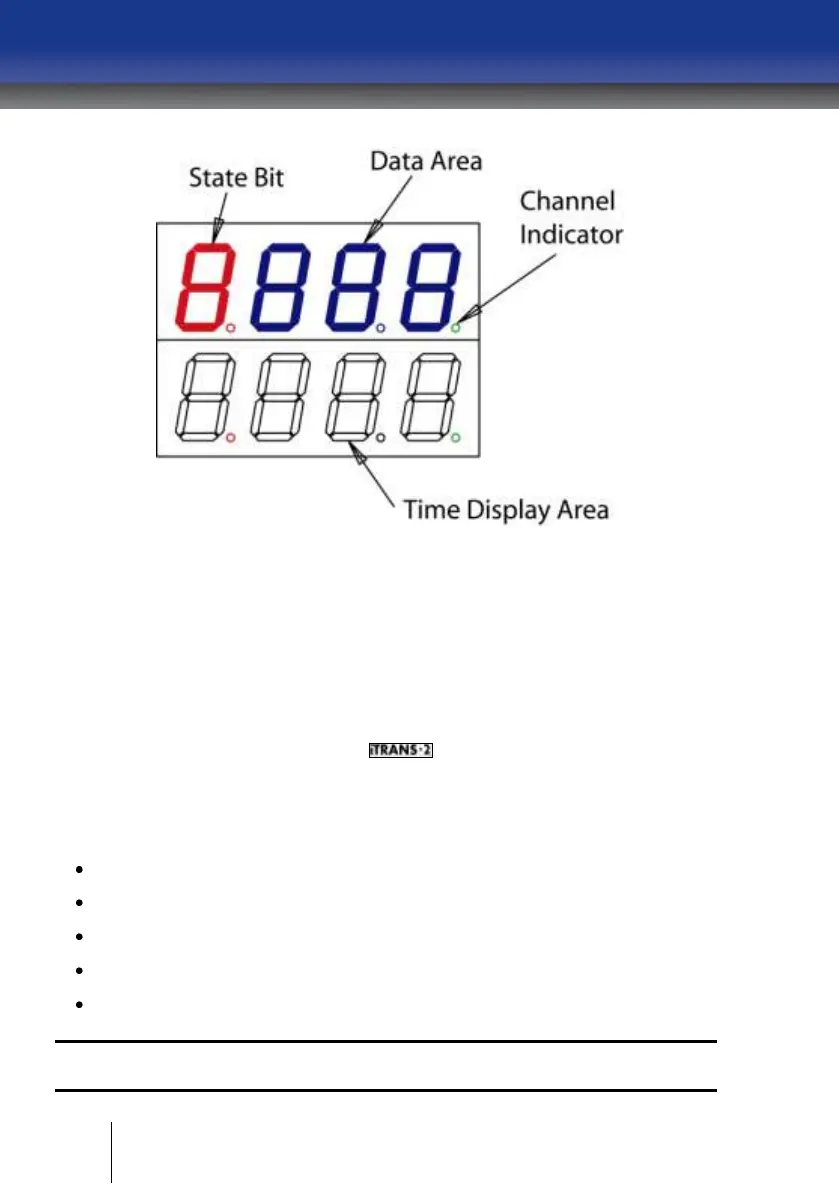

Figure 5-5 Components of the Display
Programming Mode – Non-intrusive Operation
Introduction
Non-intrusive calibration and programming is accomplished using a
magnetic wand that comes with the unit. Placing the magnetic wand
over the embedded reed switches located under the CH1 and CH2
designations (see Figure 5-4) of the faceplate will allow you to scroll through
menus and enter the desired function. The functions available through non-
intrusive operation are as follows.
Sensor Type
Zero
Calibration
Span Gas Value
Span Reserve (in this order)
NOTE: Please see the Chapter 8 | for a complete list of functions and
function codes.
