Oldham iTrans 2 User Manual

70
Items
Description
Signal
Outputs
Digital
4-20mA FSK HART (HCF Compliant )
Analog
4-20mA (linear analog)
Table A - 1 HART Supported Signals
Hardware Overview
For details please see Chapter 2 |.
IMPORTANT: In Chapter 2 |, the “Electronic Modules” section is replaced
with the following section.
Electronics Modules
The electronics module of the gas monitor contains connectors and
jumpers for wiring and configuring the device. The electronics module for a
main unit is shown in the figure. The electronics module for a
remote sensors unit is shown in the figure. The wiring details of
main unit electronics module are explained in “System Wiring” section of
this appendix and for the wiring details of remote sensors unit
electronic module please see Chapter 4 |.

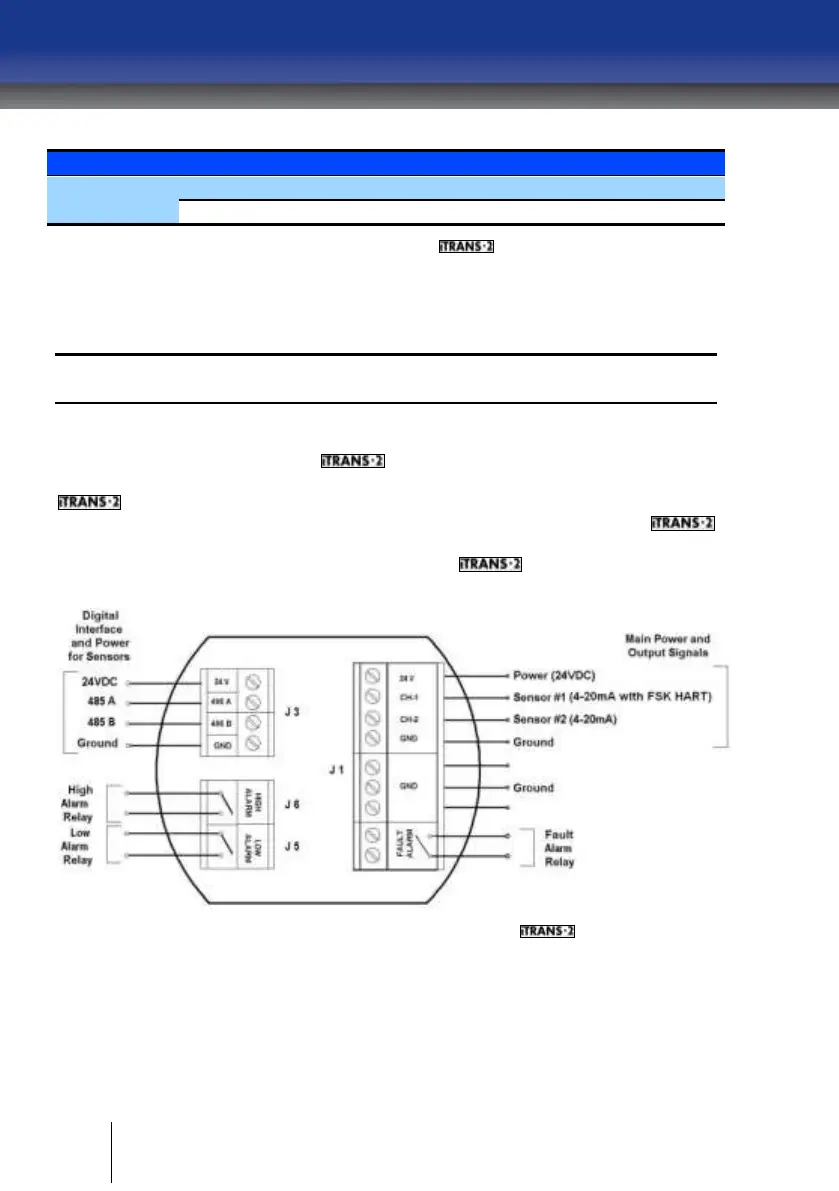

Figure A - 2 Electronics Module for HART Supported (Main Unit)
