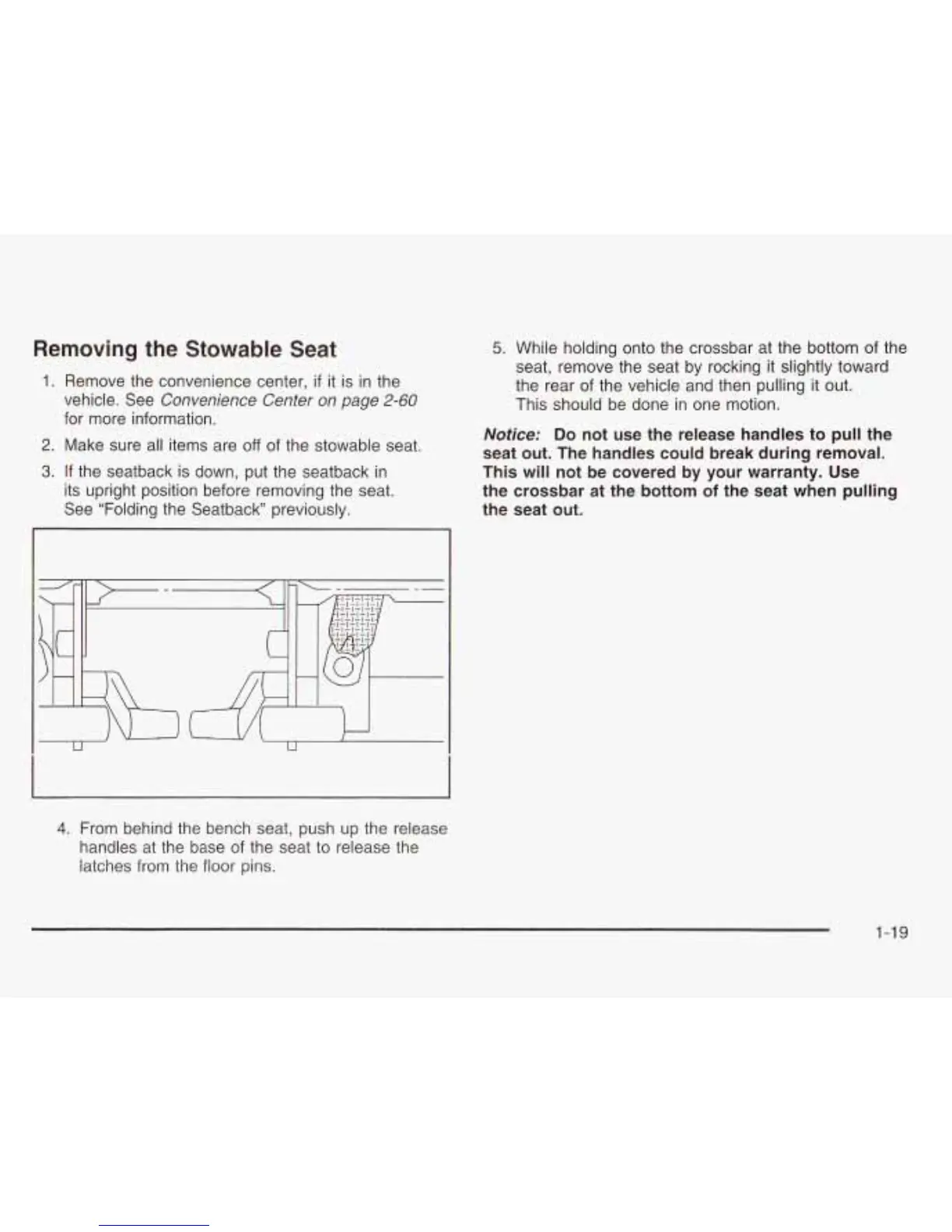

Removing the Stowable Seat
1.
Remove the convenience center,
if
it is in the
vehicle. See
Convenience Center on
page
2-60
for
more information.
2.
Make sure all items are
off
of the stowable seat.
3.
If
the seatback is down, put the seatback in
its upright position before removing the seat.
See “Folding the Seatback previously.
U
U
5.
While holding onto the crossbar at the bottom
of
the
seat, remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out.
This should be done in one motion.
Notice:
Do
not use the release handles to pull the
seat out. The handles could break during removal.
This will not be covered by your warranty. Use
the crossbar at the bottom
of
the seat when pulling
the seat out.
4.
From behind the bench seat, push up the release
handles at the base of the seat to release the
iatches
from
the
fioor
pins.
1-19
