Oldsmobile 2003 Silhouette - Taillamps, Turn Signal, Stoplamps and Back-Up Lamps

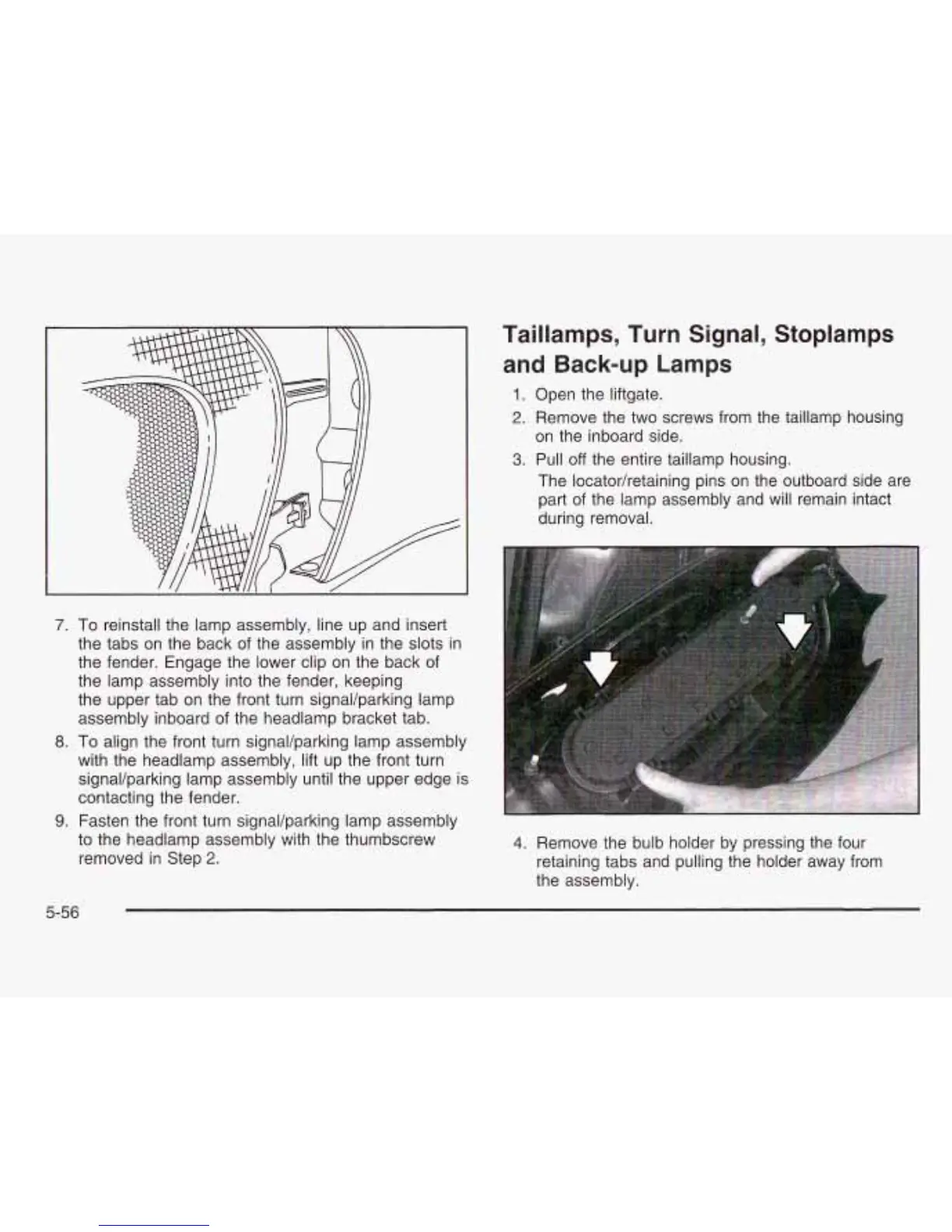

7. To reinstall the lamp assembly, line up and insert
the tabs on the back of the assembly in the slots
in
the fender. Engage the lower clip on the back of
the lamp assembly into the fender, keeping
the upper tab on the front turn signaVparking lamp
assembly inboard
of the headlamp bracket tab.
8.
To align the front turn SignaVparking lamp assembly
with the headlamp assembly, lift up the front turn
signaVparking lamp assembly until the upper edge is
contacting the fender.
9. Fasten the front turn signaVparking lamp assembly
to the headlamp assembly with the thumbscrew
removed
in Step 2.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
1. Open the liftgate.
2. Remove the two screws from the taillamp housing
3. Pull off the entire taillamp housing.
on the inboard side.
The locator/retaining pins on the outboard side are
part of the lamp assembly and will remain intact
during removal.
4. Remove the bulb holder by pressing the four
retaining tabs and pulling the holder away from
the assembly.
5-56
