d-Color MF 3300/3800 3-9
3.2 When a paper jam has occurred
3
3.2.4 Clearing a paper jam in Tray 2/3
0 Tray 2/3 is available when the optional Paper Feed Unit is installed.

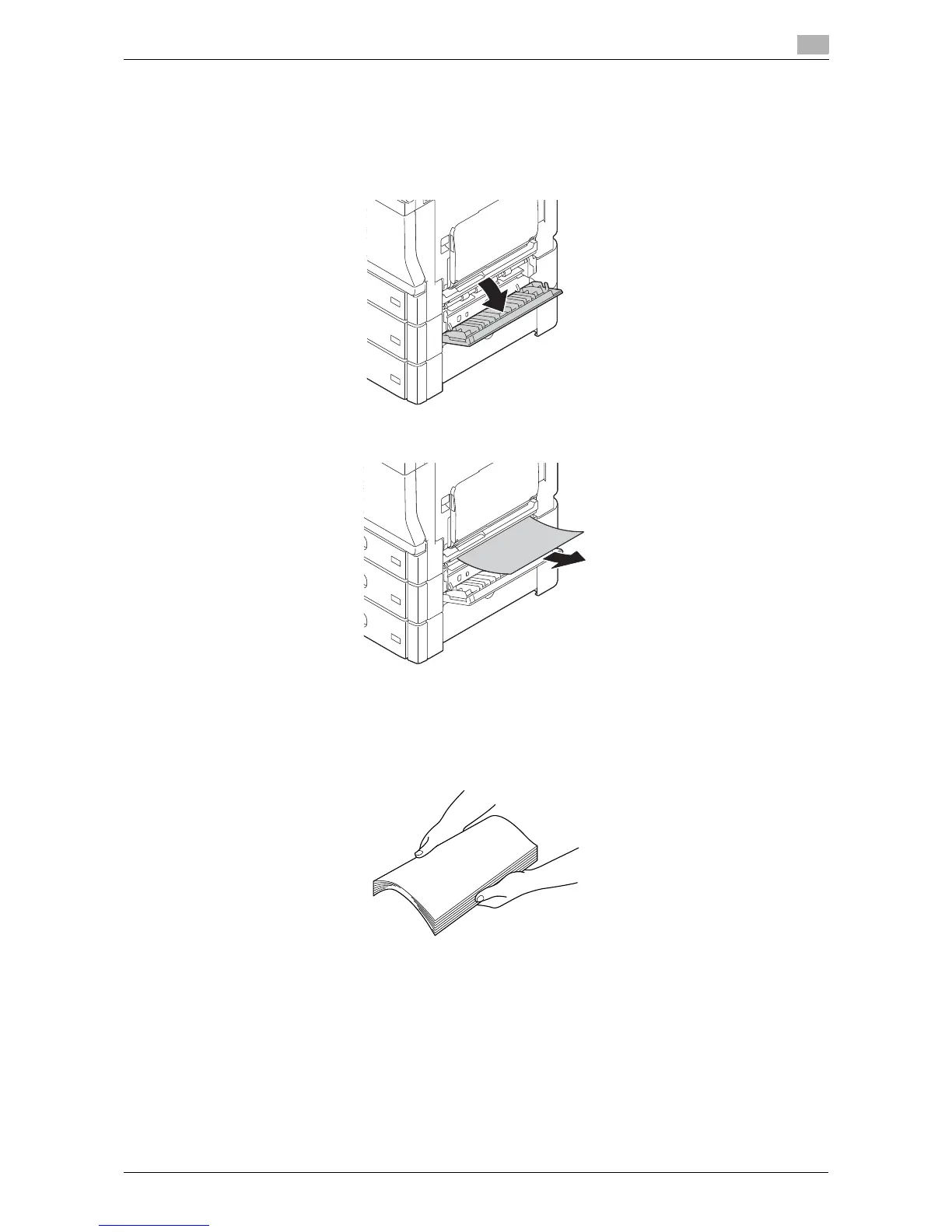

1 Open the Right Door of Tray 2/3.
% When opening the Right Door of Tray 2/3, be sure to fold the Manual Feed Tray in advance.
2 Carefully pull out the jammed paper.
3 Close the Right Door of Tray 2/3.
4 Pull out Tray 2/3, then remove any paper left in the tray.
5 Flip through the removed paper, the align the edges.
6 Load paper into Tray 2/3, then close the tray.
To Next Page
