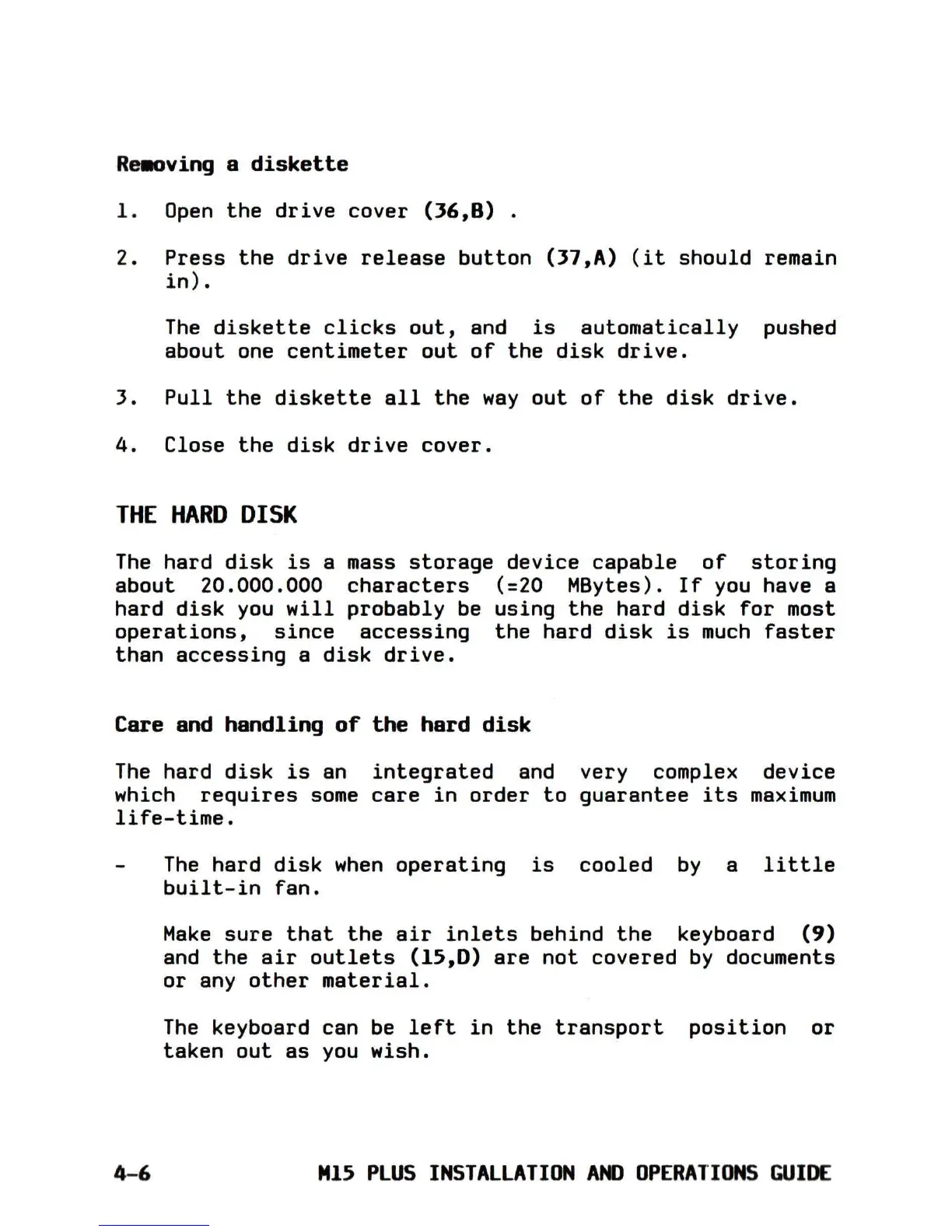

Re.oving a diskette
1. Open the drive cover (36,8) .
2. Press the drive release button (37,A) (it should remain
in) .
The diskette clicks out, and is automatically pushed
about one centimeter out of the disk drive.
3. Pull the diskette all the way out of the disk drive.
4. Close the disk drive cover.
THE HARD DISK
The hard disk is a mass storage device capable of storing
about 20.000.000 characters (=20 MBytes). If you have a
hard disk you will probably be using the hard disk for most
operations, since accessing the hard disk is much faster
than accessing a disk drive.
Care and handling of the hard disk
The hard disk is an integrated and very complex device
which requires some care in order to guarantee its maximum
life-time.
The hard disk when operating is cooled by a little
built-in fan.
Make sure that the air inlets behind the keyboard (9)
and the air outlets (15,0) are not covered by documents
or any other material.
The keyboard can be left in the transport position or
taken out as you wish.
"15 PLUS INSTALLATION AND OPERATIONS GUIDE
