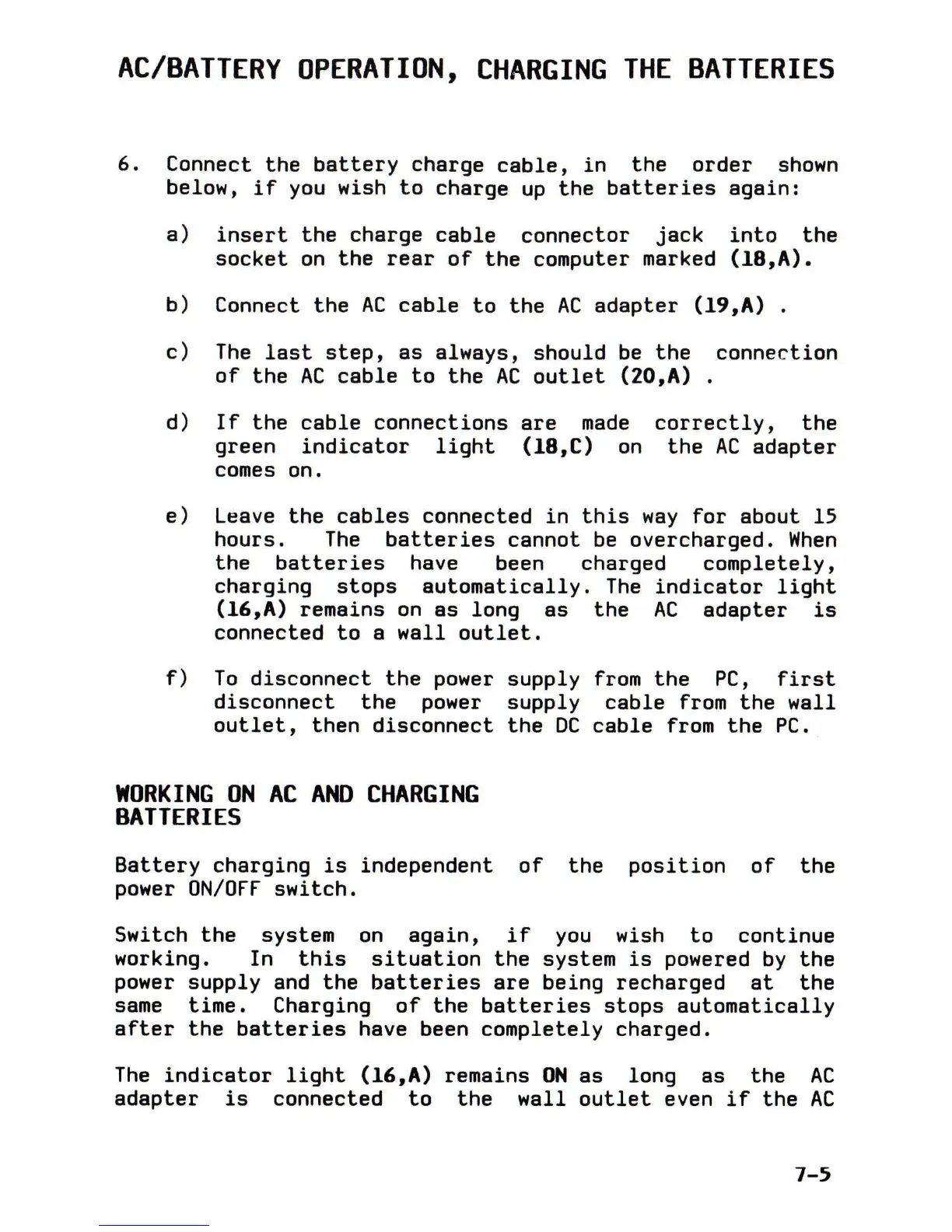

AC/BATTERY OPERATION, CHARGING THE BATTERIES
6. Connect the battery charge cable, in the order shown
below, if you wish to charge up the batteries again:
a) insert the charge cable connector jack into the
socket on the rear of the computer marked (lO,A).
b) Connect the AC cable to the AC adapter (19,A) .
c) The last step, as always, should be the connection
of the AC cable to the AC outlet (20,A) .
d)
If the cable connections are made
green indicator light (lO,e) on
comes on.
correctly, the
the
AC adapter
e) Leave the cables connected in this way for about 15
hours. The batteries cannot be overcharged. When
the batteries have been charged completely,
charging stops automatically. The indicator light
(16,A) remains on as long as the AC adapter is
connected to a wall outlet.
f) To disconnect the power supply from the PC, first
disconnect the power supply cable from the wall
outlet, then disconnect the DC cable from the PC.
WORKING ON AC AND CHARGING
BATTERIES
Battery charging is independent of the position of the
power ON/OFF switch.
Switch the system on again, if you wish to continue
working. In this situation the system is powered by the
power supply and the batteries are being recharged at the
same time. Charging of the batteries stops automatically
after the batteries have been completely charged.
The indicator light (16,A) remains ON as long as the AC
adapter is connected to the wall outlet even if the AC
7-5
