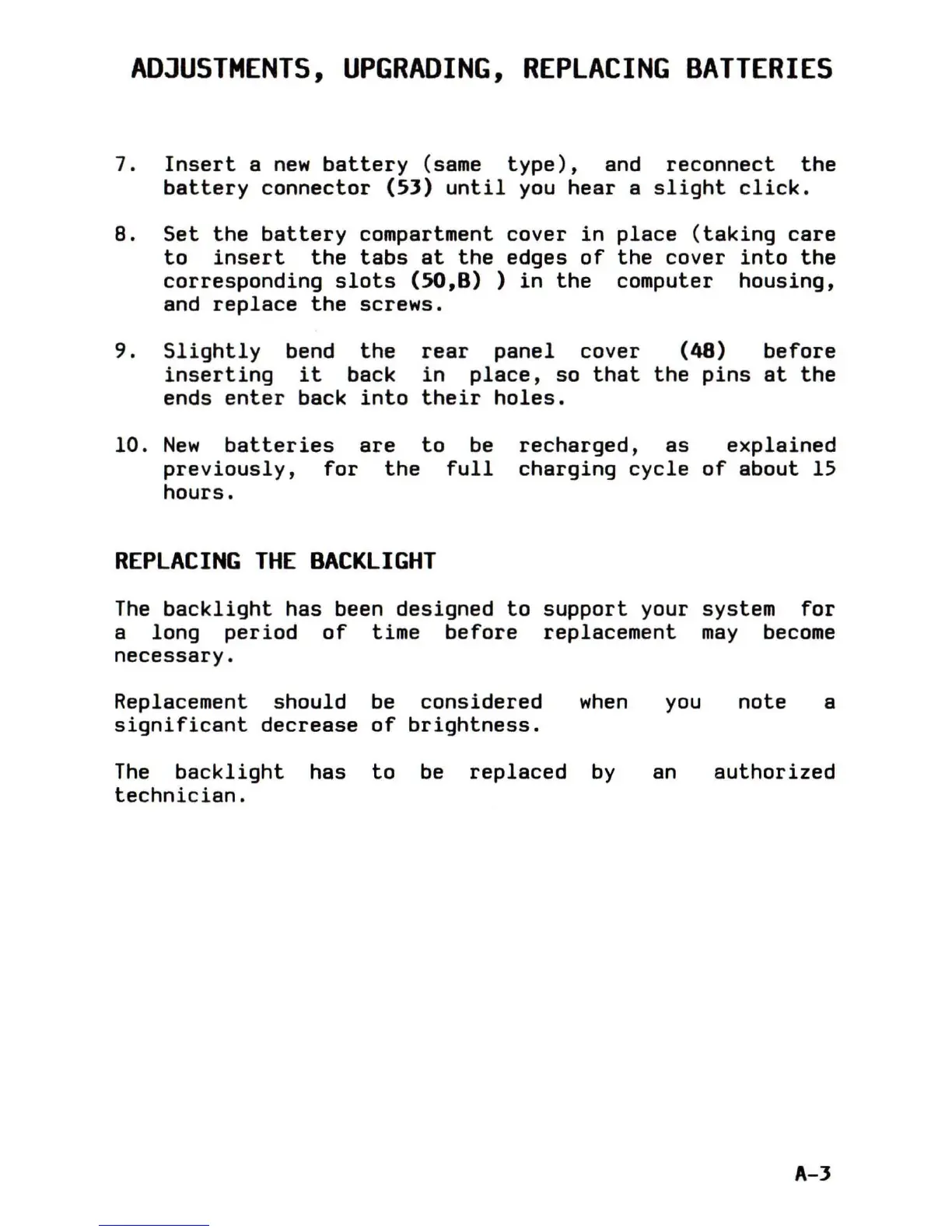

ADJUSTMENTS, UPGRADING, REPLACING BATTERIES
7. Insert a new battery (same type), and reconnect the
battery connector (53) until you hear a slight click.
8.
Set the battery compartment cover in
to insert the tabs at the edges of
corresponding slots (50,B) ) in the
and replace the screws.
place (taking care
the cover into the
computer housing,
9. Slightly bend the rear panel cover
(48)
before
inserting
it back
in place, so that the
pins
at the
ends enter back into their holes.
10. New batteries
are
to be recharged, as explained
previously, for the full charging cycle of about 15
hours.
REPLACING THE BACKLIGHT
The backlight has been designed to support your system for
a long period of time before replacement may become
necessary.
Replacement should be considered
significant decrease of brightness.
when you note
a
The backlight has to be replaced by an
technician.
authorized
A-3
