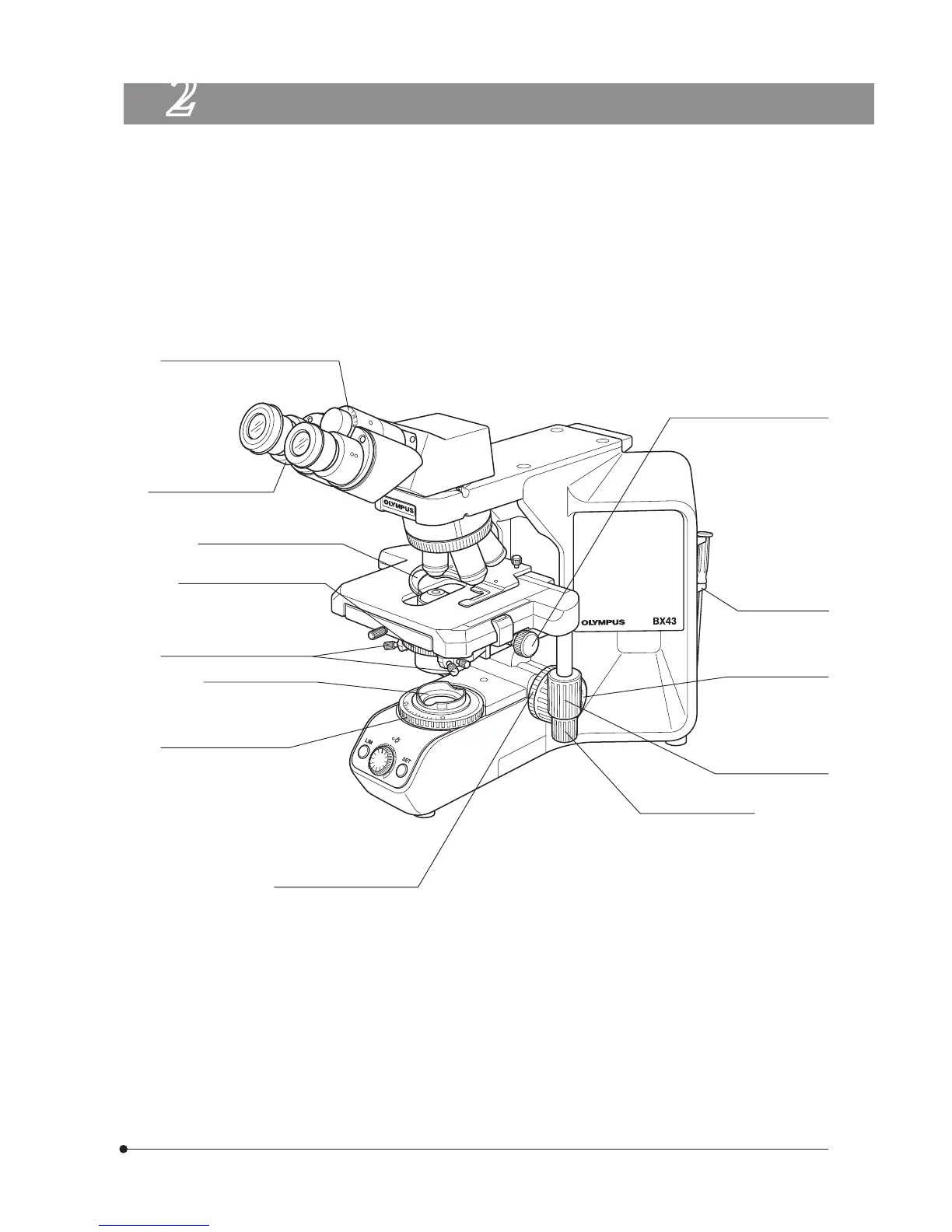

CONTROLS
} If you have not yet assembled the microscope, read section 10, “ASSEMBLY” (pages 33 to 37).
Interpupillary distance adjustment
scale (Page 22)
Diopter adjustment ring
(Page 22)
Slide holder clamping lever
(Page 19)
Aperture iris diaphragm ring
(Page 12)
Condenser centering screws
(Page 12)
Filter mount (Page 15)
Field iris diaphragm ring
(Page 12)
Condenser height adjustment
knob (Page 12)
Allen screwdriver
holder
Y-axis knob (Page 20)
X-axis knob (Page 20)
Coarse adjustment
knob (Page 18)
Coarse adjustment tension
adjustment ring (Page 18)
