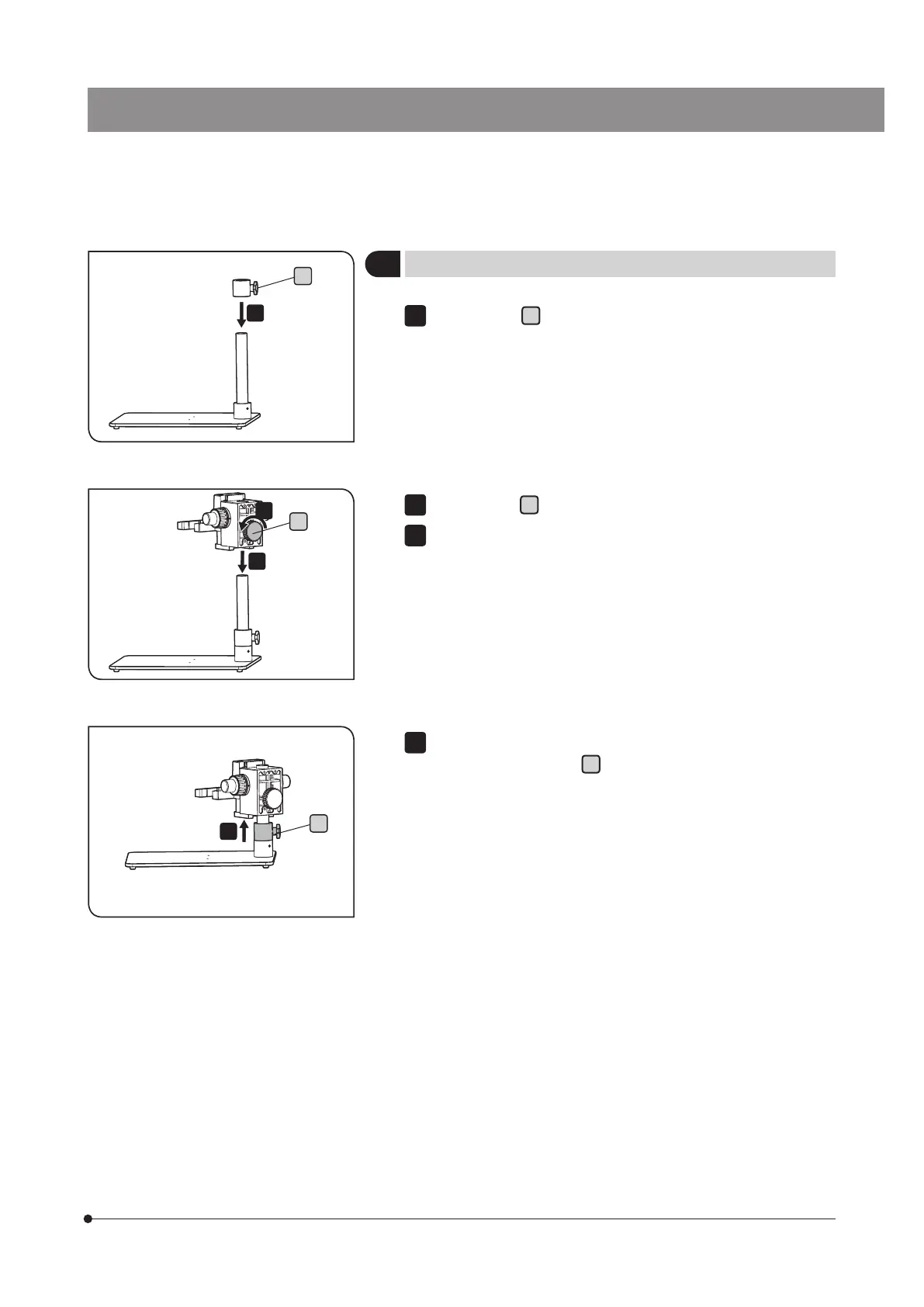

Attaching the BXFM frame
1
4
a
a
Turn the knob
a
of the drop prevention ring to loosen it and insert
the drop prevention ring into the column of the stand.
1
Turn the knob
b
of the BXFM frame (BXFM-F) to loosen it.
Insert the BXFM frame into the column of the stand, stop it at the
position you want to secure it and turn the knob of the BXFM frame
(BXFM-F) to tighten it.
2
3
Raise the drop prevention ring until it touches the bottom of the BXFM
frame and turn the knob
a
to tighten it.
