Attaching the light source for reflected light illumination
The light source for reflected light illumination must be attached
when the reflected light illuminator (BX3M-URAS-S or BX3M-
RLA-S) is combined with the microscope.
If you want to attach the reflected LED lamp housing or the
mercury lamp housing (during darkfield observation) when
BX3M-URAS-S is combined, the DF converter (U-RCV) must be
attached.
Loosen the mounting screws
a
(2 positions) of the reflected light
illuminator using the Allen screwdriver.
Be careful, if the mounting screw is loosened too much, it
may be come off.
Insert the light source for reflected light illumination or the liquid light
guide adapter into the light source mounting hole of the reflected light
illuminator until it touches the end.
When attaching the halogen lamp housing or the mercury
lamp housing, attach it so that the radiation fin faces up.
Do not light the mercury burner when the lamp housing is
not attached to the microscope because the UV rays in its
light are harmful to your eyes.
Tighten the mounting screws
a
(2 positions) of the reflected light
illuminator using the Allen screwdriver.
If the reflected LED lamp housing is attached, connect the cable
to the connector on the back of the power supply for LED (BX3M-
PSLED).
If the halogen lamp housing is attached, connect the cable to the
power supply (TH4).
If the mercury lamp housing is attached, connect the cable to the
power supply (U-RFL-T).
1
4
For connections of following units, refer to the instruction
manual provided with the respective unit.
· Cable connection of the reflected LED lamp housing
· Cable connection of the halogen lamp housing
· Cable connection of the mercury lamp housing
· Connection of the light source (U-HGLGPS) and the liquid
light guide, etc.

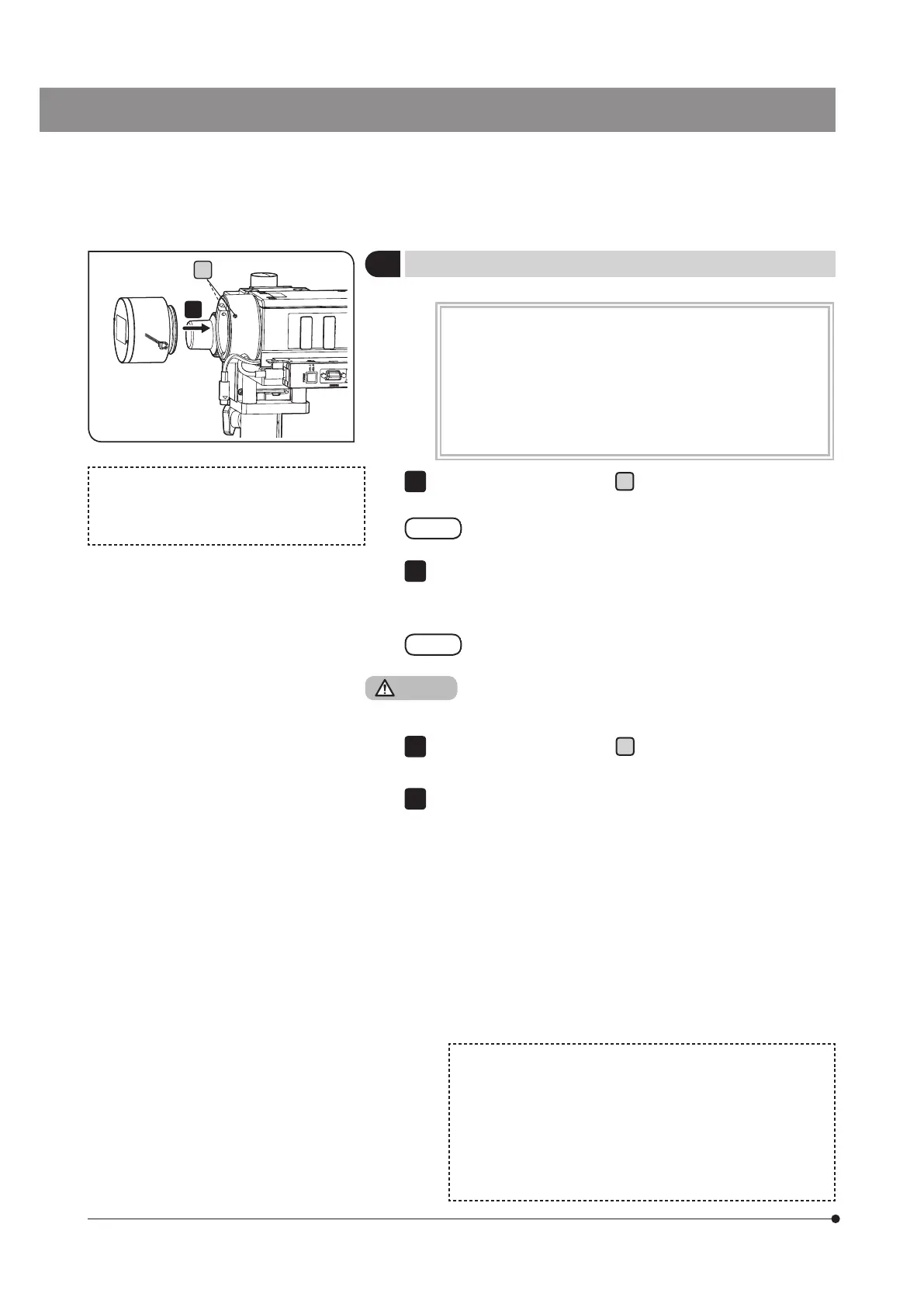

This picture shows the procedure to attach the
reflected LED lamp housing (BX3M-LEDR).
The same procedure applies when attaching other
light sources.
a
