Olympus E-M1 - Names of Parts

10 EN
Preparing the camera and fl ow of operations
1
1

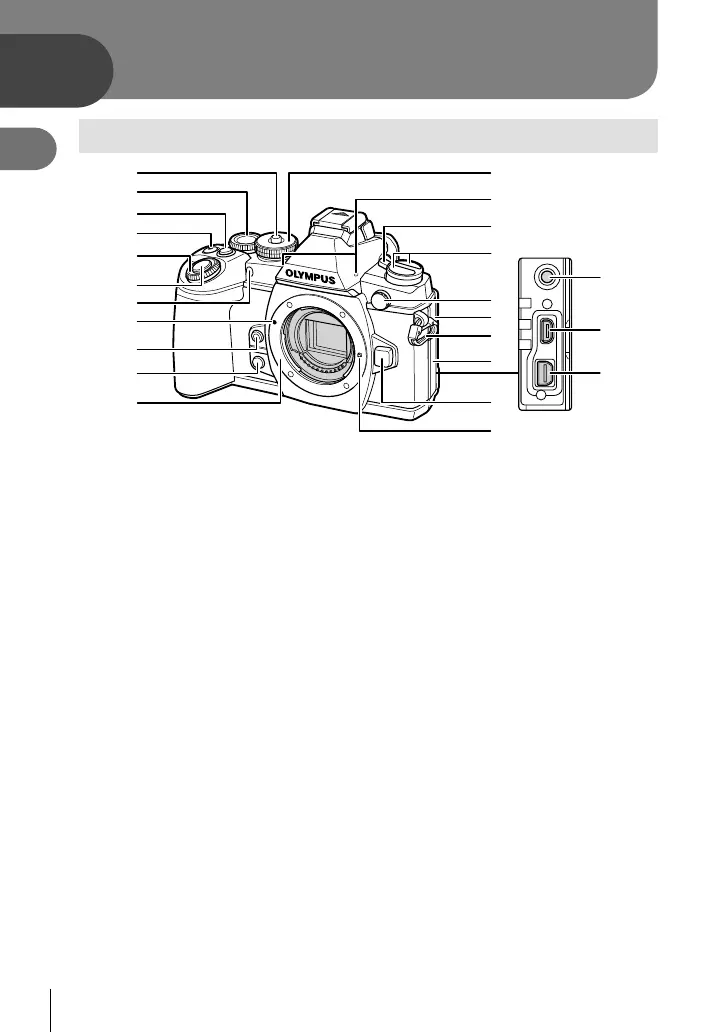

Names of parts
1
2
3
4
5
6
7
8
9
0
a
b
c
d
n
m
e
f
h
i
g
k
l
j
1 Mode dial lock .................................P. 18
2 Rear dial* (o)
.......................P. 23, 38 – 41, 58, 60, 110
3 Fn2 button ................................P. 23, 51
4 H/R (Movie) button ......P. 33/P. 22, 103
5 Front dial* (r) ...................P. 31, 38 – 41
6 Shutter button .................................P. 21
7 Self-timer lamp/AF illuminator
...............................................P. 57/P. 93
8 Lens attachment mark ....................P. 14
9 Y (One-touch white balance) button
........................................................P. 59
0 Z (Preview) button .......................P. 103
a Mount (Remove the body cap before
attaching the lens.)
b Mode dial ........................................P. 18
c Stereo microphone .............P. 66, 76, 90
d ON/OFF lever ................................P. 16
e v button
AFm (AF/Metering mode) button
............................................P. 74, 75
jYHDR (Sequential shooting/
Self-timer/HDR) button .......P. 57, 60
f External fl ash connector ...............P. 136
g Microphone connector cover
h Strap eyelet.......................................P. 9
i Connector cover
j Lens release button ........................P. 14
k Lens lock pin
l Microphone connector (Third-party
commercial microphones can be used.
l3.5 stereo mini-plug)
m HDMI connector (Type D) .............P. 105
n Multi-connector .............P. 105, 117, 120
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
