2.2 Capsule endoscope set A (MAJ-1469)

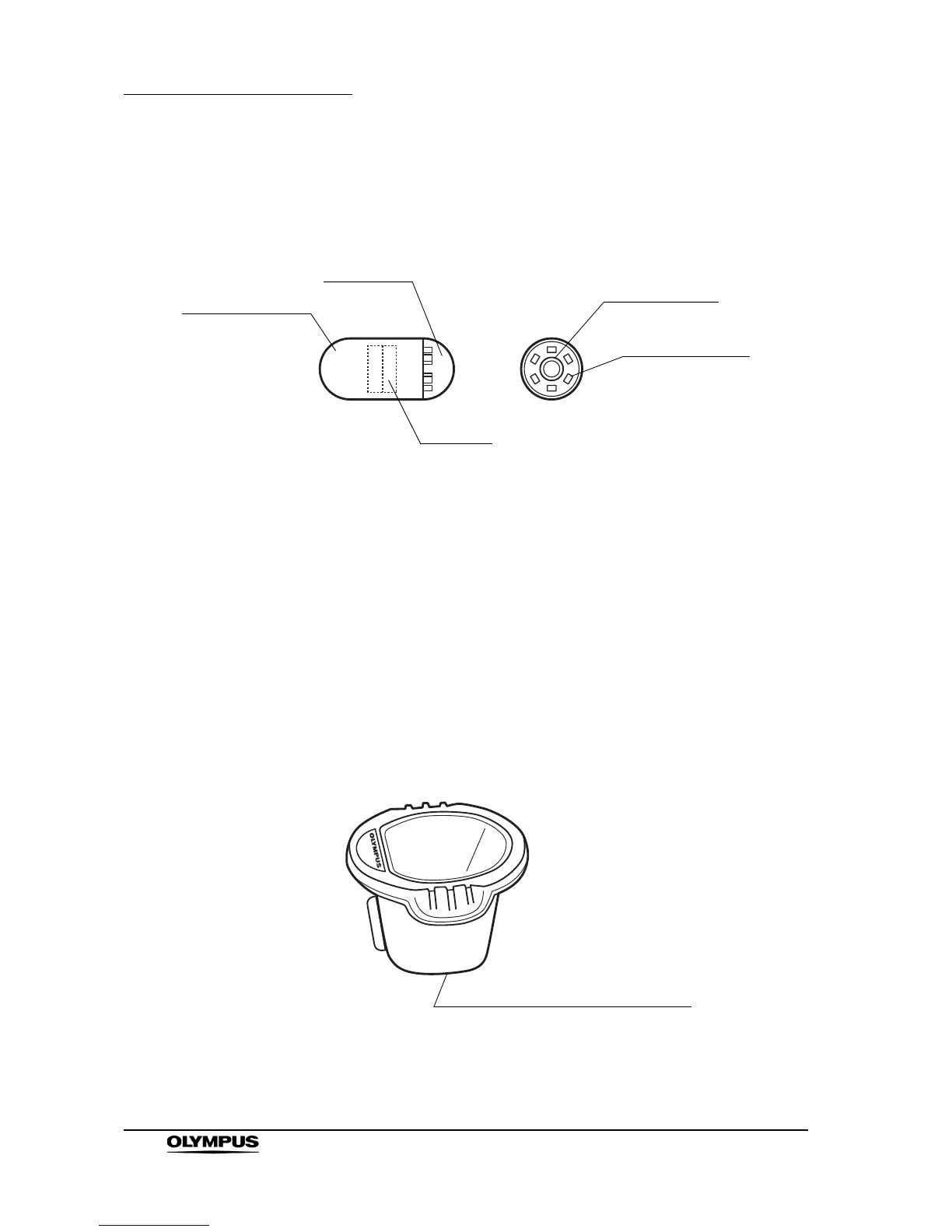

Capsule endoscope (OLYMPUS EC TYPE1)
1. Exterior package
Exterior package of the capsule endoscope.
2. Top cover
A transparent observation port covering the objective lens and illumination
LED.
3. Objective lens
Lens for endoscopic observation.
4. Illumination LED
Illuminates the area being observed.
5. Battery
Internal battery for operating the capsule endoscope.
Capsule activator (MAJ-1478)
1. Capsule endoscope insertion hole
To turn ON the capsule endoscope, insert it into this hole.
1. Exterior package
2. Top cover
5. Battery
3. Objective lens
4. Illumination LED
(white LED)
1. Capsule endoscope insertion hole
