Chapter 2 Nomenclature and functions
41
OLYMPUS CAPSULE ENDOSCOPE SYSTEM

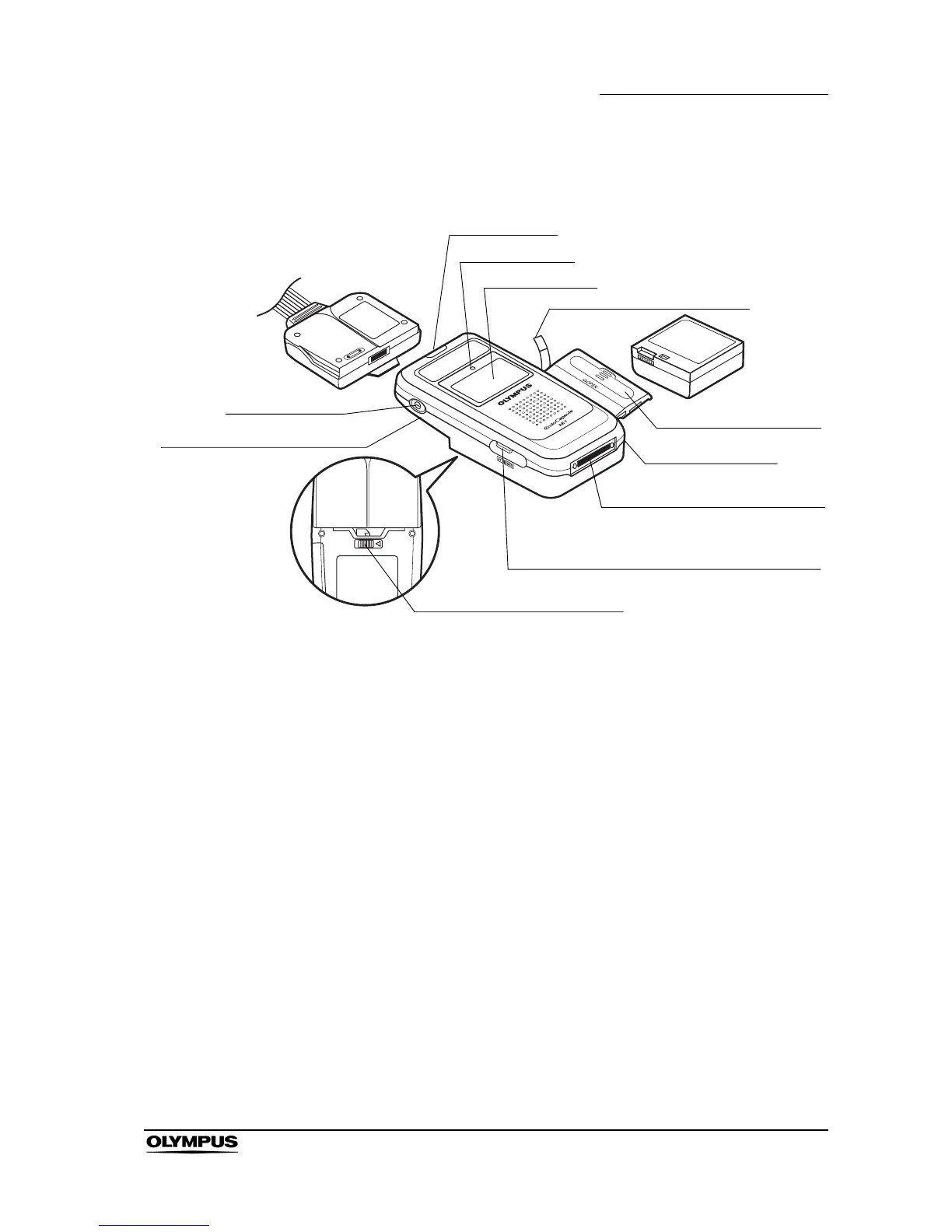

2.4 Recorder unit (OLYMPUS RE-1)
1. Indicator lamp
Indicates the reception/communication status with the capsule endoscope
and the workstation.
2. Power lamp
Illuminates green when the recorder unit is turned ON.
3. Display panel
Displays patient ID, battery pack level, etc.
4. Battery pack removal ribbon
Used for removing the battery pack. With the battery pack removal ribbon
hanging out of the battery pack slot, insert the battery pack into the battery
slot.
5. Battery pack slot cover
Cover for the battery pack slot to hold the battery pack.
6. Battery pack slot
Insert the battery pack here. To remove the battery pack, pull the ribbon
located inside the slot.
7. Recorder unit cradle connector
Inserted into the recorder unit connector on the recorder unit cradle.
10. Antenna lead set connector
3. Display panel
7. Recorder unit cradle connector
6. Battery pack slot
8. Real time viewer cable connector (rubber cap)
9. Antenna lead set eject button
11. Power switch
1. Indicator lamp
(on backside)
(on backside)
2. Power lamp
5. Battery pack slot cover
4. Battery pack removal ribbon
