12

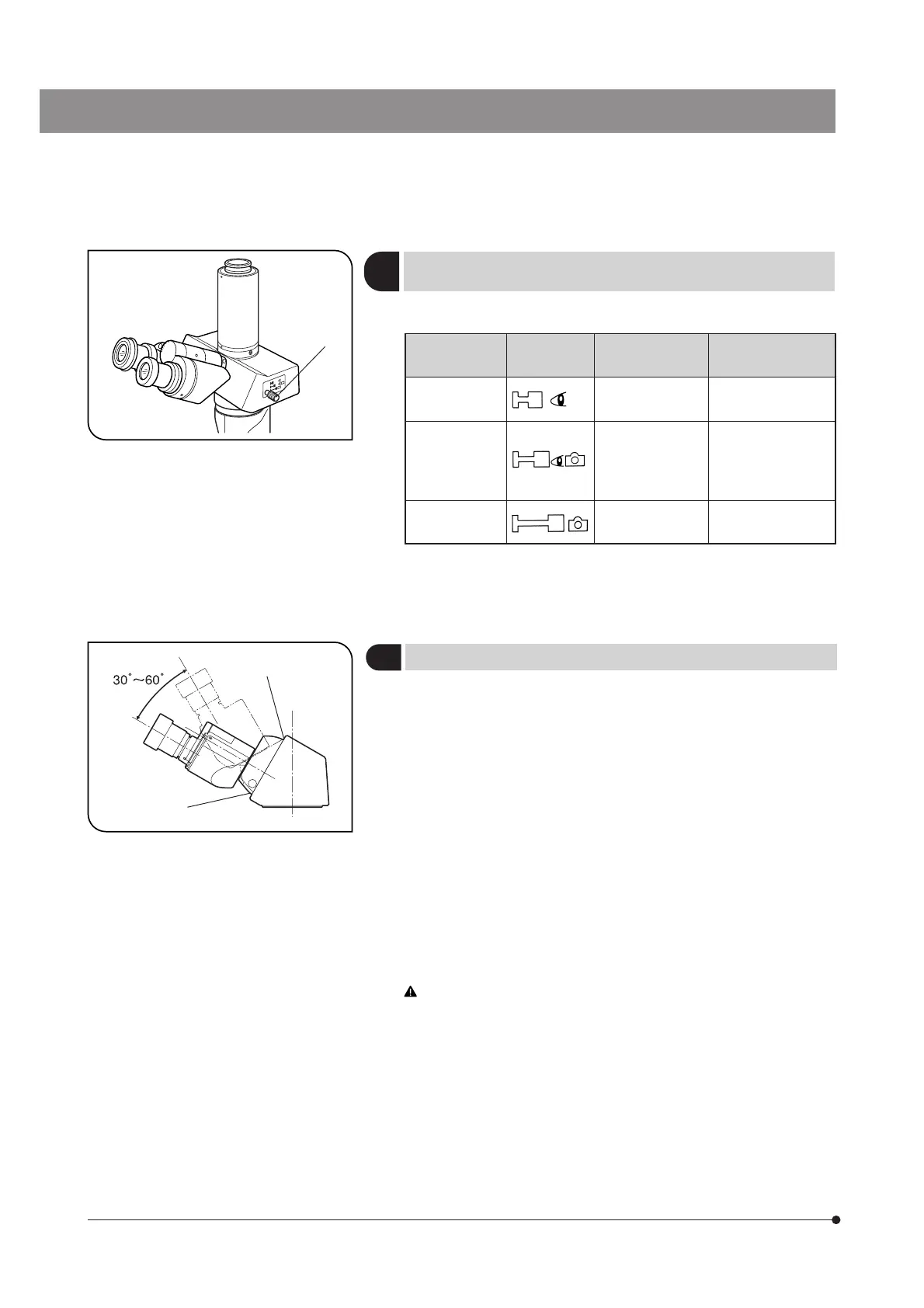

Fig. 18
5
Selecting the Light Path for the Observation
Tube (U-TR30-2 trinocular tube only)
(Fig. 18)
Move the light path selector knob @ to select the required light path.
#When using the U-CTR30-2 trinocular tube, the light path selection
is not available and the intensity ratio is fixed to 50% for binocular
eyepieces and 50% for TV/photo light path.
Fig. 19
6
Adjusting the Tilt
(Fig. 19)
}When using the tilting binocular tube, adjust the height and tilt of the
observation tube to obtain the most comfortable viewing position.
Holding the binocular section with both hands, raise or lower it to the
desired position.
· U-CTBI/CKX-TBI: 30 to 60°
· U-TBI3: 5 to 35°
#Never attempt to force the binocular section past the upper or lower
stop position. Applying excessive force could destroy the limiting
mechanism.
#Tilt adjustment is possible with specified eyepieces. Combination
with any other eyepiece will result in insufficient illumination at the
periphery of the field of view.
· U-CTBI/CKX-TBI: Provided eyepieces only.
· U-TBI3: WHN10X only.
When adjusting the tilt of the U-CTBI, be careful not to have your
fingers caught by the spaces @ between the binocular assembly
and cover.
@
Light Path
Selector Knob
Symbol Intensity Ratio Applications
Pushed in 100% for binocular
eyepieces
Observation of dark
specimens
Middle position 20% for binocular
eyepieces, 80% for
TV/photography
Observation of
bright specimens,
photography, TV
observation
Pulled out 100% for TV/
photography
Photography, TV
observation
@
@
To Next Page
