PHOTOMICROGRAPHY
}Use the U-CTR30-2 or U-TR30-2 trinocular tube for photomicrography, TV (video) camera observation or digital camera shooting.
The trinocular tube allows the U-SPT or other TV adapter (which may also use an additional camera adapter) to be mounted on it.
For details, also refer to the instruction manual for the modules used.
1

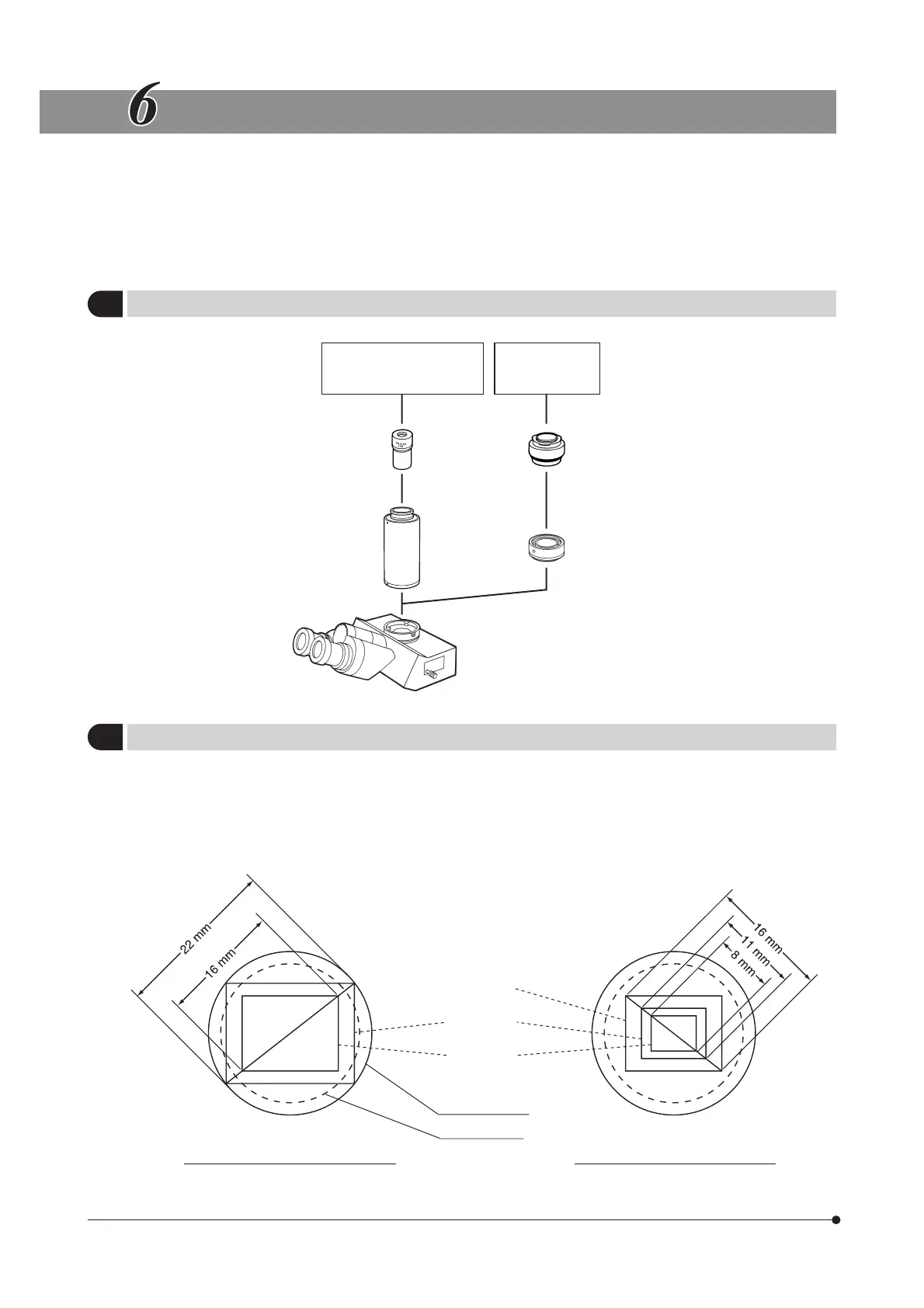

Photomicrography System Chart
Photomicrography unit
2
Selecting the TV Adapter Magnification
1 in. CCD
2/3 in. CCD
1/2 in. CCD
When the 0.5X TV adapter is used
When the 1X TV adapter is used
The magnification of the TV adapter to be used is determined by the size of the CCD incorporated in the TV camera or
digital camera.
When using the WHN10X eyepieces with a field number of 22 (or the WHB10X eyepieces with a field number of 20), the
shooting range varies according to the CCD size as shown in the diagram below.
WHN10X: FN 22
WHB10X: FN20
TV camera or
digital camera
PE photo lens Camera mount adapter
Straight photo tube
U-SPT
TV adapter
Trinocular tube
U-CTR30-2
*
U-TR30-2
* The U-TV1X TV adapter can-
not be attached. Always use
the U-TV1X-2.
