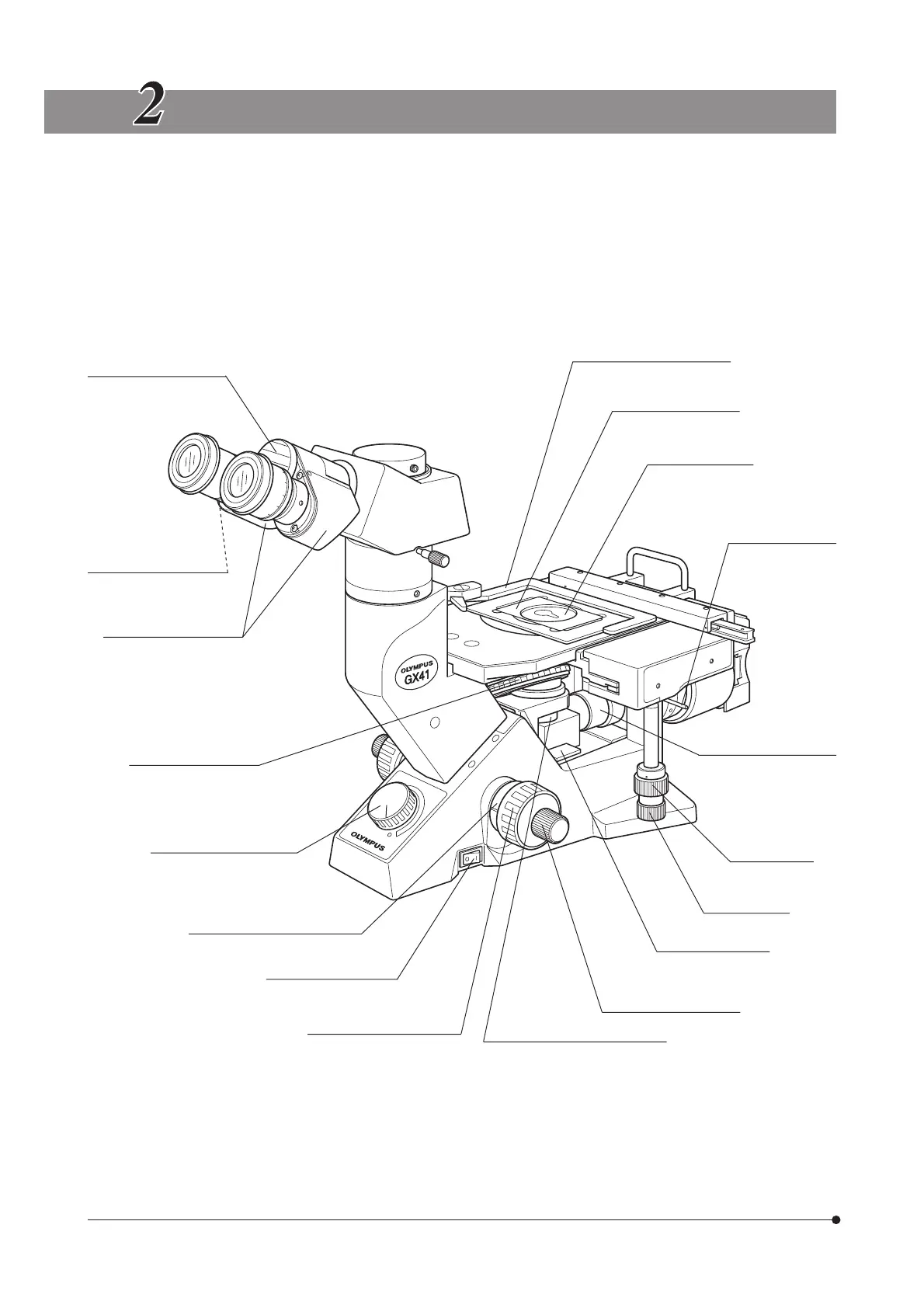

CONTROLS
} If the microscope has not been assembled yet, see chapter 10, “ASSEMBLY” (pages 21 to 24) first.
9 Interpupillary distance
scale (Page 9)
9 Diopter adjustment
ring (Page 10)
9 Binocular observation
tube (Page 9)
6 Revolving nosepiece
8 Brightness control knob
(Page 6)
Coarse tension adjustment ring
(Page 6)
1 Main switch (Page 6)
7 Coarse adjustment knob
(Page 6)
5 Specimen holder (Page 7)
4 Stage plate (Page 7)
Stage plate holder
a Aperture iris
diaphragm lever
(Page 14)
3 Filter holder (Page 13 & 15)
Accommodates the
polarizer and various
filters.
Y-axis feed ring
(Page 7)
X-axis feed ring
(Page 7)
Dummy slider
Accommodates the
2 analyzer.
7 Fine adjustment knob
Dust protection glass (Page 14)
