9
GX53
1
1

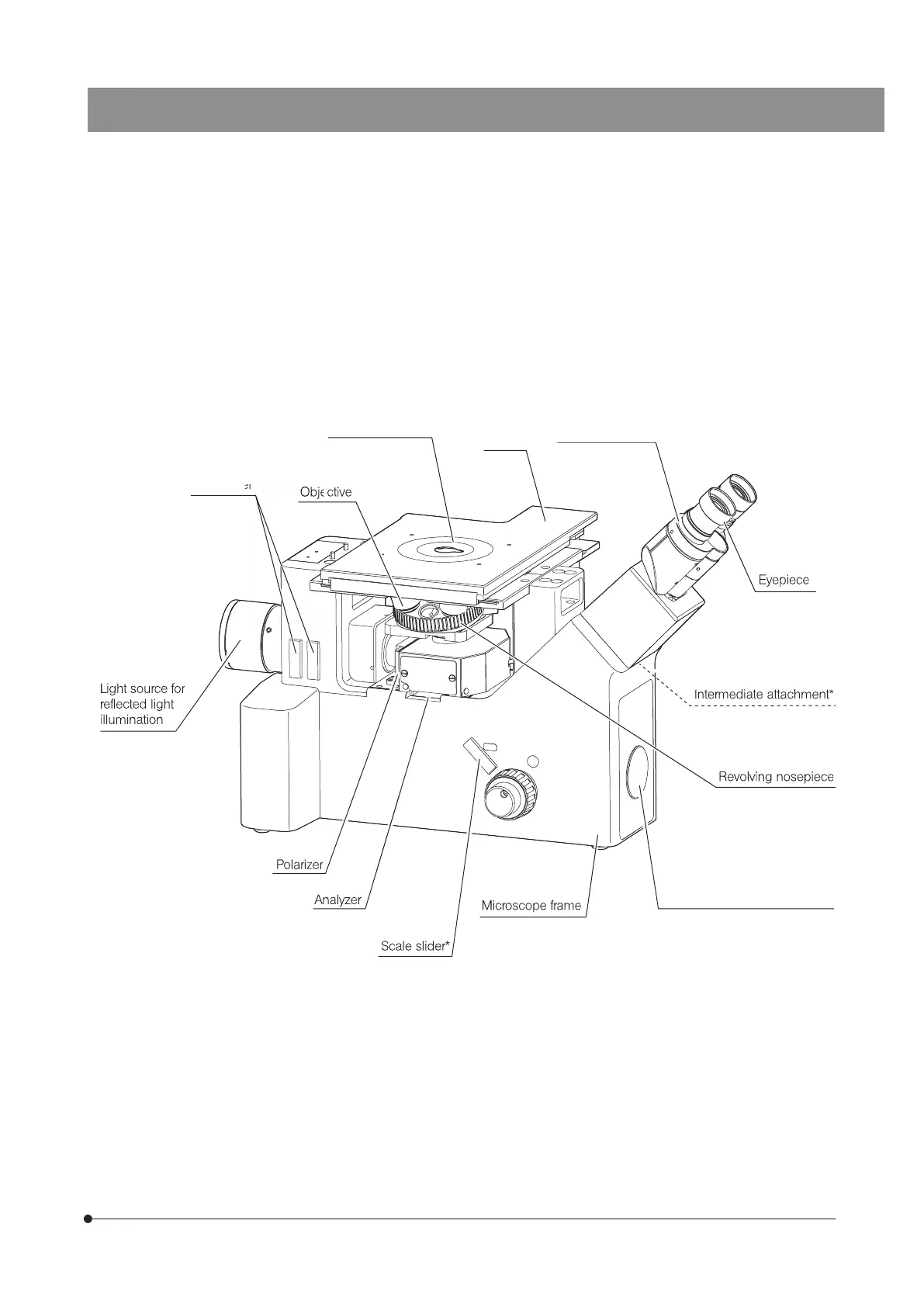

Nomenclature of units
The diagram shown in this section shows the major units only
. For units combinable to this product, see “2 List of
combinable units".
For units marked “
*
”, refer to the instruction manuals provided separ
ately.
Observation tube
Stage
Re
v
olving nosepiece
Stage center plate
Obj
e
ctiv
e
Light sour
ce for
r
eflected light
illumination
Micr
oscope fr
ame
P
olarizer
Analyzer
Scale slider*
Ey
epiece
Scale slider
*
Scale slider
*
Scale slider
Analyzer
Fr
ont port of microscope frame
Intermediate attachment*
Ey
epiece
Re
v
olving nosepiece
Re
v
olving nosepiece
Intermediate attachment*
Filter slider
Objectiv
e
Filter slider
Objectiv
e
P
olarizer
P
olarizer
P
olarizer
Objectiv
e
Light sour
ce for
r
eflected light
illumination
Micr
oscope fr
ame
14
16
Table of Contents
Table of Contents
3
Introduction
7
Safety Precautions
8
Nomenclature of Units
15
List of Combinable Units
16
Basic Operations of the Microscope (Reflected Light Brightfield/Darkfield Observations)
20
Reflected Light Brightfield/Darkfield Observation Procedures
20
Turning on the Main Switch
22
Selecting the Observation Method
23
Selecting between the Eyepiece Light Path and the Camera Light Path
24
Placing a Sample
25
Moving the Sample
25
Selecting the Objective
26
Focusing
27
Removing the Fine Focusing Knob
27
Adjusting the Tension of the Coarse Focusing Knob
27
Adjusting the Brightness
28
When the Reflected LED Light Source Is Combined
28
When the Halogen Lamp Housing Is Combined
28
When the Mercury Lamp Housing Is Combined
28
When the Light Source Is Combined
28
Adjusting the Observation Tube
29
Adjusting the Interpupillary Distance
29
Adjusting the Diopter
29
Using the Eye Shades
31
Adjusting the Tilting (U-TBI90 Only)
31
Adjusting the Aperture Diaphragm (AS)
32
Adjusting the Field Diaphragm (FS)
33
Using the Filter Sliders
34
Observing the Image Using the Mercury Burner
35
Various Observation Methods
36
Reflected Light Differential Interference Contrast (DIC) Observation
36
Reflected Light Simple Polarization Observation
37
Reflected Light Brightfield/Darkfield Simultaneous Observation
38
Transmitted Light Brightfield Observation
39
Transmitted Light Simple Polarization Observation
40
Using the Analyzer/Polarizer for Reflected Light Observation
41
Using the DIC Slider
42
Inserting the DIC Slider
42
Adjusting the Prism of the DIC Slider
43
Using the MIX Slider for Reflected Light Observation
44
Inserting the MIX Slider for Reflected Light Observation
44
Turning on the Illumination of the MIX Slider for Reflected Light Observation
45
Adjusting the Brightness of the Illumination
45
Selecting the Illumination Pattern
46
Adjusting the Units for Transmitted Light Observation
47
Centering the Condenser
47
Tilting of the Illumination Column
49
Flipping up the Condenser Holder
49
Image Acquisition
50
Replacement of Optical Parts
51
Replacing the Eyepiece
51
Replacing the Objective
53
Replacing the Halogen Bulb
54
Replacing the Mercury Burner
56
Replacing the Filter
60
Troubleshooting
62
Specifications
66
Optical Performance List <<UIS2 Series
68
Assembly
71
Assembly Diagram
71
Assembly Procedures
72
Attaching the Light Source
72
Attaching the Objective
74
Attaching the Revolving Nosepiece
74
Attaching the MIX Slider / DIC Slider for Reflected Light Observation
77
Attaching the Stage
78
Attaching the Observation Tube
79
Attaching the Eyepiece
79
Connecting Cables
80
Connecting the AC Adapter and Power Cord
82
Attaching the ND Filter for Darkfield Observation
83
Attaching the Illumination Column
84
Attaching the Halogen Bulb for Transmitted Light Observation
84
Attaching the Lamp Housing for Transmitted Light Observation
84
Setting the Filters
85
Attaching the Condenser
85
Adjusting the Tension of the Condenser Height Adjustment Knob
86
Attaching the Scale Slider
86
Attaching and Adjusting the Camera Adapter
87
Connection with PC
87
Preventive Inspection Sheet for Illumination Devices
88
Proper Selection of the Power Supply Cord
89
