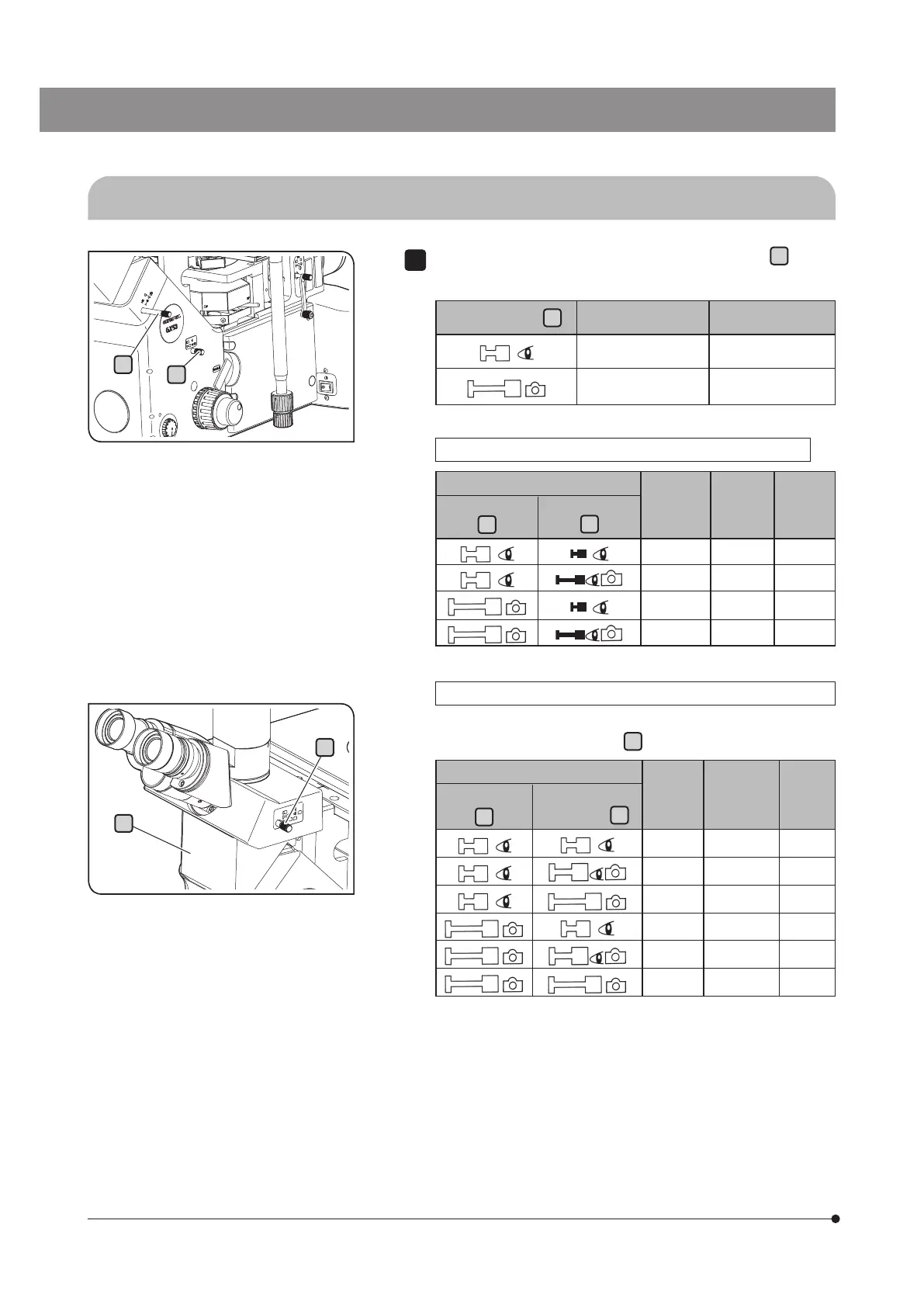

Olympus GX53 - Selecting between the Eyepiece Light Path and the Camera Light Path

18
Slide the eyepiece/camera light path selection knob
a
on the
microscope frame to select the required light path.
Knob on frame
a
Eyepiece light path Camera light path
100% 0
20% 80%
Selecting the light path when using the side port unit GX-SPU
Knob position
Eyepiece
light path
GX-SPU
Camera
Light path
Frame
Camera
light path
Knob on frame
a
Knob on GX-SPU
b
100% 0 0
50% 50% 0
20% 0 80%
10% 10% 80%
Selecting the light path when using the trinocular tube U-TR30H-2
The trinocular tube U-TR30H-2 can be attached through the
intermediate attachment IX-ATU
d
.
Knob position
Eyepiece
light path
U-TR30H-2
Camera
light path
Frame
Camera
light path
Knob on frame
a
Knob on
U-TR30H-2
c
100% 0 0
20% 80% 0
0 100% 0
20% 0 80%
4% 16% 80%
0 20% 80%
1
3-4 Selecting between the eyepiece light path and the camera light path
d
c
a
b
