GX53

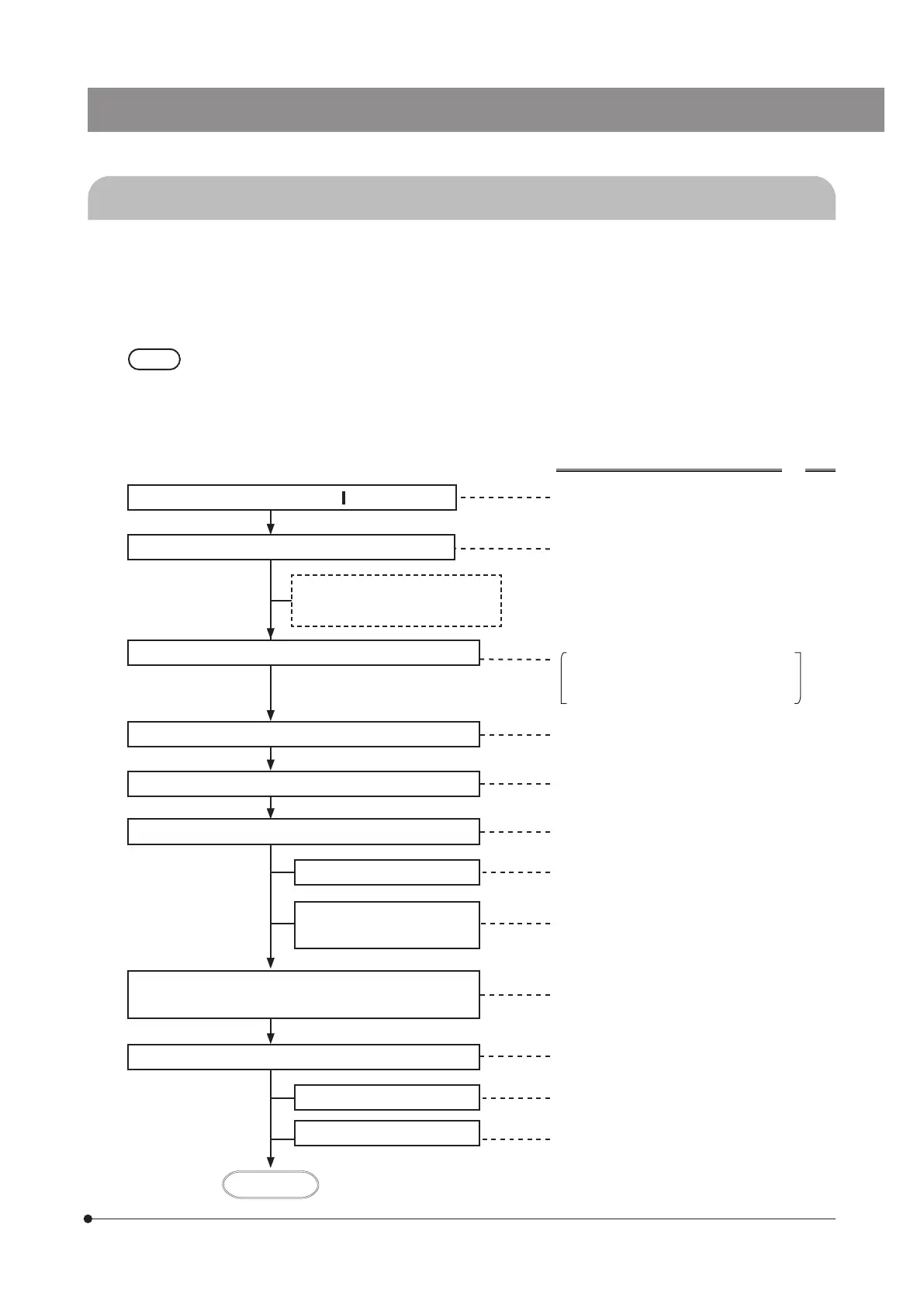

4-4 Transmitted light brightfield observation
For the transmitted light brightfield observation, following units are required.
· Transmitted illuminator column: IX2-ILL100
[LED] [Halogen bulb]
· LED light source: BX3M-LEDT
· Power supply: BX3M-PSLED
· Halogen lamp housing: U-LH100L-3 (Extension cord U-RMT is required.)
· Power supply: TH4-100/TH4-200
When using the stage GX-SVR, the transmitted illuminator column interferes with the stage and the
stage movable range in Y direction decreases by approx. 4 mm in the rear side.
If you remove the stage stopper rubber (rear side of stage), you can recover the movement distance
by 3 mm. However, as the impact to the stage increases due to no stopper rubber, move the stage in
Y-axis direction carefully.
NOTE
Select the observation light path.
Place a sample on the stage.
Engage the 10X objective in the light path.
Bring the sample into focus.
Field diaphragm lever P.42
Aperture diaphragm ring P.42
Adjust the field diaphragm.
Adjust the aperture diaphragm.
Adjust the brightness.
Adjust the brightness.
Engage the objective with the magnification to be used in
the light path and bring the sample into focus.
Observation
Remove the analyzer, polarizer or
filter sliders from the light path.
Select the brightfield (BF) observation.
Set the main switch to (ON).
Adjust the interpupillary distance.
Adjust the diopter.
Stage plate P.19
X-axis/Y-axis knobs P.19
Revolving nosepiece P.20
Main switch P.41
BF/DF selection lever P.17
Brightness control knob P.22
Eyepiece/camera light path selection
knob
P.18
Interpupillary distance adjustment scale P.23
Diopter adjustment ring P.23
Brightness control knob P.22
Operation part Page
Revolving nosepiece P.20
Coarse/Fine focusing knobs P.21
Coarse/Fine focusing knobs P.21
Light path selection knob on trinocular tube
or Observation/SP selection knob on the
side port
