46
3

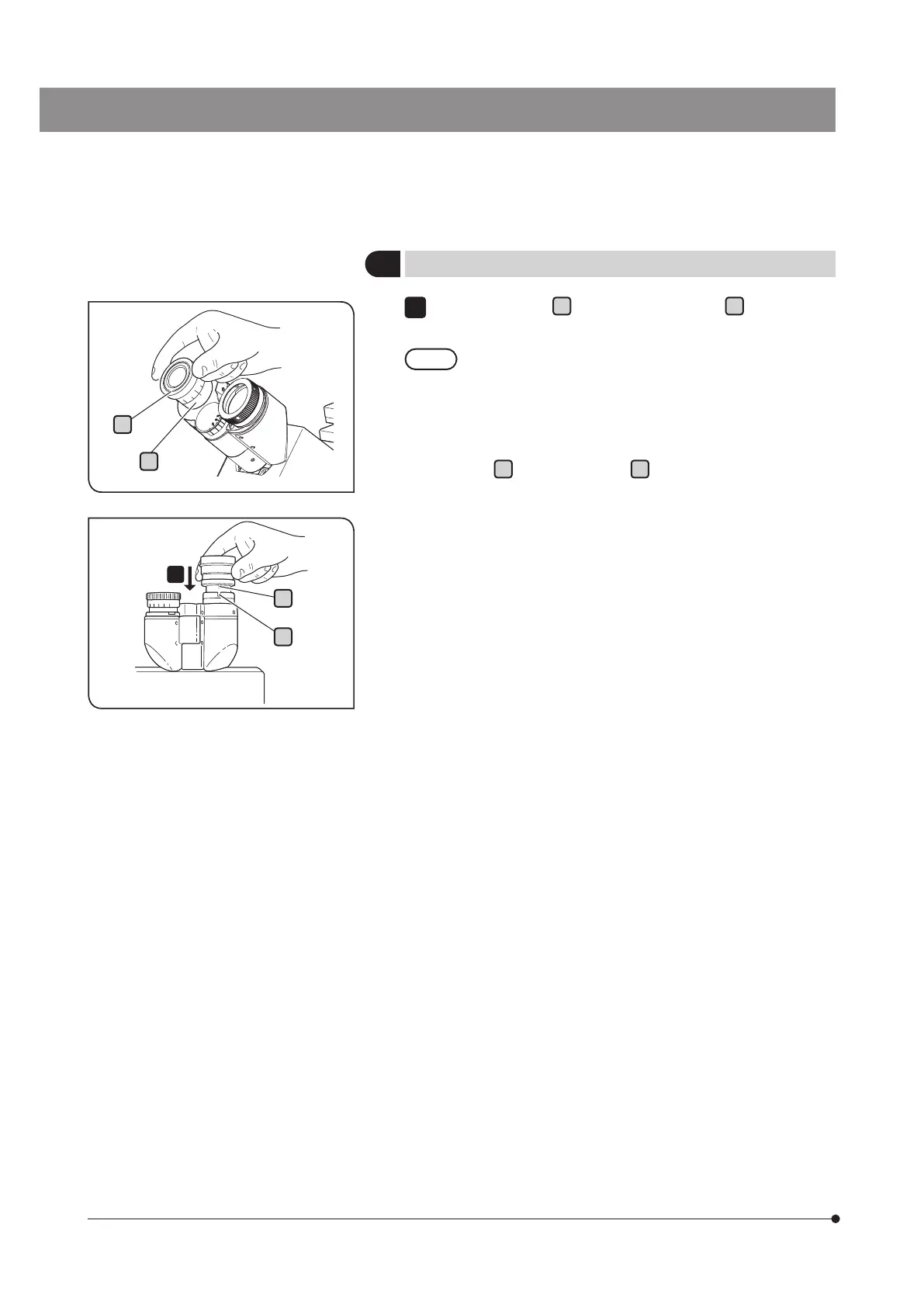

Attaching the eyepiece
d
c
Insert the eyepiece
a
into the eyepiece sleeve
b
until it touches
the end.
· As the binocular tube does not have a positioning groove,
an eyepiece equipped with a positioning pin cannot be
used with this tube.
· When using the eyepiece equipped with the micrometer,
insert the eyepiece into the right eyepiece sleeve. In this
case, attach the eyepiece so that the eyepiece positioning
pin
c
enters the groove
d
below the eyepiece sleeve.
· The super widefield eyepiece (SWH10-H) has a
positioning pin. Attach it by inserting the positioning pin to
the positioning groove of the eyepiece sleeve.
1
b
a
