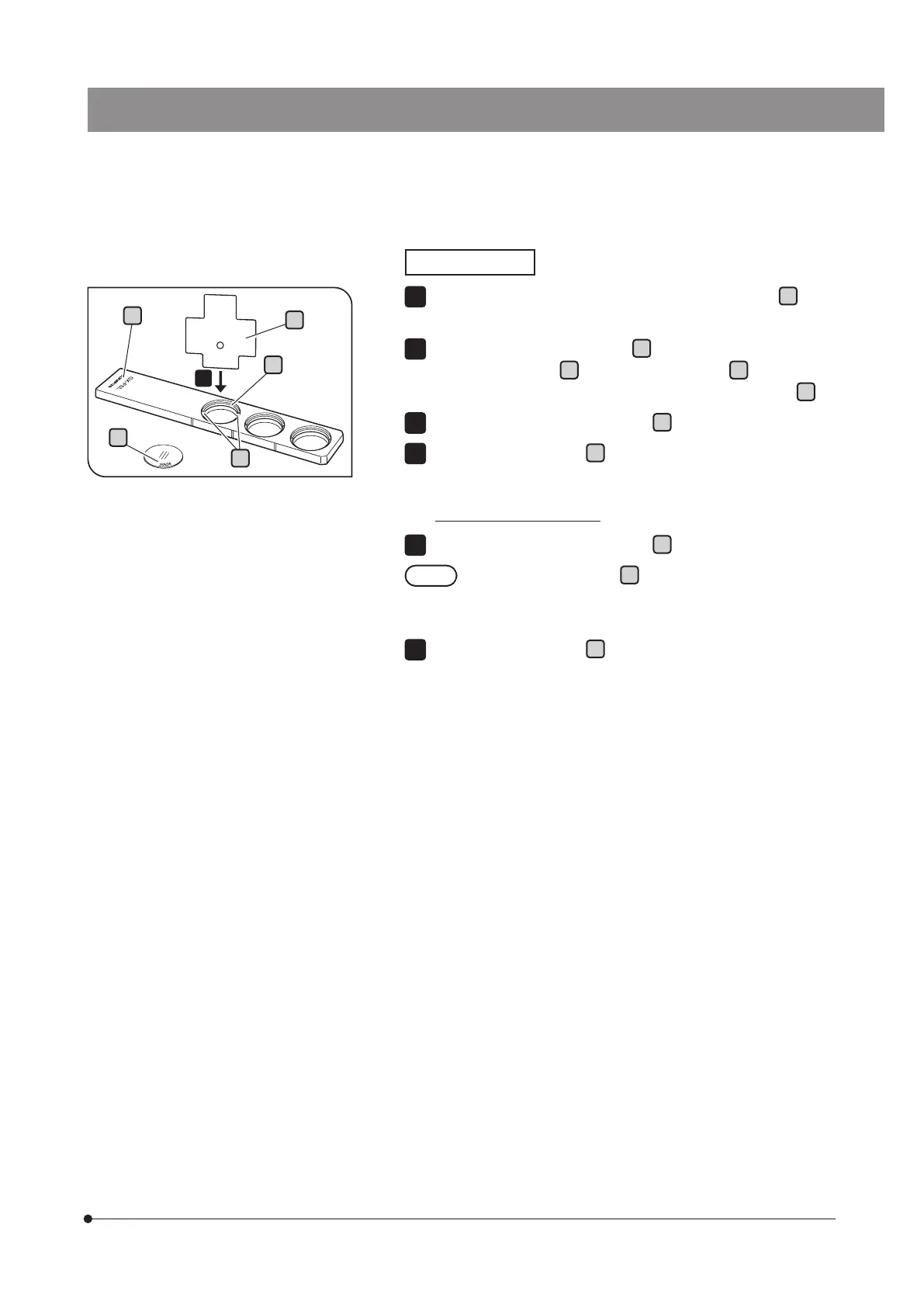

Attaching to GX-FSL
Place the filter slider on the desk with the display surface
a
of the
slider facing up.
Insert the dedicated screwdriver
d
provided with the microscope
frame into the notch
c
on the filter holding ring
b
and rotate the
screwdriver counterclockwise to remove the filter holding ring
b
.
Insert the filters with display surfaces
e
of the slider facing up.
Screw in the holding ring
b
to clamp firmly.
When using two filter sliders
Insert the filters with display surfaces
e
of the slider facing down.
The filter display surface
e
is same direction when the filter
sliders are set to the microscope frame, bacause the filter slider
is used upside down.
Screw in the holding ring
b
to clamp firmly.
