Olympus IX71 - USING THE CONTROLS; Power Supply and Microscope Frame Setup

10

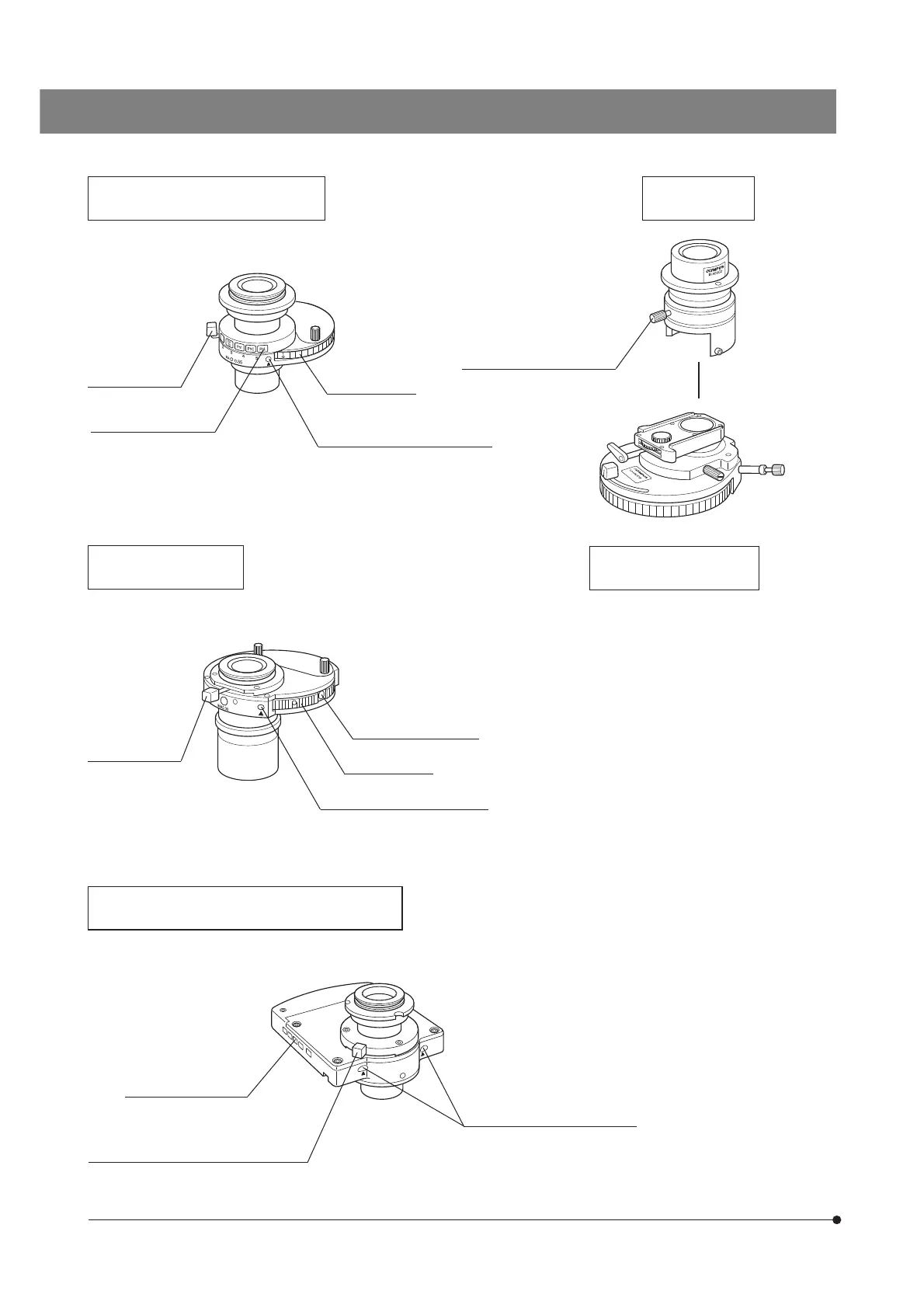

Long WD Universal Condenser
IX2-LWUCD
}This is a manually controlled condenser.
Centering knob insertion holes
(x 2)
ULWCD Condenser
IX-ULWCD
}This is a manually controlled condenser.
Aperture iris
diaphragm lever
(Page 27)
Index mounting holes
(x 2)
Turret (Page 27)
Centering knob insertion hole
UCD Adapter
IX-ADUCD
Condenser height fine
adjustment knob (Page 28)
}This is a manually controlled condenser.
Refer to the separate instruction manual
for details.
Motorized Long WD Universal Condenser
IX2-LWUCDA2
}This is a motorized condenser.
Index mounting holes
Aperture iris diaphragm lever (Page 27)
Centering knob insertion holes
Aperture iris
diaphragm lever
(Page 27)
Index mounting holes
Turret (Page 27)
Universal Condenser
U-UCD8
