Chapter 2 Controls and Their Functions
19
High definition LCD monitor OEV261H

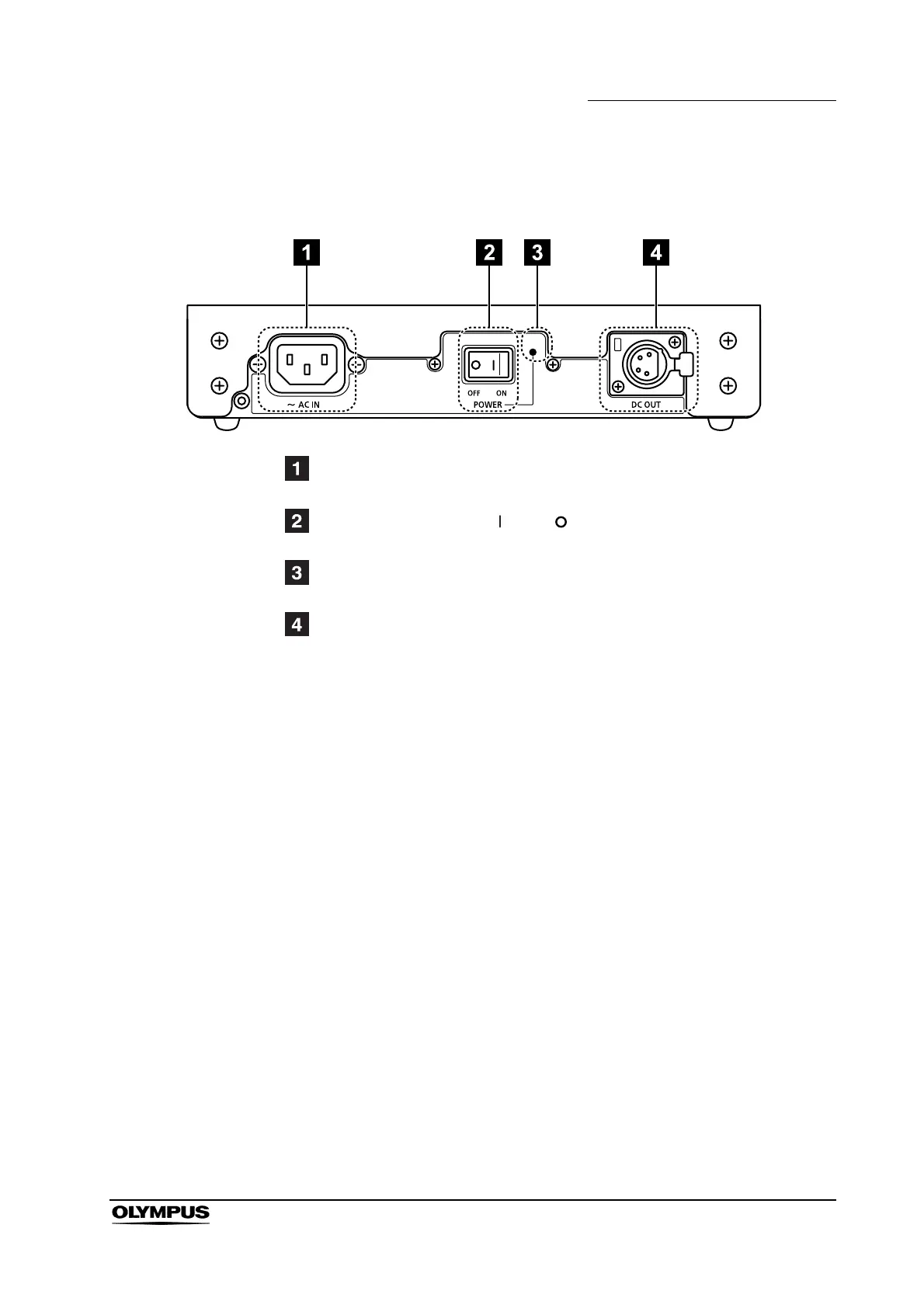

2.4 AC adapter
AC IN terminal
This is the AC input terminal.
AC POWER switch (ON: , OFF: )
This switch turns the AC adapter on and off.
AC POWER LED
This lamp lights green when the AC POWER switch is set to on.
DC OUT terminal
This is the DC output terminal.
This terminal enables connection of a DC cord.
