Chapter 7 REMOTE Specifications
75
High definition LCD monitor OEV261H
Chapter 7 REMOTE Specifications
This monitor permits REMOTE operation via GPI input terminal.
7.1 GPI terminals
GPI screen items correspond to the following terminals. Use the REMOTE
CONFIG submenu to assign functions to each terminal (page 71).
The functions assigned to each terminal operate when GND (pin 5) is connected
(ON) or open (OFF).
Operating conditions

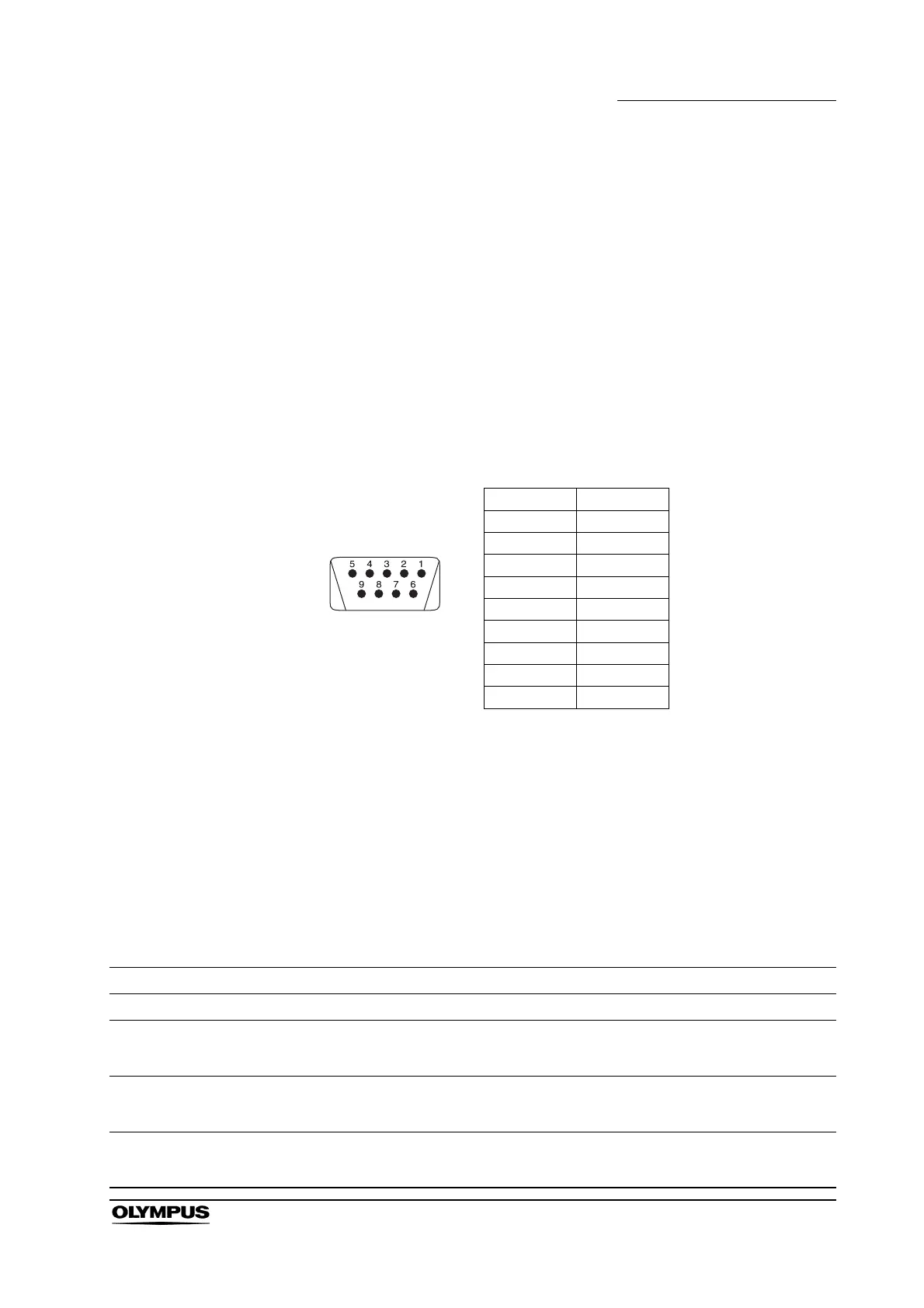

GPI input terminal (9P)
Pin number Signal
1GPI1
2GPI2
3GPI3
4GPI4
5GND
6GPI5
7GPI6
8GPI7
9GPI8
Level operation: Operates when GND is connected.
Edge operation: Operates when GND changes from open to connected or
from connected to open.
∗ If you have assigned a level operation function to more than one terminal,
the function operates as long as one of the terminals is connected. The
period between open and connected for edge operation should last longer
than 200 ms.
Assigned item Function Operating conditions
UNDEF No setting (no function assigned) –
PORT A SCAN SIZE MODE3 Switches PORT A scan size.
Level operation:
∗4
Connected: MODE3, Open: OFF
PORT A SCAN SIZE MODE5 Switches PORT A scan size.
Level operation:
∗4
Connected: MODE5, Open: OFF
PORT A SCAN SIZE MODE7 Switches PORT A scan size.
Level operation:
∗4
Connected: MODE7, Open: OFF
