Chapter 5 Screen Menu and Operation of Front Panel
41
High definition LCD monitor OEV261H

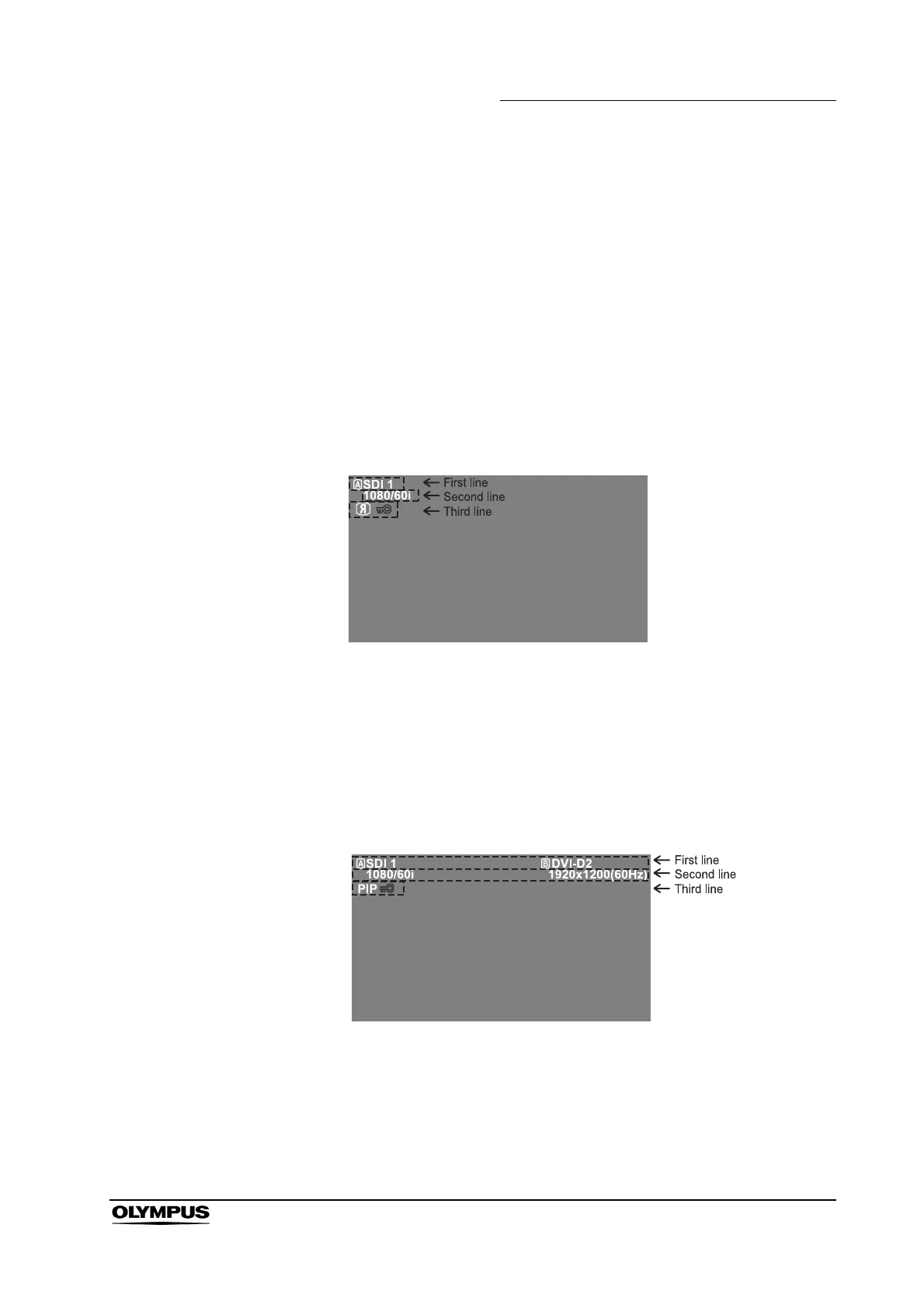

5.8 Status display
This screen appears when the power is turned On, input terminals are changed,
formats are switched, and when the MENU, FUNCTION, PRESET, and INPUT
displays are closed.
Single screen display
The first line displays the name of the input terminal of currently displayed video.
The second line displays signal format. The third line displays FLIP and control
lock status.
Dual screen display
• The first line displays the names of the input terminals for both PORT A
and B. The second line displays signal format. The third line displays
PIP, POP and control lock status.
