Chapter 6 Submenu Operations
61
High definition LCD monitor OEV261H

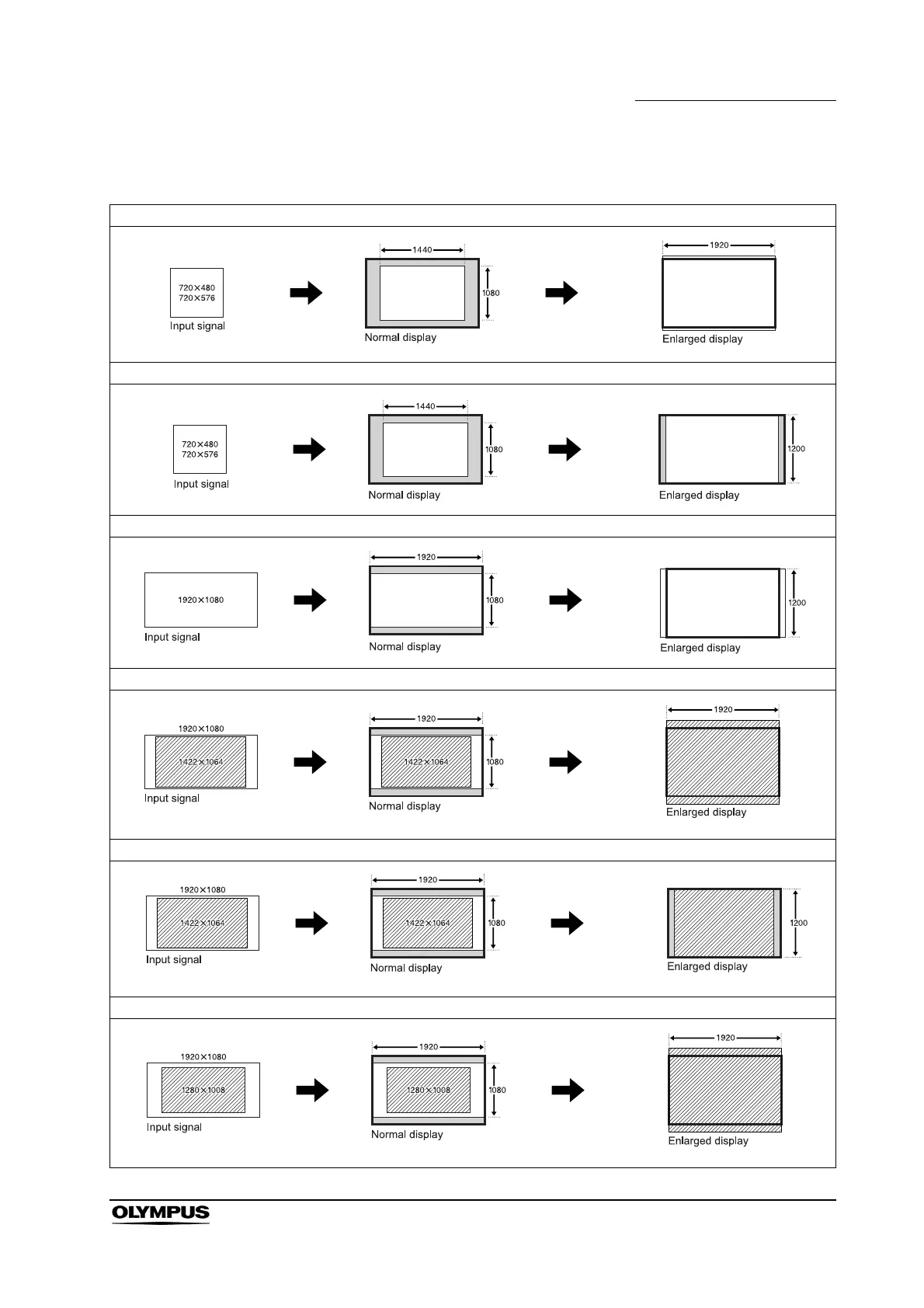

 SCAN SIZE screen mode
MODE1 Magnifies SD signal image to horizontal panel size (1920 pixels)
MODE2 Magnifies SD signal image to vertical panel size (1200 pixels)
MODE3 Magnifies HD signal image to vertical panel size (1200 pixels)
MODE4 Magnifies special area 1 (1422 × 1064) of an HD signal to horizontal panel size (1920).
MODE5 Magnifies special area 1 (1422 × 1064) of an HD signal to vertical panel size (1200).
MODE6 Magnifies special area 2 (1280 × 1008) of an HD signal to horizontal panel size (1920).
