Olympus OEV261H - Output Specifications

Chapter 6 Submenu Operations
67
High definition LCD monitor OEV261H
Operation
1.
Press [ENTER] and the set submenu setting turns green.
2. Use to change the set value.
Use [ENTER] to confirm the change; the submenu selection screen
reappears.
Use [MENU] to cancel the change; the submenu selection screen
reappears.

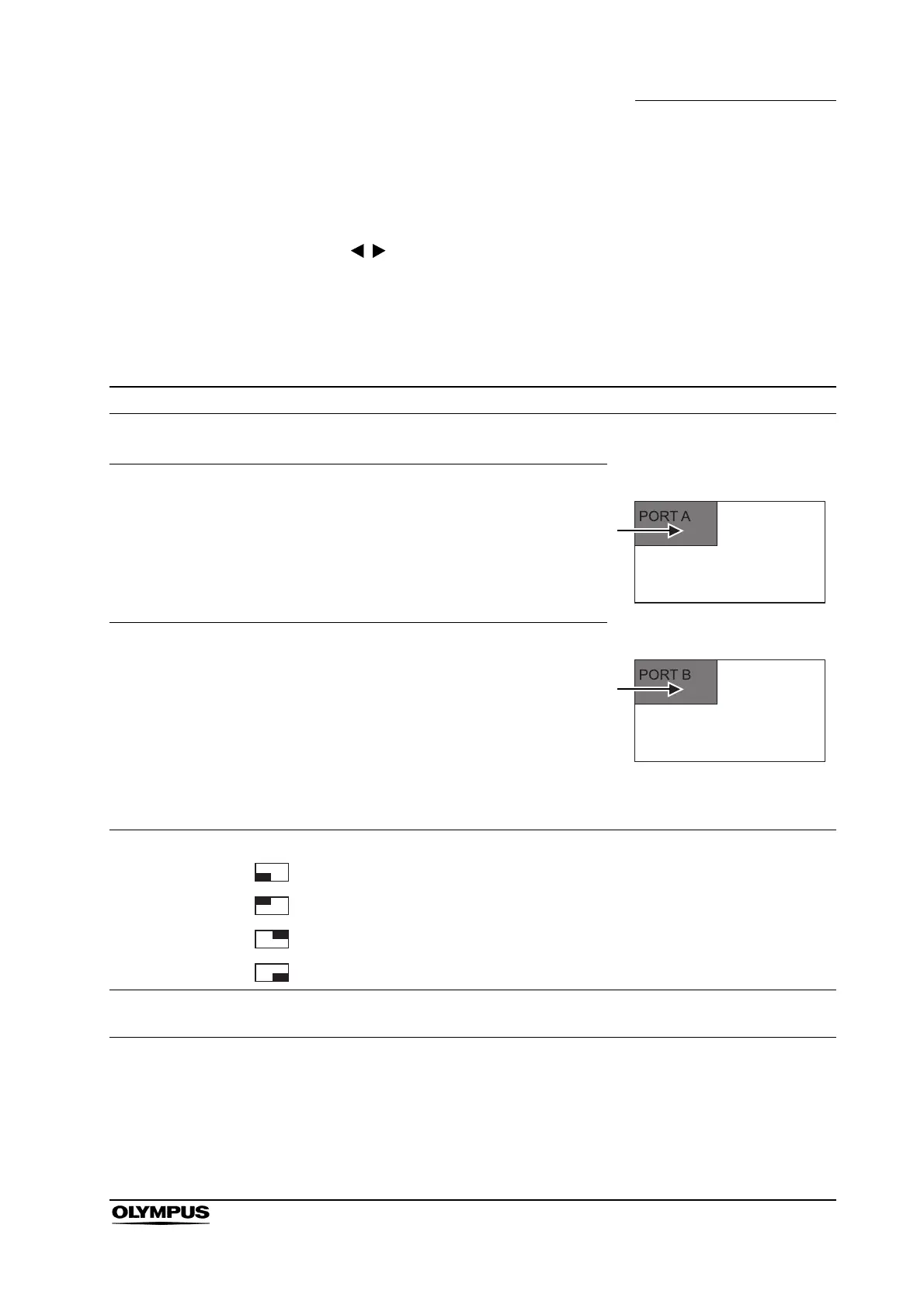

Submenu Description
PIP (Picture in
Picture)
In dual screen display, the PORT B screen appears in the
PORT A screen.
∗1
PORT A
DISPLAY MODE
Sets the PORT A small screen mode in PIP mode.
• NORMAL (default value)...Normal screen display
∗2
• 4:3...Video reproduced from the input signal
(aspect ratio 4:3)
∗3
• 5:4...Video reproduced from the input signal
(aspect ratio 5:4)
∗3
PIP screen
PORT B
DISPLAY MODE
Sets the PORT B small screen mode in PIP mode.
• NORMAL (default value)...Normal screen display
∗2
• 4:3...Video reproduced from the input signal
(aspect ratio 4:3)
∗3
• 5:4...Video reproduced from the input signal
(aspect ratio 5:4)
∗3
• SQUARE...Video reproduced from the input signal.
∗3
Enabled when square pattern is selected.
PIP screen
DISPLAY
POSITION
Sets the PORT B screen display position in PIP mode.
• (default value)..... Bottom left of the screen
• ............................ Top left of the screen
• ............................ Top right of the screen
• ............................ Bottom right of the screen
POP (Picture out
Picture)
In dual screen display, the PORT A screen appears to the
left of the PORT B screen.
