Chapter 3 Installation and Connection
29
ELECTROSURGICAL UNIT PSD-30

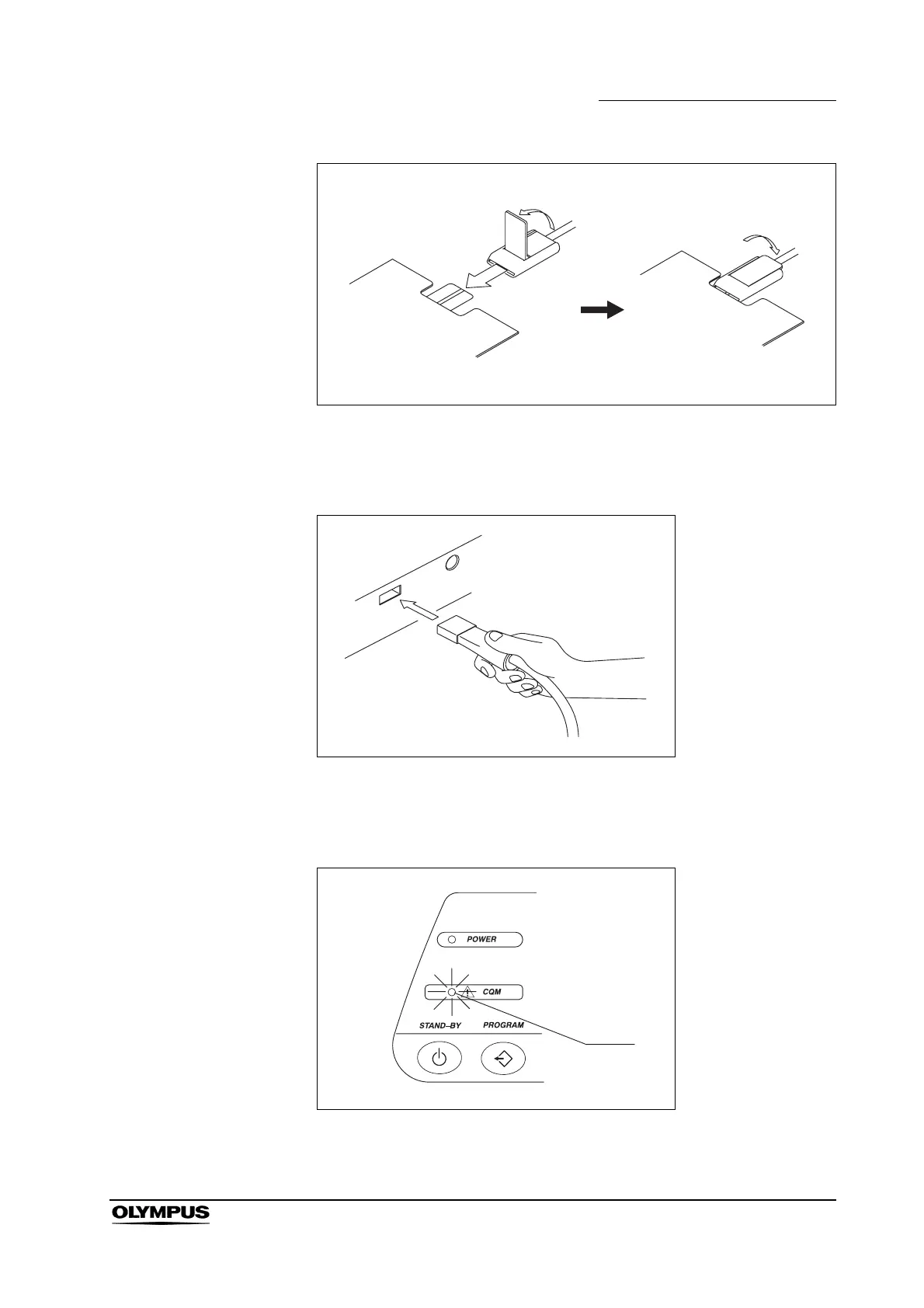

Figure 3.3
3. Fully insert the unit side plug of the P cord into the patient plate connector
on the front panel of the electrosurgical unit (see Figure 3.4).
Figure 3.4
4. When a split-type patient plate is connected, verify that the CQM indicator is
illuminated after the electrosurgical unit is turned ON.
Figure 3.5
Lights
