Chapter 7 Troubleshooting
71
ELECTROSURGICAL UNIT PSD-30
Output time error

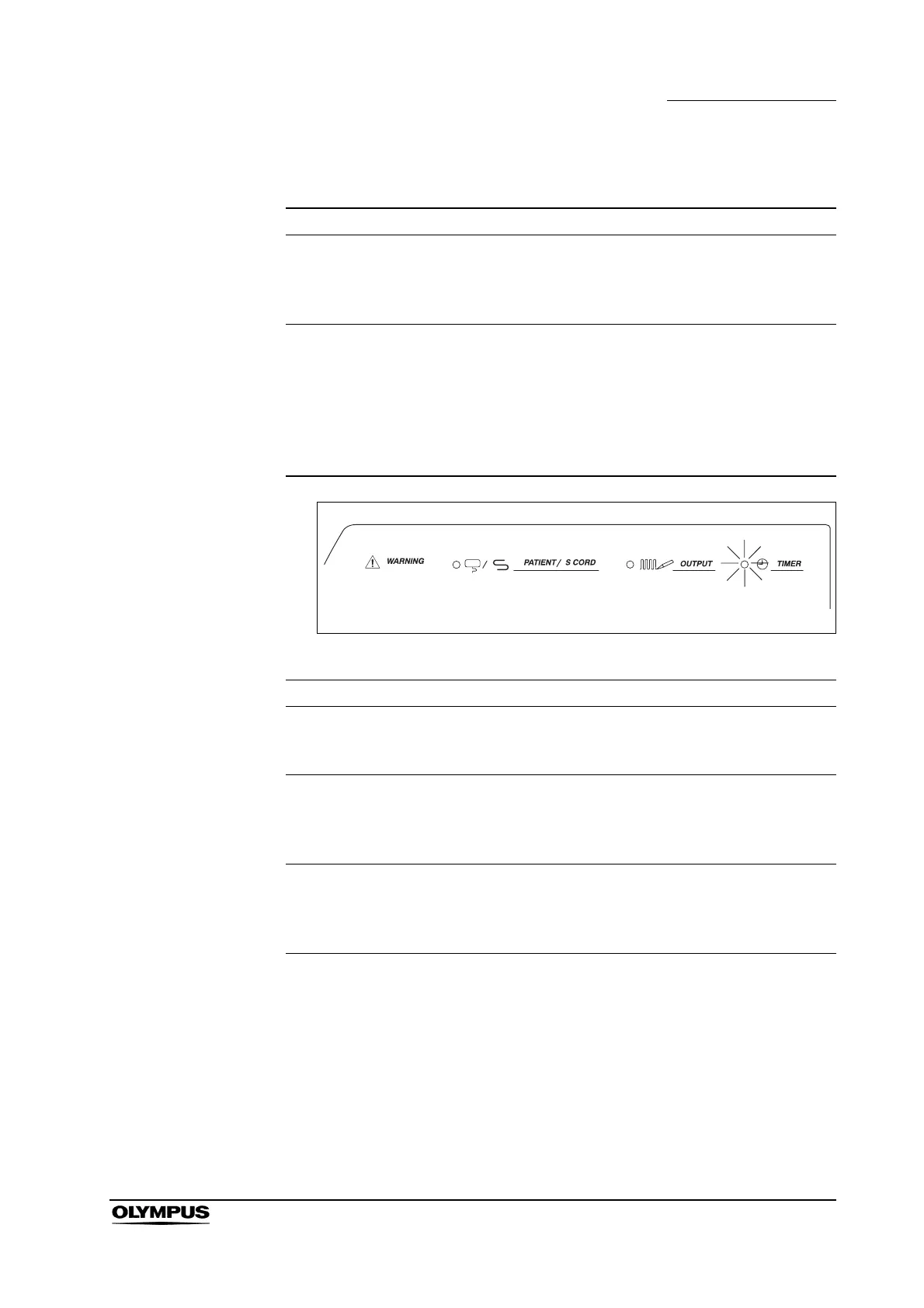

Figure 7.3
Irregularity description Possible cause Solution
The output time warning
indicator flashes and alarm
sound is made.
The output continues for
more than 15 sec.
Immediately stop the
output. If the indicator
remains light, turn the
power OFF.
The output time warning
indicator lights constantly
and the alarm sounds
intermittently with 5 second
intervals. The high
frequency output is
stopped.
The output continues for
more than 30 sec.
Immediately stop the
output. If the indicator
remains light, turn the
power OFF.
More than 15 seconds More than 30 seconds
Output time warning
indicator
Flashes (The light of the
indicator is off when foot
switch is released.)
Lights (The light of the
indicator is off when foot
switch is released.)
Alarm sound Enable (The alarm sound
stops when the foot switch
is released.)
Intermittently for 5 second
intervals (The alarm sound
stops when the foot switch
pedal is pressed again).
High frequency output Enable Disable
(The high frequency output
enables when foot switch is
pressed again.)
