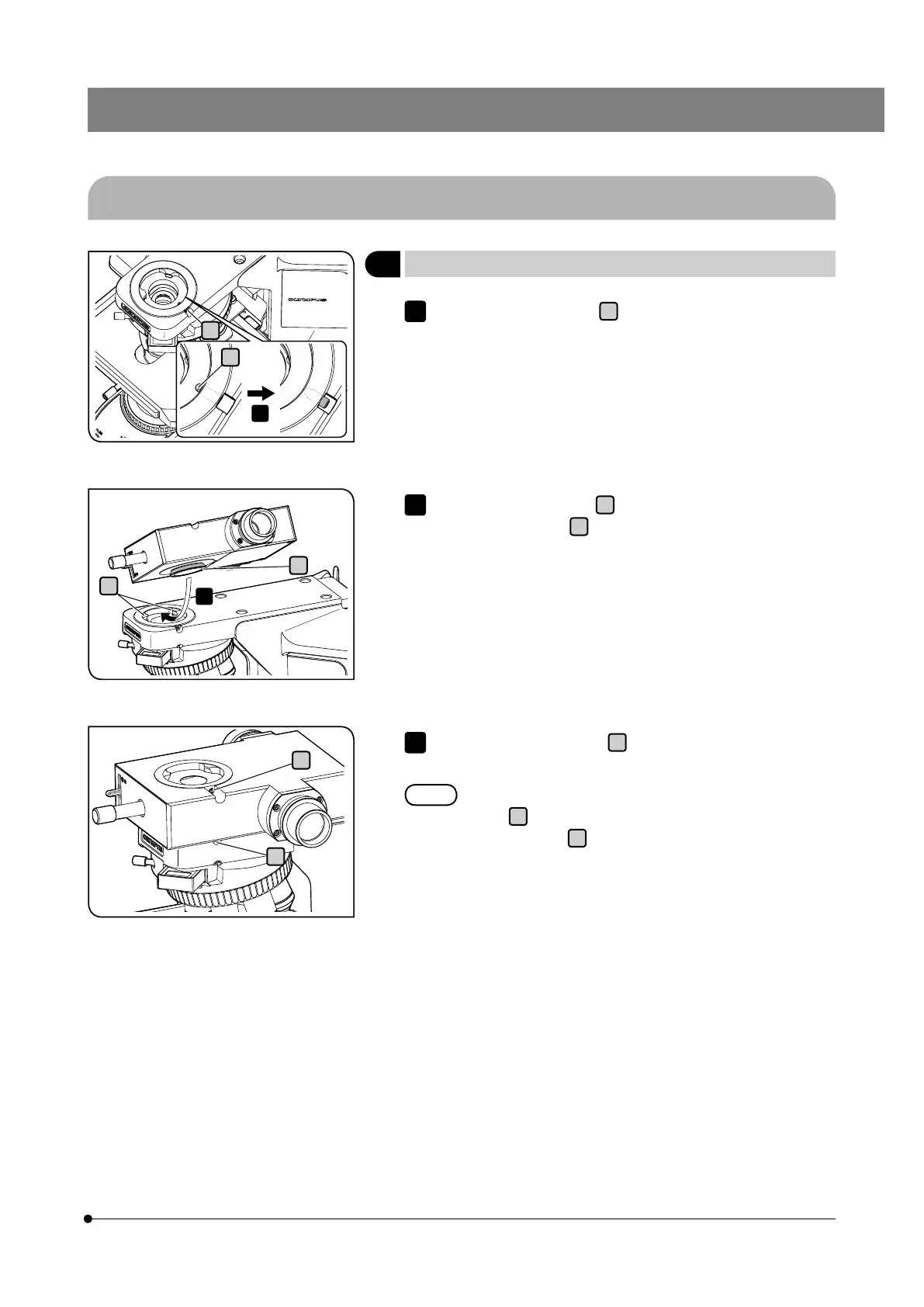

Attaching the observation attachment body
Loosen the clamping screw
a
of the standard arm (BX3-ARM) of the
microscope until the clamping screw is not viewable from above (i.e.
until there is no protrusion when touched with fingers).
1
b
5-2
Side by side observation system for 2 persons and system for 5 persons
2
Insert the circular dovetail
b
of the observation attachment body
under two protrusions
c
in the mount on the standard arm of the
microscope.
2
Tighten the clamping screw
d
of the standard arm to secure the
standard arm firmly.
Attach the observation attachment body so that the clamping
screw
d
of the standard arm of the microscope and the
clamping screw
e
of the observation attachment body are
aligned in one line perpendicularly.
3
a
a
1
c
e
d
