5-5 Extending to the system for 13 persons

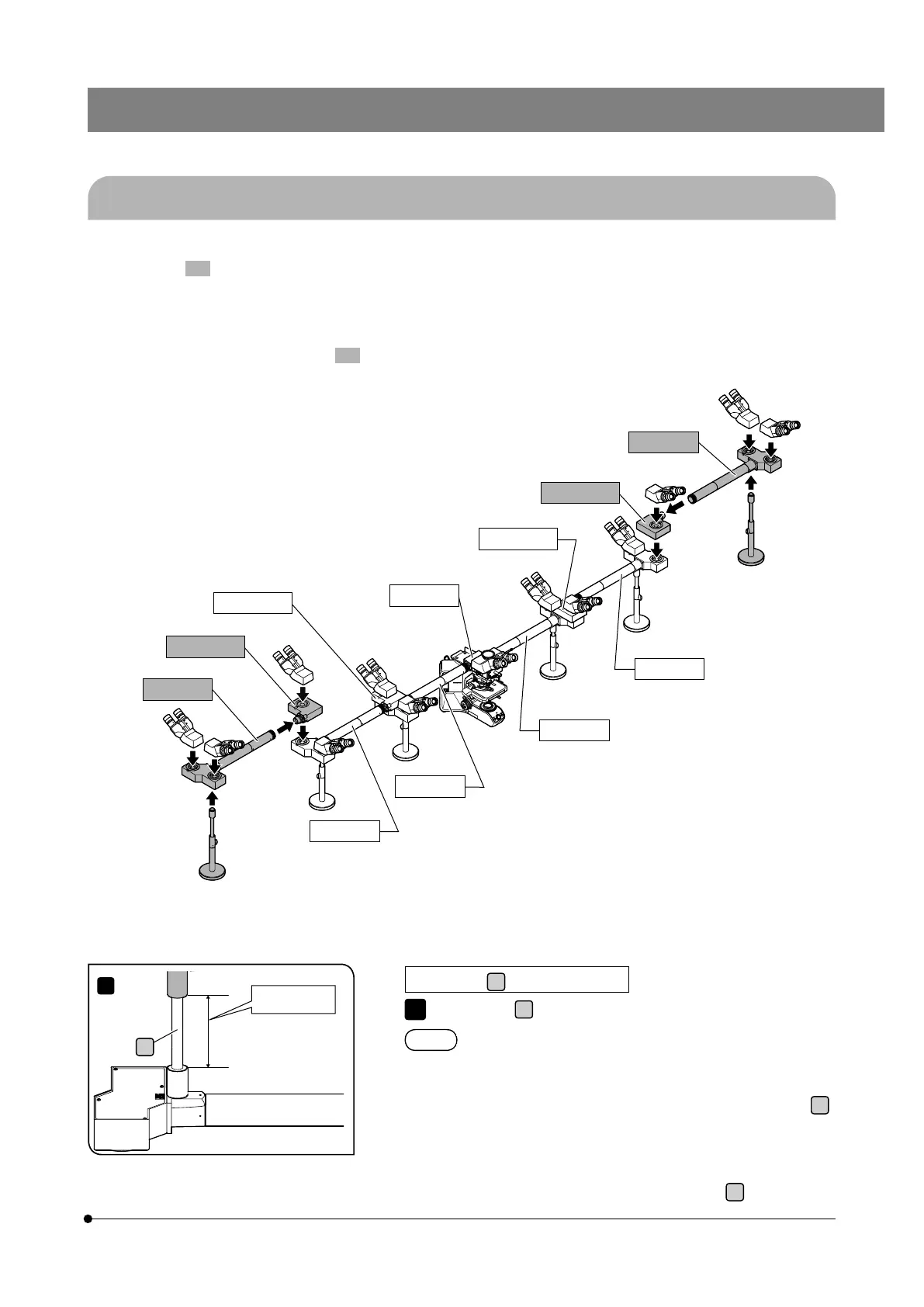

The units (gray) areas in the following diagram are BX3-MDOE and U-MDOSV. The system for 9 persons can be
extended to the system for 13 persons by attaching BX3-MDOE and U-MDOSV to two positions in total.
For assembling procedures, see "5-2 Side by side observation system for 2 persons and system for 5 persons" (page 17)
and "5-3 System for 9 persons" (page 22).
Concerning the stands assembled
(gray) areas in the following diagram, adjust the stand height written below.
U-MDOSV
U-MDOSV
U-MDOSV
U-MDOSV
BX3-MDOE
BX3-MDOE
U-MDOB3
BX3-MDOE
BX3-MDOE
U-MDOSV
U-MDOSV
119 mm
Height of the
a
portion of the stand
Height of the
a
portion of the stand.
If there is a difference in height between the desk top surface
where the microscope frame is installed and the desk top
surface where U-MDOSV to be used for extending to the
system for 13 persons is installed, adjust the length of the
a
portion of the stand. For example, if the height difference is 5
mm (if the desk top surface of the microscope frame is higher
than the desk top surface of U-MDOSV (extension) to be used
for extending to the system for 13 persons),
a
will be 124mm.
