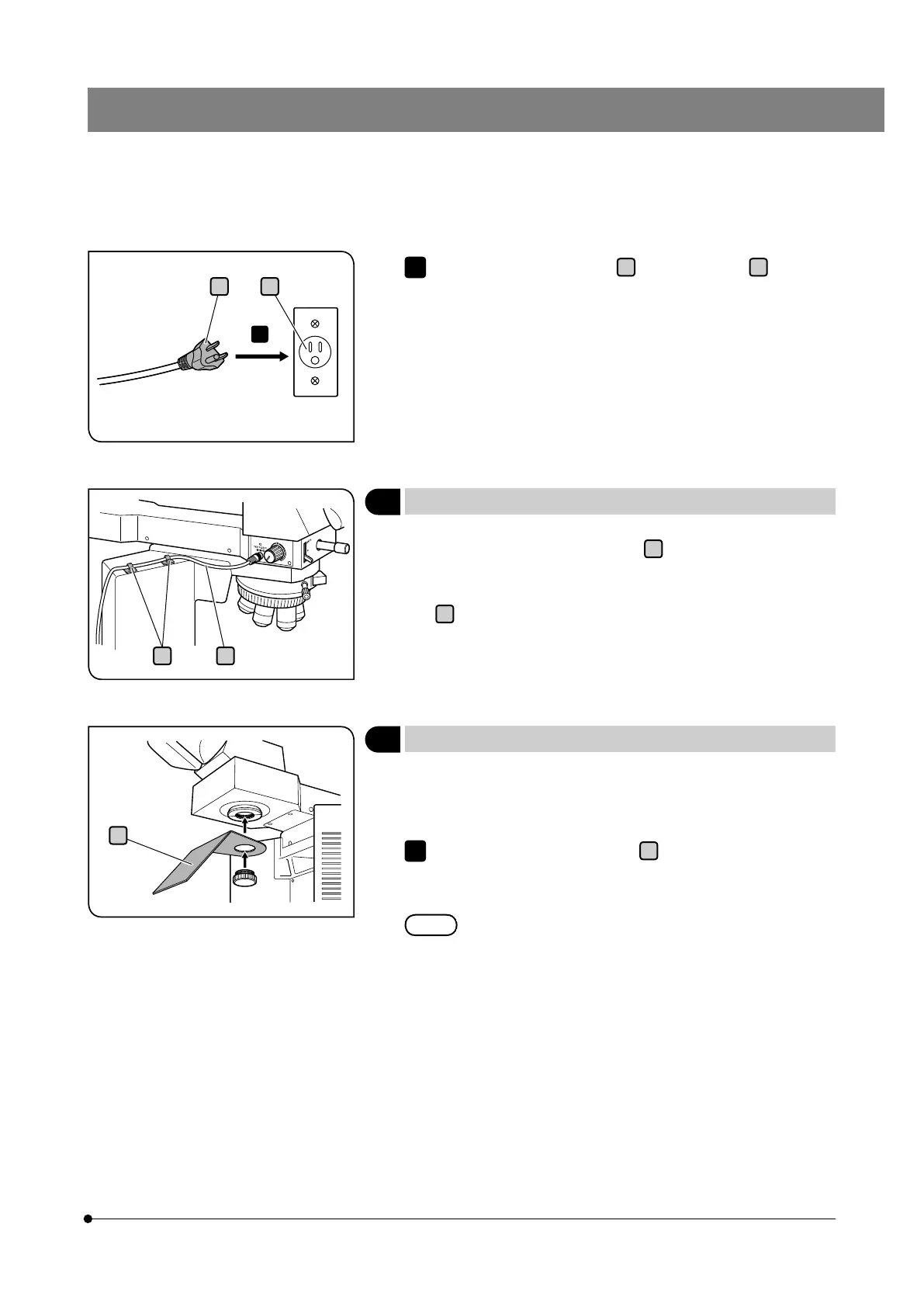

Olympus U-MDOB3 - Attaching the Cord Stopper; Attaching the Heat Protection Shield (Option)

31
Connect the power cord’s plug
e
to the power outlet
f
on the wall.
3
e f
3
2
Attaching the cord stopper
3
Attaching the heat protection shield (Option)
To prevent the AC adapter cord
a
from getting in the way of
microscope operation and from contacting the lamp housing, peel
off the backing paper from the stickers of the provided cord stopper
b
(2 pcs.) and attach them. Be sure to clean the place to attach the
cord stopper with absolute alcohol, etc. in advance.
When using the face to face observation system for 2 persons, if the
heat from the lamp housing bothers observation, attach the optional
heat protection shield (BH2-DO-HPS).
Attach the heat protection shield
a
to the screw hole under the
assistant observer’ position of the observation attachment body (U-
DO3).
This screw hole will also be used for attaching the stand.
1
TIP
ab
a
