Attaching U-MDO10R3
Attach U-MDO10R3 to the microscope frame.
For attaching procedures, see "Attaching the observation attachment
body" in "5-2 Side by side observation system for 2 persons and
system for 5 persons" (page 17).
1

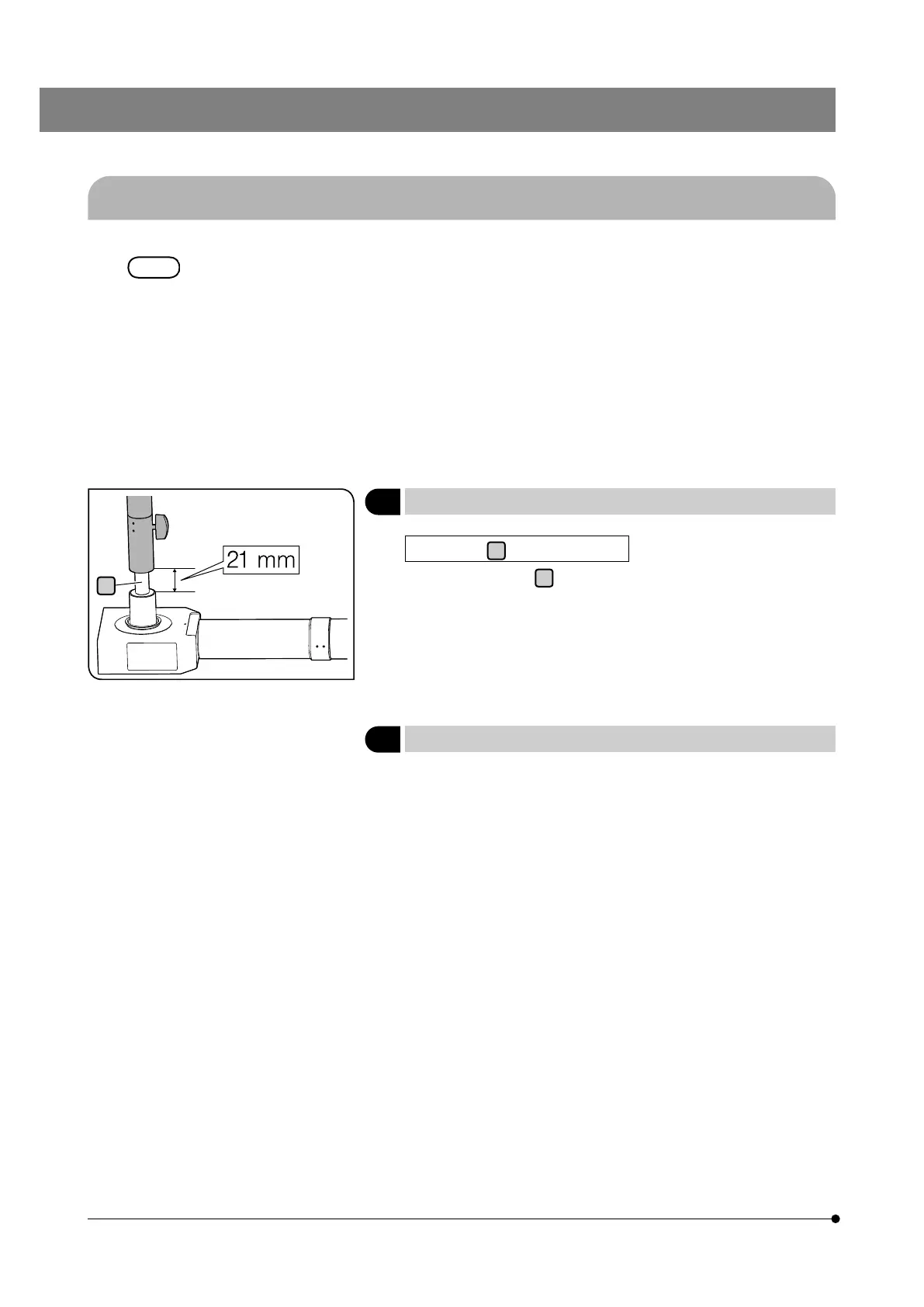

Attaching the stand
Height of the
a
portion of the stand
The height of the
a
portion of the stand to be adjusted after screwing
the stand into U-MDO10R3 is 21 mm.
For attaching procedures, see "Attaching the stand" in "5-2 Side by
side observation system for 2 persons and system for 5 persons"
(page 18).
5-4 System for 10 persons
The large desk (1250 to 1400(W) x 1100 to 1250(D) mm) is required for assembling and operating this system.
Prepare the sufficient installation space.
