5
1 Configuration of the discussion system and orientation of observed images

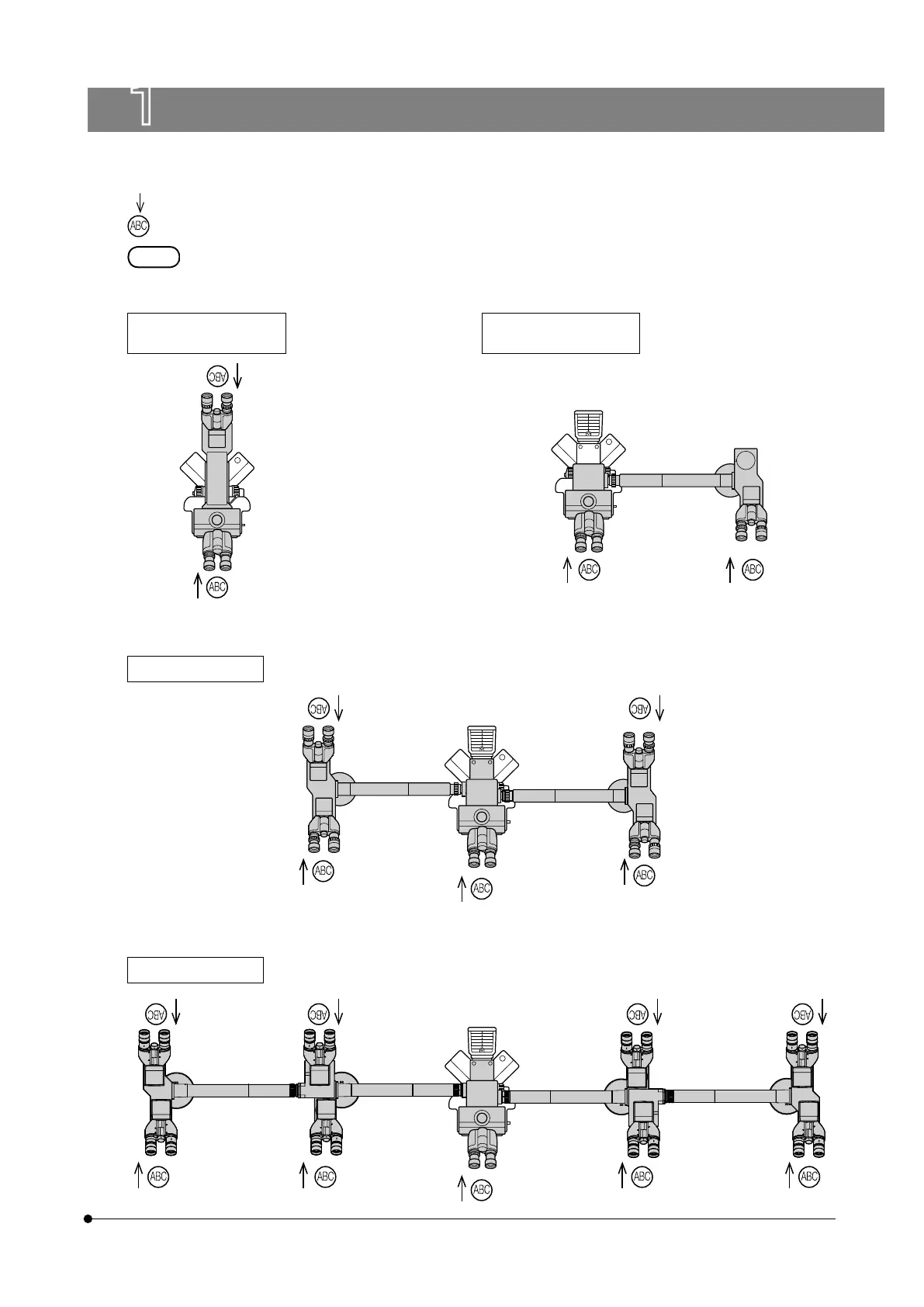

The following illustration shows the top view of the discussion system.
expresses the orientation of the line of sight of the observer.
expresses the orientation of the image observed through each eyepieces.
If the observation tubes are not attached in the orientation as shown in the illustration, the orientation of the
image rotates.
Assistant
observer
Main
observer
Face to face observation
system for 2 persons
Main
observer
Assistant
observer
Side by side observation
system for 2 persons
Main
observer
Assistant
observer
Assistant
observer
System for 5 persons
Main
observer
Assistant
observer
Assistant
observer
Assistant
observer
Assistant
observer
System for 9 persons
