2.5 Optional components
23
UCR INSTRUCTION MANUAL
Ch.2

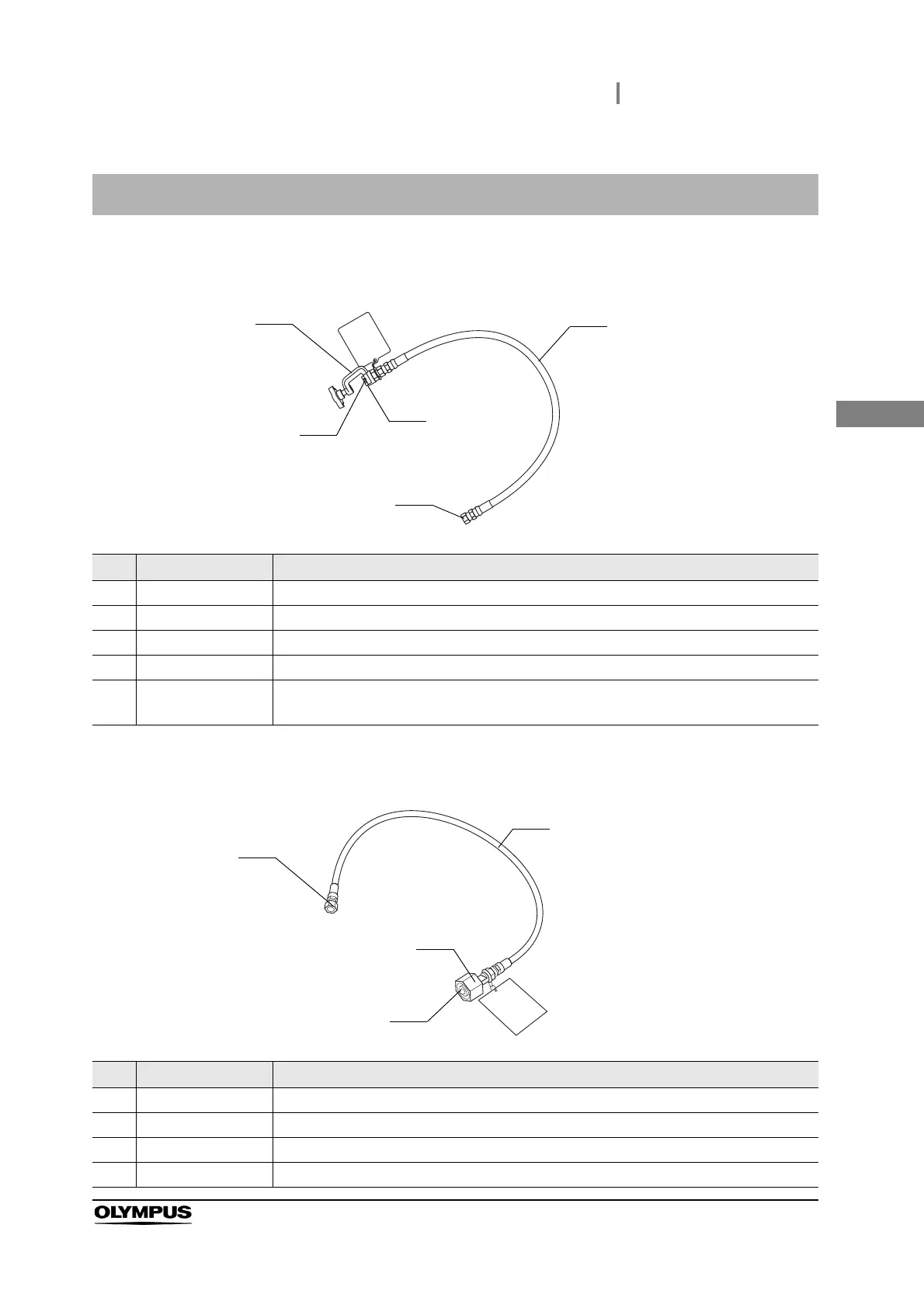

 Cylinder hose (PIN, MAJ-1080)
 Cylinder hose (DIN, MAJ-1081), Cylinder hose (ISO, MAJ-1082)
2.5 Optional components
No. Nomenclature Description
1 Clamp This clamp connects the cylinder hose to the gas cylinder.
2 Packing This packing prevents the leak of CO
2
gas between the gas cylinder and cylinder hose.
3 Pin Insert to the guide hole of the adapter of the CO
2
gas cylinder.
4Hose –
5 Connector Use the supplied wrench to connect this connector to the CO
2
gas inlet on the rear
panel of the endoscopic CO
2
regulation unit.
No. Nomenclature Description
1 Connector Refer to Section 3.3.
2Hose –
3 Cylinder adapter Use the supplied wrench (large) to connect to cylinder.
4 Packing (MAJ-1081) This packing prevents the leak of CO
2
gas between the gas cylinder and cylinder hose.
1
3
2
4
5
1
3
4
2
