3.6 Connecting the Gas tube (MAJ-1741), Low flow gas tube (MAJ-1742), and Extra low flow
gas tube (MAJ-1816)
33
UCR INSTRUCTION MANUAL
Ch.3
1 Connect the instrument-side connector end of the gas tube to the CO
2
gas outlet of
the endoscopic CO
2
regulation unit by turning it clockwise.

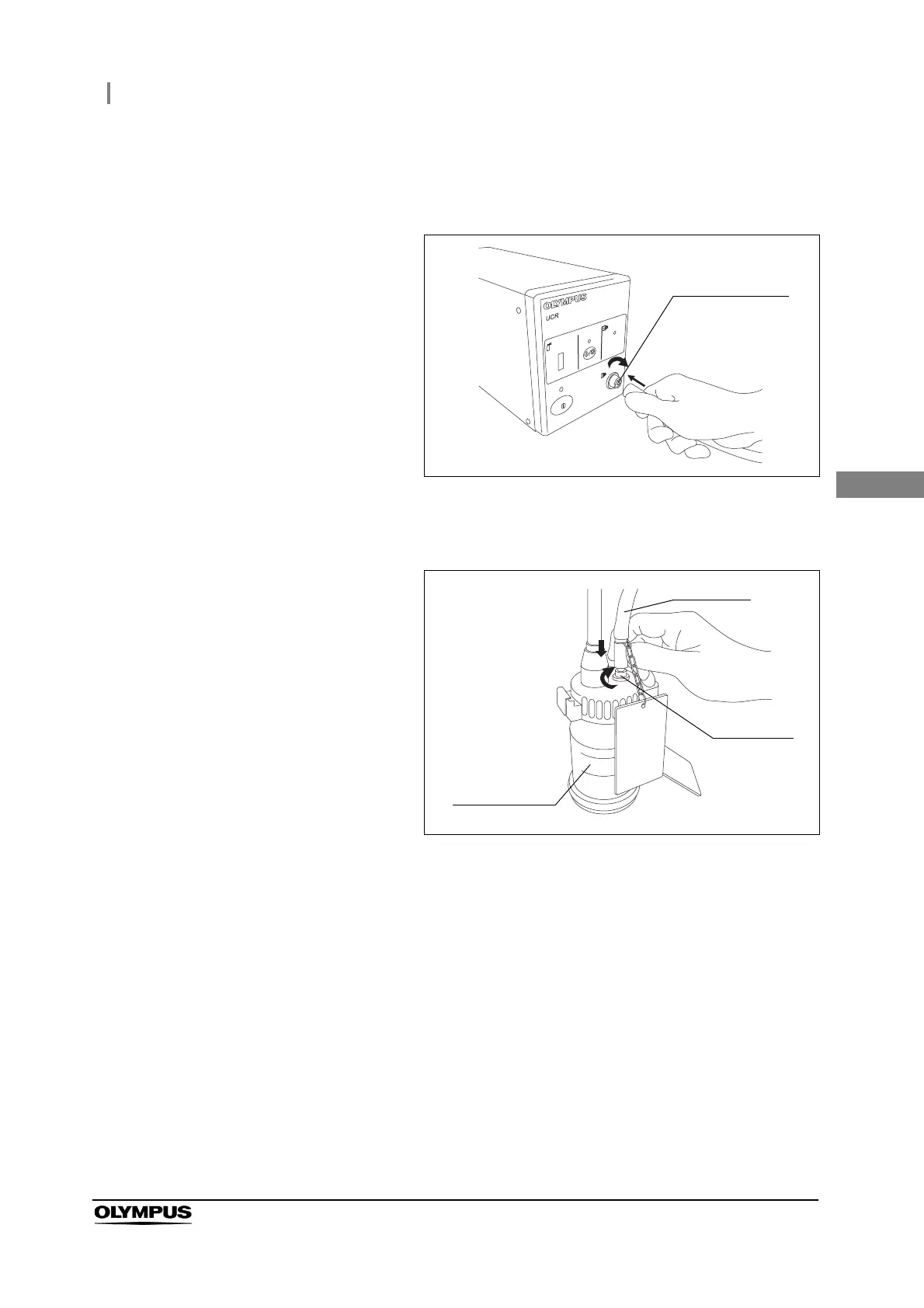

Figure 3.7
2 Connect the other connector of the gas tube to the connector of the water container
(MAJ-902) by turning it clockwise.
Figure 3.8
Water
container
Connector
Gas tube
