Page 26 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
6.15 Power cable replacement
The power cable (item 58) may be replaced while the transformer is within the workstation.
(1) Disconnect from mains power supply.
(2) Disconnect the power cable from the transformer.
(3) Disconnect output cables.
(4) Refer to Figure 6-10. Using a short No 2 Pozidrive screwdriver release the four screws from cable clamps.

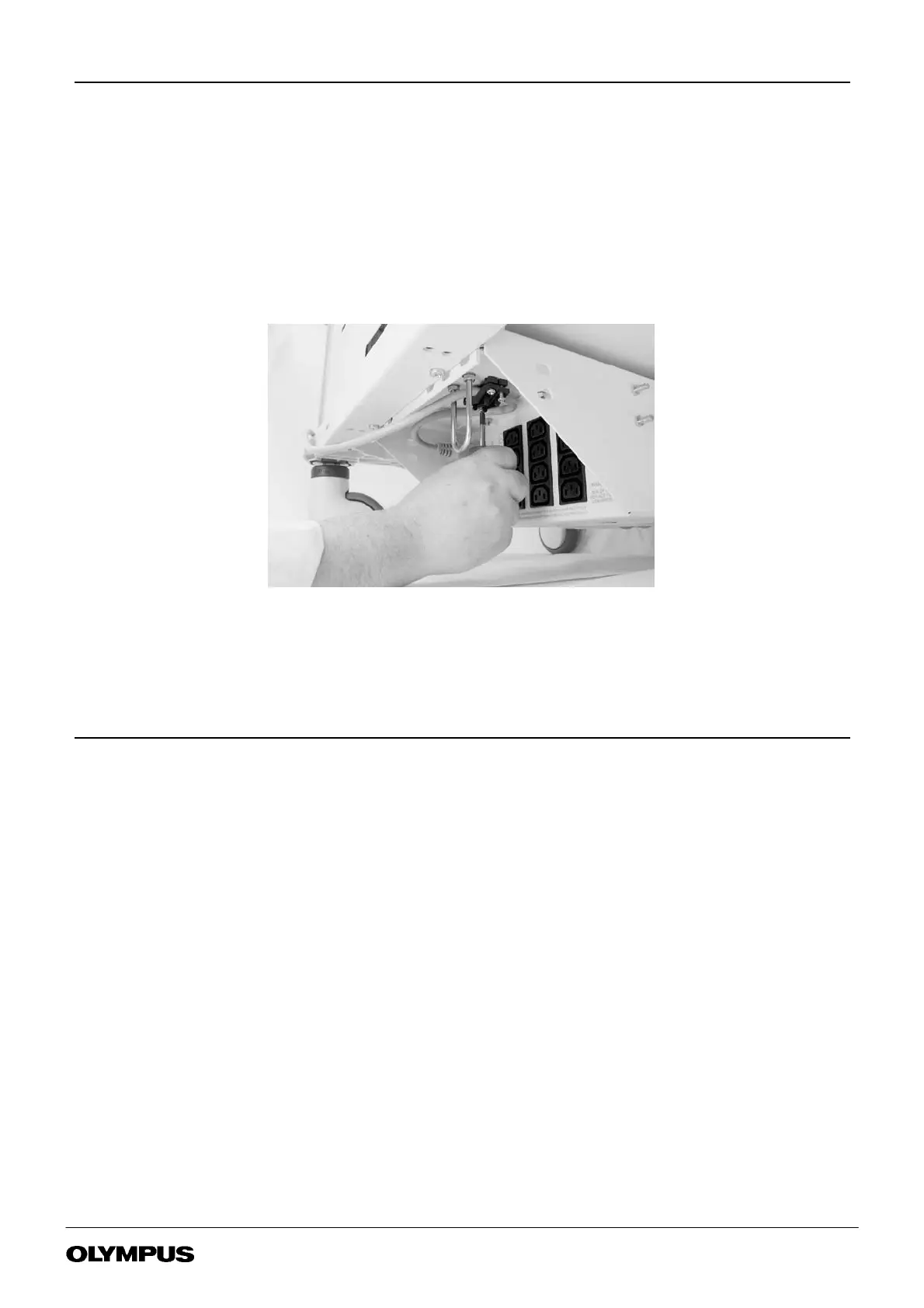

FIGURE 6-10
POWER CABLE CLAMP
(5) Position a new power cable to ensure that the input connector cable end is 30cm from the clamp.
(6) Tighten one clamp sufficient to ensure that a firm pull on the power cable is not trasmitted to the loop between the clamp
and the input connector. Tighten the second clamp a similar amount to the first.
6.16 Separation Transformer replacement
Refer to Transformers for Mobile Wor kstations Maintenance & Repair Manual part no: K5070505
CAUTION
The Separation Transformer weighs up to 30 kg, take care when lifting.
It is recommended that two people are involved in the disassembly and reassembly of the Separation Transformer.
